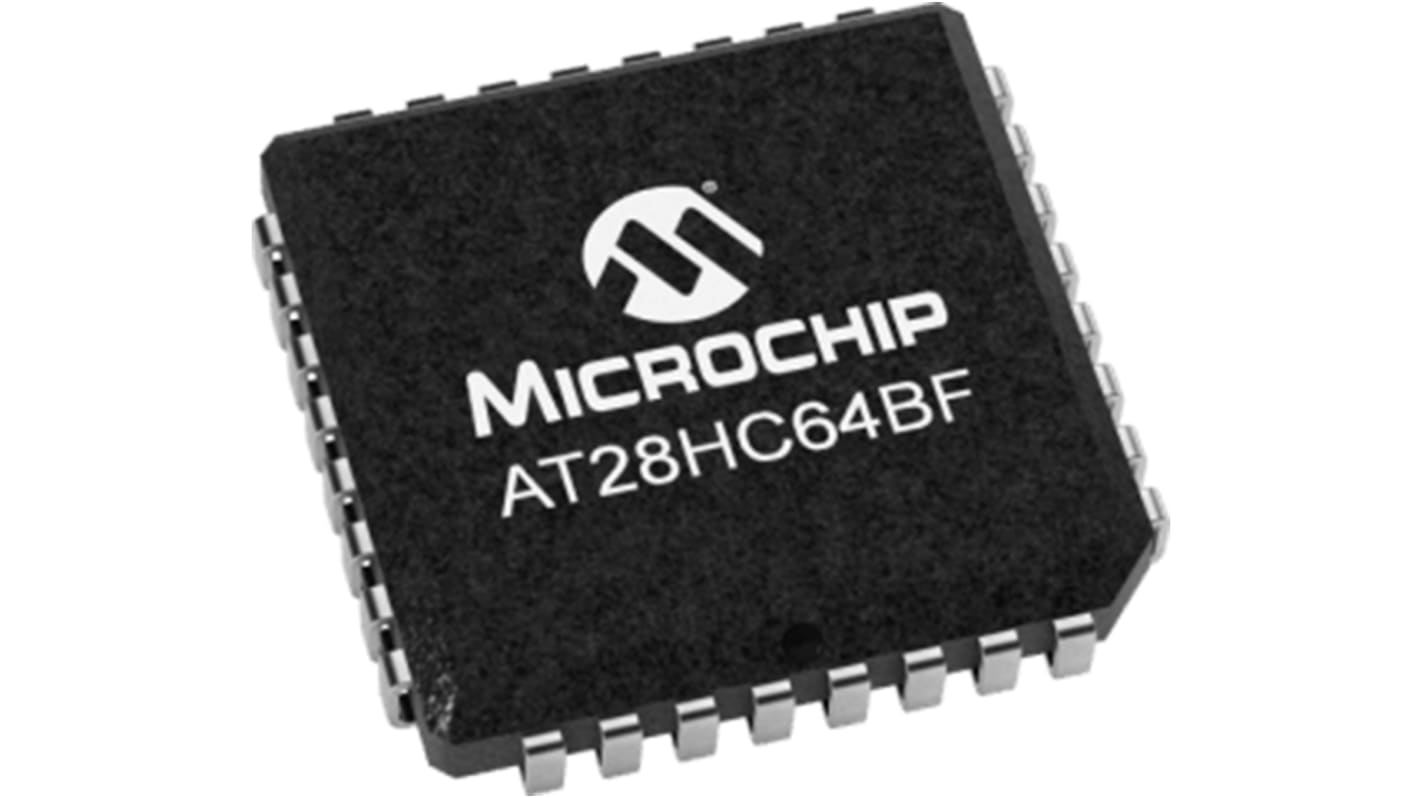

Microchip AT28HC64BF-12JU, 64kbit Parallel EEPROM Memory, 120ns 32-Pin PLCC Parallel

View all EEPROM
Bulk discount available

Subtotal (1 tube of 32 units)*

£132.48

(exc. VAT)

£159.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 64 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
32 - 96£4.14£132.48
128 +£4.037£129.18

*price indicative

RS Stock No.:
177-1464
Mfr. Part No.:
AT28HC64BF-12JU
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Memory Size

64kbit

Interface Type

Parallel

Package Type

PLCC

Mounting Type

Surface Mount

Pin Count

32

Organisation

8K x 8 bit

Minimum Operating Supply Voltage

4.5 V

Maximum Operating Supply Voltage

5.5 V

Programming Voltage

4.5 → 5.5V

Number of Bits per Word

8bit

Dimensions

11.5 x 14.04 x 3.17mm

Minimum Operating Temperature

-40 °C

Number of Words

8K

Data Retention

10yr

Maximum Random Access Time

120ns

Maximum Operating Temperature

+85 °C

COO (Country of Origin):
TW
The Microchip AT28HC64BF is a high-performance 64Kbit Parallel EEPROM offering access times to 55ns with power dissipation of 220mW. Deselected, CMOS standby current is less than 100μA. Accessed like static RAM for the read or write cycle without external components, it contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. Optional Software Data Protection mechanism guards against inadvertent writes, and an extra 64 bytes of EEPROM enables device identification or tracking.

Additional Features:
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time Self-Timed Erase and Write Cycles
Page Write and Byte Write
Data Polling for end of write detection
2 ms Maximum Option
Low Power Consumption:
Read / Write current 40 mA (Max)
Standby current TTL 2 mA (Max), CMOS 100 μA (Max)
Write-Protection
Hardware Protection
Software Data Protect
More than 100,000 erase/write cycles
Data retention > 10 years
