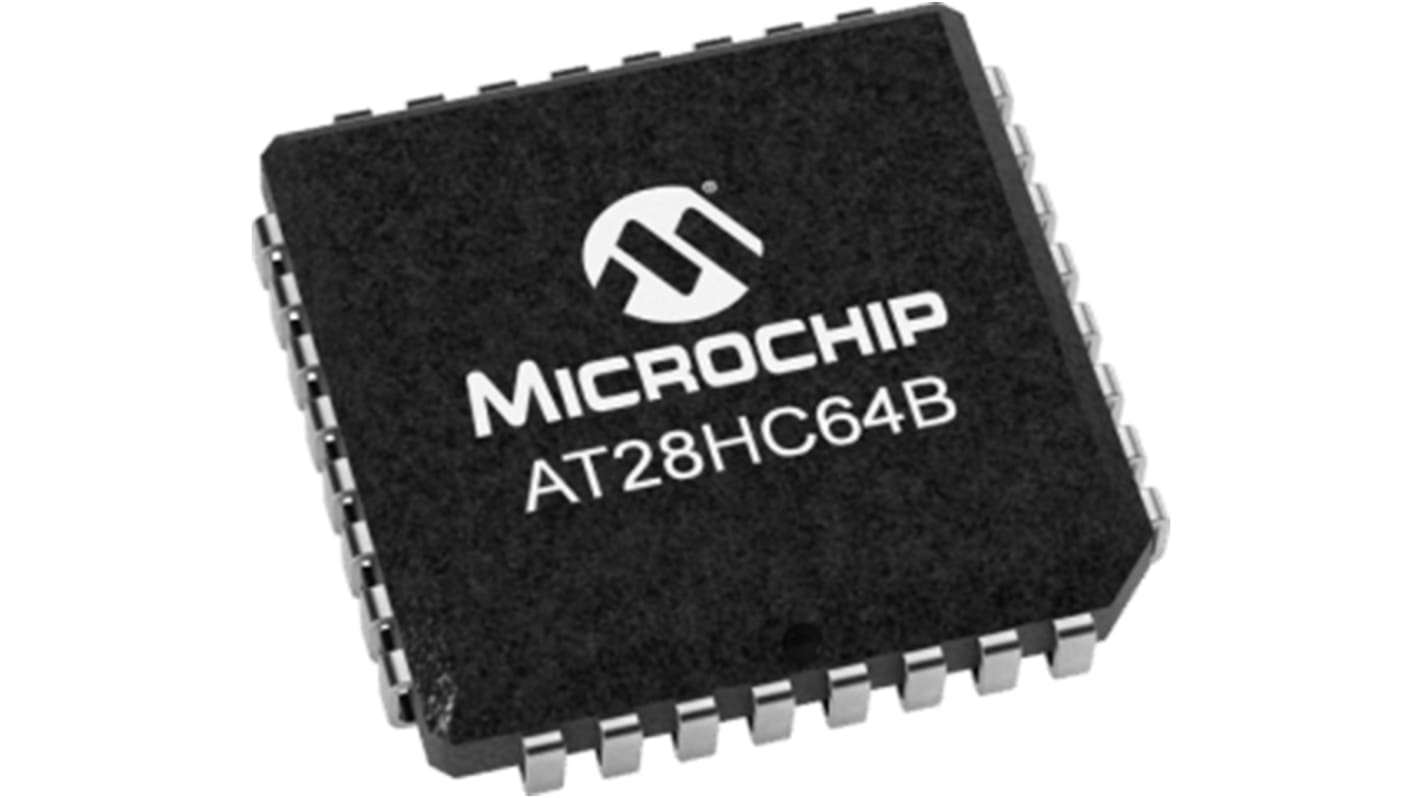

Microchip AT28HC64B-70JU, 64kbit Parallel EEPROM Memory, 70ns 32-Pin PLCC Parallel
- RS Stock No.:
- 177-1463
- Mfr. Part No.:
- AT28HC64B-70JU
- Brand:
- Microchip
Save 2% when you buy 128 units
Subtotal (1 tube of 32 units)*
£168.00
(exc. VAT)
£201.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 32 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
32 - 96 | £5.25 | £168.00 |
128 + | £5.119 | £163.81 |
*price indicative
- RS Stock No.:
- 177-1463
- Mfr. Part No.:
- AT28HC64B-70JU
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Memory Size | 64kbit | |
Interface Type | Parallel | |
Package Type | PLCC | |
Mounting Type | Surface Mount | |
Pin Count | 32 | |
Organisation | 8K x 8 bit | |
Minimum Operating Supply Voltage | 4.5 V | |
Maximum Operating Supply Voltage | 5.5 V | |
Programming Voltage | 4.5 → 5.5V | |
Number of Bits per Word | 8bit | |
Dimensions | 11.5 x 14.04 x 3.17mm | |
Number of Words | 8K | |
Maximum Operating Temperature | +85 °C | |
Maximum Random Access Time | 70ns | |
Data Retention | 10yr | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Microchip | ||
Memory Size 64kbit | ||
Interface Type Parallel | ||
Package Type PLCC | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Organisation 8K x 8 bit | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Programming Voltage 4.5 → 5.5V | ||
Number of Bits per Word 8bit | ||
Dimensions 11.5 x 14.04 x 3.17mm | ||
Number of Words 8K | ||
Maximum Operating Temperature +85 °C | ||
Maximum Random Access Time 70ns | ||
Data Retention 10yr | ||
Minimum Operating Temperature -40 °C | ||
The Microchip AT28HC64B is a high-performance 64Kbit Parallel EEPROM offering access times to 55ns with power dissipation of 220mW. Deselected, CMOS standby current is less than 100μA. Accessed like static RAM for the read or write cycle without external components, it contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. Optional Software Data Protection mechanism guards against inadvertent writes, and an extra 64 bytes of EEPROM enables device identification or tracking.
Additional Features:
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time
Self-Timed Erase and Write Cycles (10 ms max)
Page Write and Byte Write
8 Kbits x 8 (64 Kbit)
5 V ±10% Supply
Parallel Interface
70ns access time
Self-Timed Erase and Write Cycles (10 ms max)
Page Write and Byte Write
