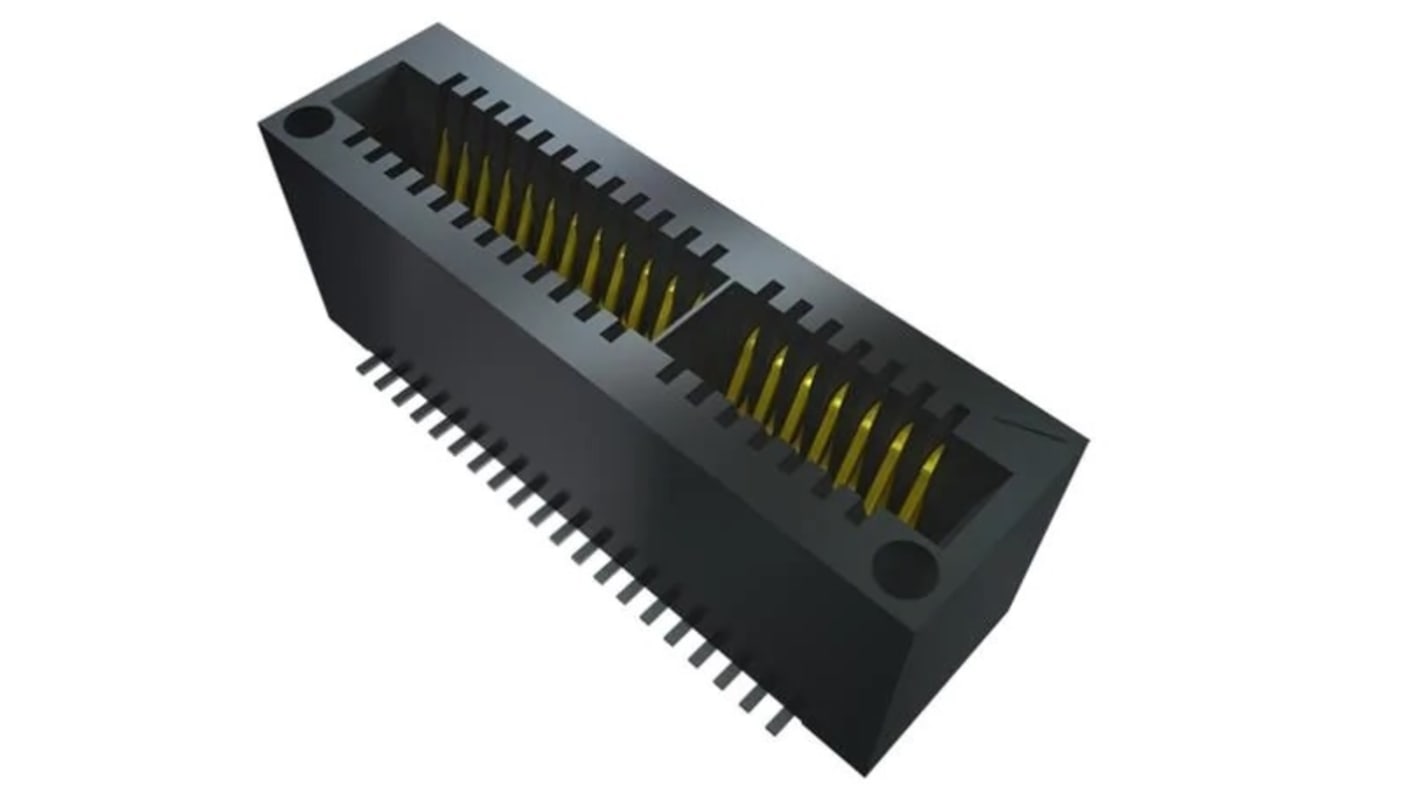

Samtec MEC1 Series Vertical Male Edge Connector, Surface Mount, 40-Contacts, 1mm Pitch, 2-Row
- RS Stock No.:
- 227-1471
- Mfr. Part No.:
- MEC1-120-02-L-D-A-K-TR
- Brand:
- Samtec
Available to back order for despatch 29/05/2024
Added
Price Each (On a Reel of 200)
£5.076
(exc. VAT)
£6.091
(inc. VAT)
| Units | Per unit | Per Reel* |
| 200 + | £5.076 | £1,015.20 |
| *price indicative | ||
- RS Stock No.:
- 227-1471
- Mfr. Part No.:
- MEC1-120-02-L-D-A-K-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec MEC1 series mini edge card socket has 20 positions per row and 2 lead style. It has 0.000254mm light selective gold in contact area and matte tin on tail.
Dual row
Alignment pin
Polyimide film pick & place pad
Tape and reel packaging
Alignment pin
Polyimide film pick & place pad
Tape and reel packaging
Done
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Vertical |
| Gender | Male |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Pitch | 1mm |
| Mounting Type | Surface Mount |
| Current Rating | 2.2A |
| Series | MEC1 |
