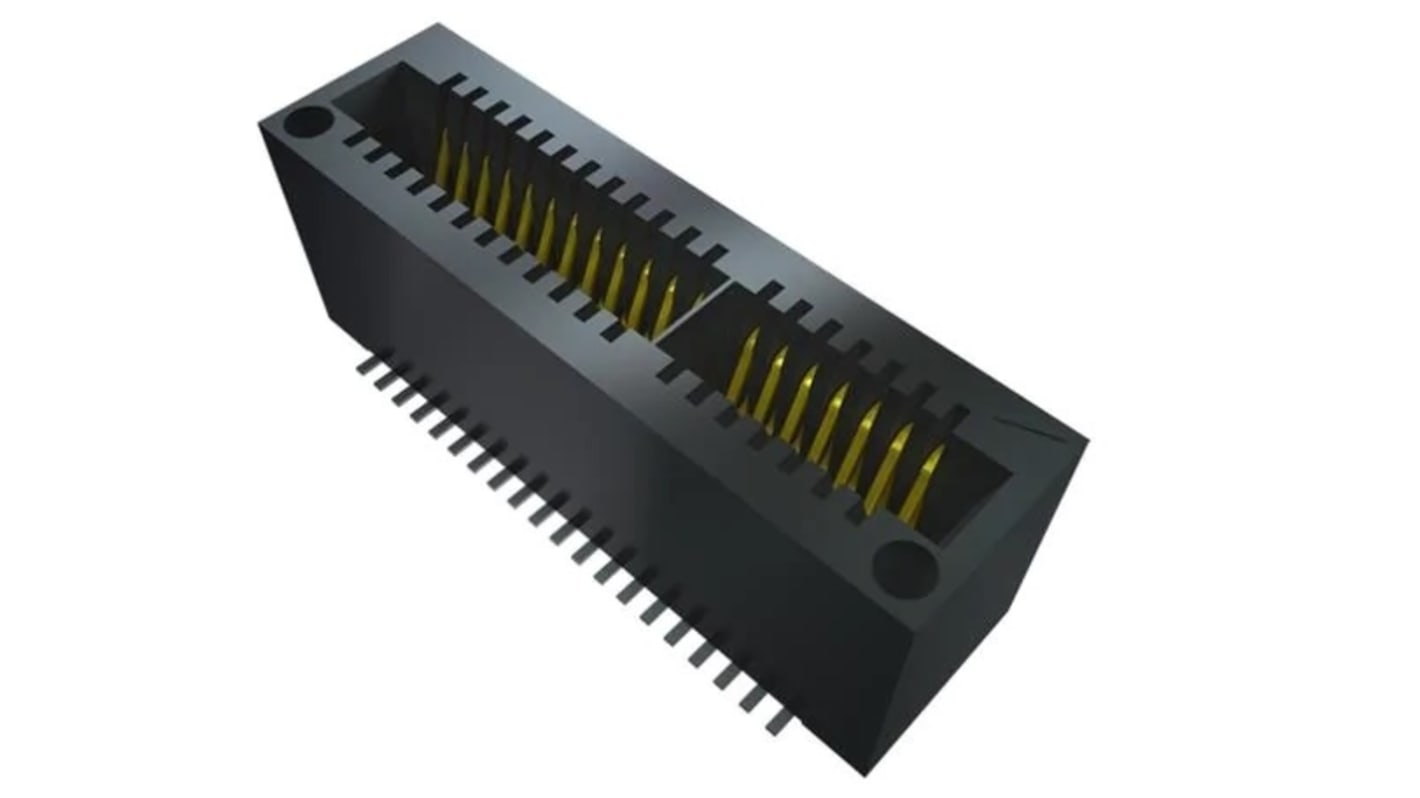

Samtec MEC1 Series Vertical Male Edge Connector, Surface Mount, 120-Contacts, 1mm Pitch, 2-Row

RS Stock No.:: 227-1482
Mfr. Part No.:: MEC1-160-02-L-D-A-K-TR
Brand:: Samtec

Samtec MEC1 Series Vertical Male Edge Connector, Surface Mount, 120-Contacts, 1mm Pitch, 2-Row

Available to back order for despatch 21/05/2024

Added

Price Each (On a Reel of 150)

£5.931

(exc. VAT)

£7.117

(inc. VAT)

Units	Per unit	Per Reel*
150 +	£5.931	£889.65
*price indicative

RS Stock No.:: 227-1482
Mfr. Part No.:: MEC1-160-02-L-D-A-K-TR
Brand:: Samtec

Technical Reference

Datasheet - MEC1-160-02-L-D-A-K-TR

Legislation and Compliance

Product Details

The Samtec MEC1 series mini edge card socket has 60 positions per row and 2 lead style. It has 0.000254mm light selective gold in contact area and matte tin on tail.

Dual row
Alignment pin
Polyimide film pick & place pad
Tape and reel packaging

Done

Specifications

Attribute	Value
Body Orientation	Vertical
Gender	Male
Number of Contacts	120
Number of Rows	2
Pitch	1mm
Mounting Type	Surface Mount
Current Rating	2.2A
Series	MEC1
