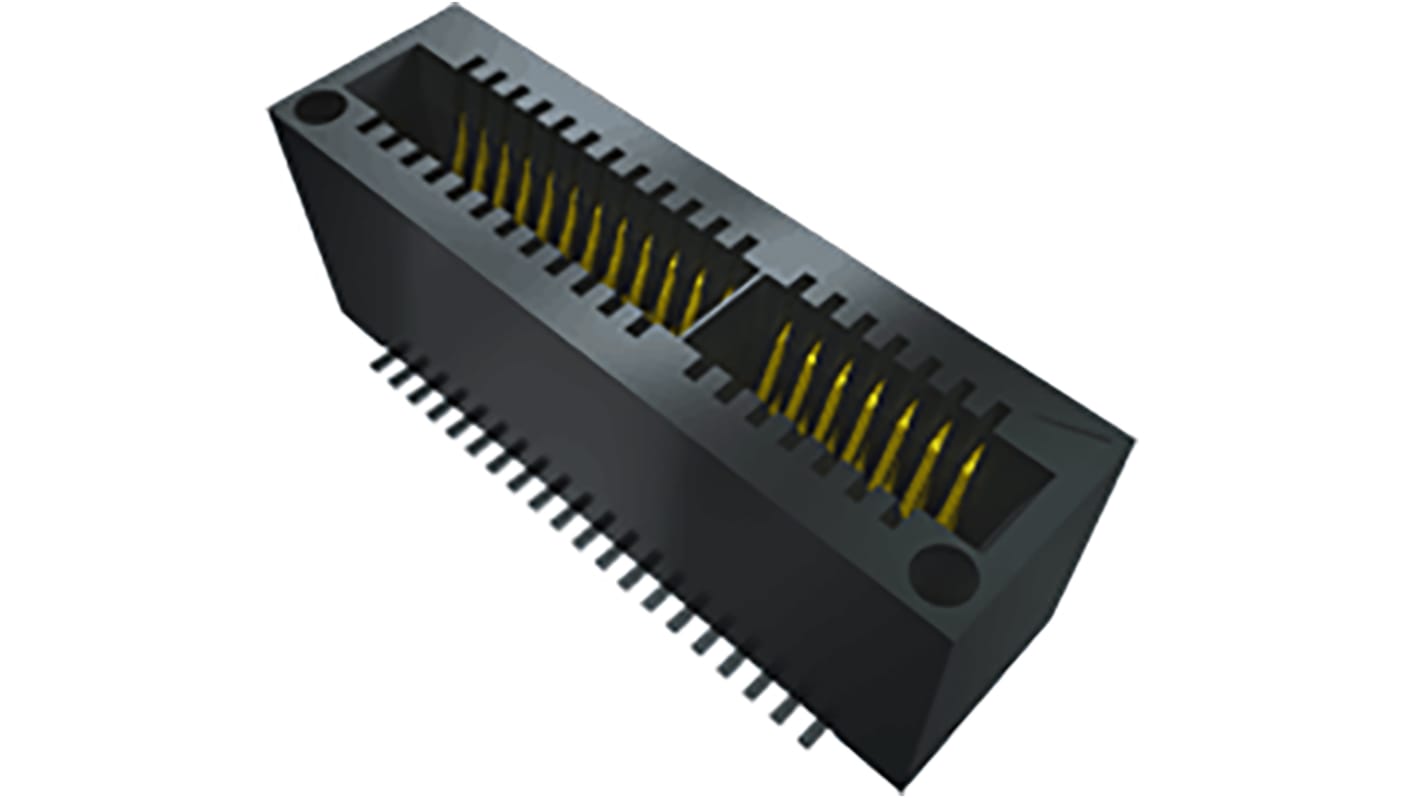

Samtec MEC1 Series Vertical Female Edge Connector, Surface Mount, 10-Contacts, 1mm Pitch, 2-Row, Solder Termination

RS Stock No.:: 179-8992
Mfr. Part No.:: MEC1-105-02-S-D-A
Brand:: Samtec

Samtec MEC1 Series Vertical Female Edge Connector, Surface Mount, 10-Contacts, 1mm Pitch, 2-Row, Solder Termination

Available to back order for despatch 15/08/2024

Price Each

£7.05

(exc. VAT)

£8.46

(inc. VAT)

Units	Per unit
1 - 24	£7.05
25 - 99	£6.52
100 - 249	£6.08
250 - 499	£5.70
500 +	£5.36

RS Stock No.:: 179-8992
Mfr. Part No.:: MEC1-105-02-S-D-A
Brand:: Samtec

Datasheet

Attribute	Value
Body Orientation	Vertical
Gender	Female
Number of Contacts	10
Number of Rows	2
Pitch	1mm
Mounting Type	Surface Mount
Termination Method	Solder
Contact Plating	Gold
Contact Material	Beryllium Copper
Current Rating	2.2A
Voltage Rating	300 V ac
Housing Material	Liquid Crystal Polymer
Series	MEC1
Minimum Operating Temperature	-55°C
Length	9.54mm
Maximum Operating Temperature	+125°C
Depth	8.89mm
Width	6.99mm

Samtec MEC1 Series Vertical Female Edge Connector, Surface Mount, 10-Contacts, 1mm Pitch, 2-Row, Solder Termination
