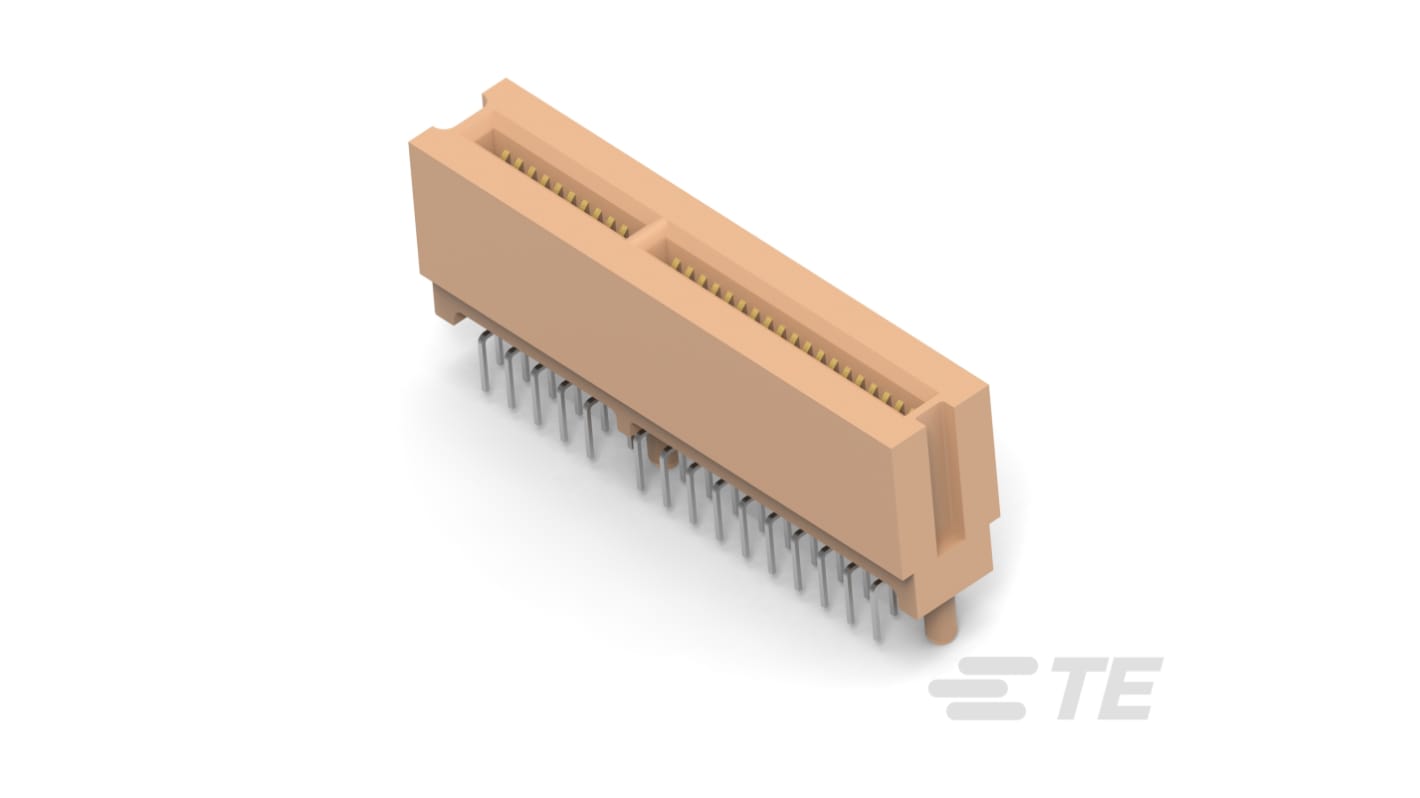

TE Connectivity 1-5650090-2 Series Vertical Edge Connector Female, Board, 60-Contacts, 1.27 mm Pitch, 2 Row, Solder
- RS Stock No.:
- 503-999
- Distrelec Article No.:
- 304-62-916
- Mfr. Part No.:
- 1-5650090-2
- Brand:
- TE Connectivity
Subtotal (1 box of 70 units)*
£224.69
(exc. VAT)
£269.63
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £224.69 | £3.21 |
*price indicative
- RS Stock No.:
- 503-999
- Distrelec Article No.:
- 304-62-916
- Mfr. Part No.:
- 1-5650090-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Orientation | Vertical | |
| Product Type | Edge Connector | |
| Current | 1A | |
| Number of Contacts | 60 | |
| Number of Rows | 2 | |
| Connector Gender | Female | |
| Pitch | 1.27mm | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Card Thickness | 1.78mm | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 85°C | |
| Voltage | 203V | |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | |
| Housing Material | High Temperature Thermoplastic | |
| Series | 1-5650090-2 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Orientation Vertical | ||
Product Type Edge Connector | ||
Current 1A | ||
Number of Contacts 60 | ||
Number of Rows 2 | ||
Connector Gender Female | ||
Pitch 1.27mm | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Card Thickness 1.78mm | ||
Contact Gender Female | ||
Maximum Operating Temperature 85°C | ||
Voltage 203V | ||
Standards/Approvals EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | ||
Housing Material High Temperature Thermoplastic | ||
Series 1-5650090-2 | ||
The TE Connectivity board-to-board connector is designed to offer reliable and efficient connectivity solutions for various electronic applications. With a robust design and high-quality thermoplastic housing, this product ensures durability and optimum performance even in harsh environments. It features a 60-position arrangement with a compact 1.27 mm centreline spacing, allowing for tight configurations without compromising on performance. The dual-position capability supports flexibility in design, while its vertical PCB mount orientation optimises space utilisation. This connector is ideal for applications requiring high reliability and efficient signal transmission, making it a preferred choice for designers and engineers in the electronics industry.
Robust construction for reliable performance in demanding conditions
Dual-position feature allows for flexible circuit configurations
Designed with high temperature thermoplastic for enhanced durability
Vertical mount orientation optimally utilises PCB space
Suitable for both signal and power applications
Nickel underplating enhances the durability of contact materials
Bright finish plating for improved conductivity and performance
Wave solder capable for ease of assembly
Compliant with various environmental directives for safe use
