Dormer HSS, 214mm Overall 13.5 mm
- RS Stock No.:
- 268-6488
- Mfr. Part No.:
- A11013.5
- Brand:
- Dormer
Subtotal (1 unit)*
£53.22
(exc. VAT)
£63.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.22 |
*price indicative
- RS Stock No.:
- 268-6488
- Mfr. Part No.:
- A11013.5
- Brand:
- Dormer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dormer | |
| Product Type | Drill Bit | |
| Material | HSS | |
| Flute Type | Spiral | |
| Overall Length | 214mm | |
| Shank Type | Straight | |
| Cutting Direction | Right | |
| Drill Point Angle | 135° | |
| Drill Bit Size | 13.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Dormer | ||
Product Type Drill Bit | ||
Material HSS | ||
Flute Type Spiral | ||
Overall Length 214mm | ||
Shank Type Straight | ||
Cutting Direction Right | ||
Drill Point Angle 135° | ||
Drill Bit Size 13.5mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BR

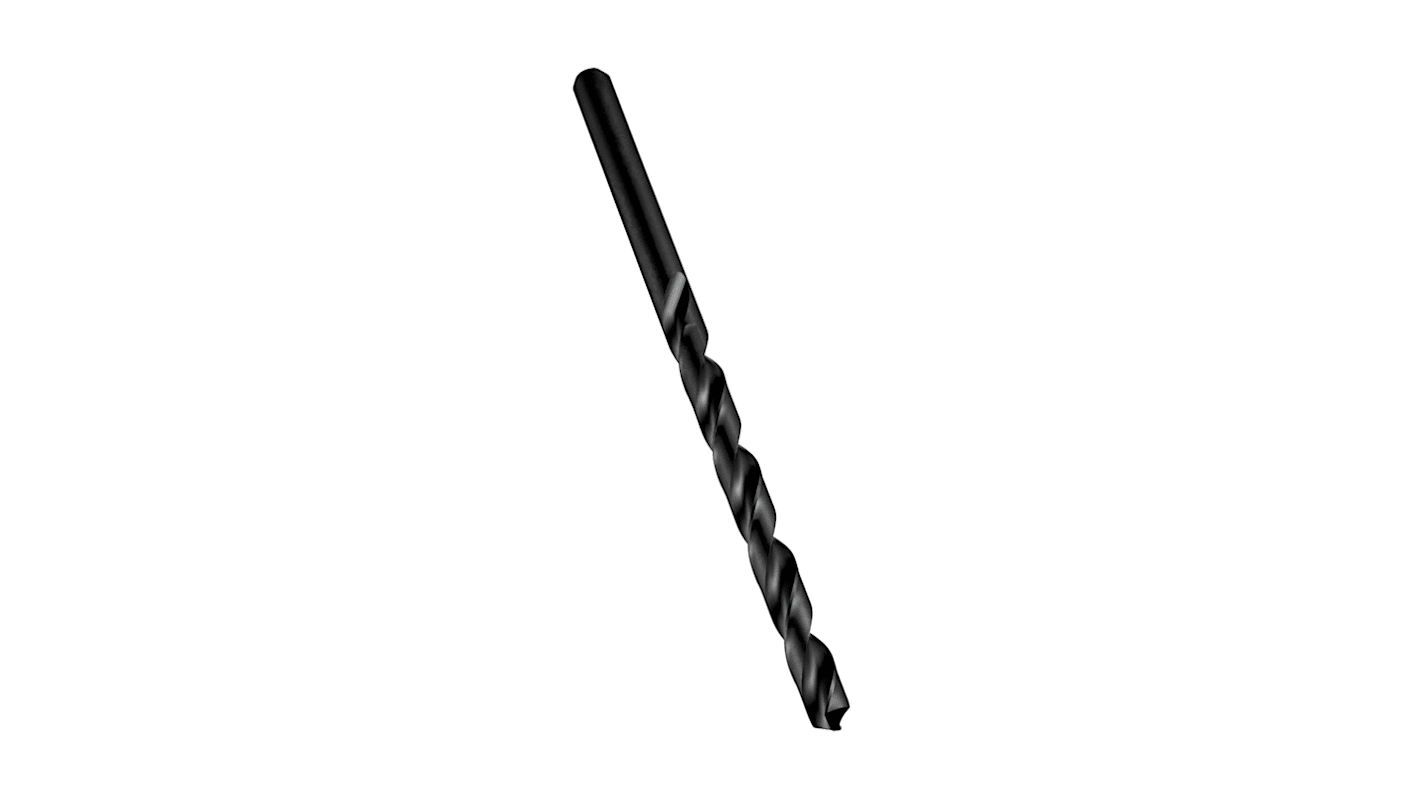

The Dormer Drill Bit is a long series drill with straight shank. It has diameter of 13.5 mm with an overall length of 214 mm and flute length of 140 mm according to DIN 340 standard with 118 degree point angle. The conventional 118 degree point provides strength and means an easy point to regrind. This drill bit HSS with steam tempered finish for 6xD drilling without pecking in steel.
Very cost effective
For drilling deeper holes
Suitable for both hand held and machine drilling
Steam tempered finish retains cutting fluid and prevents chip to tool welding
