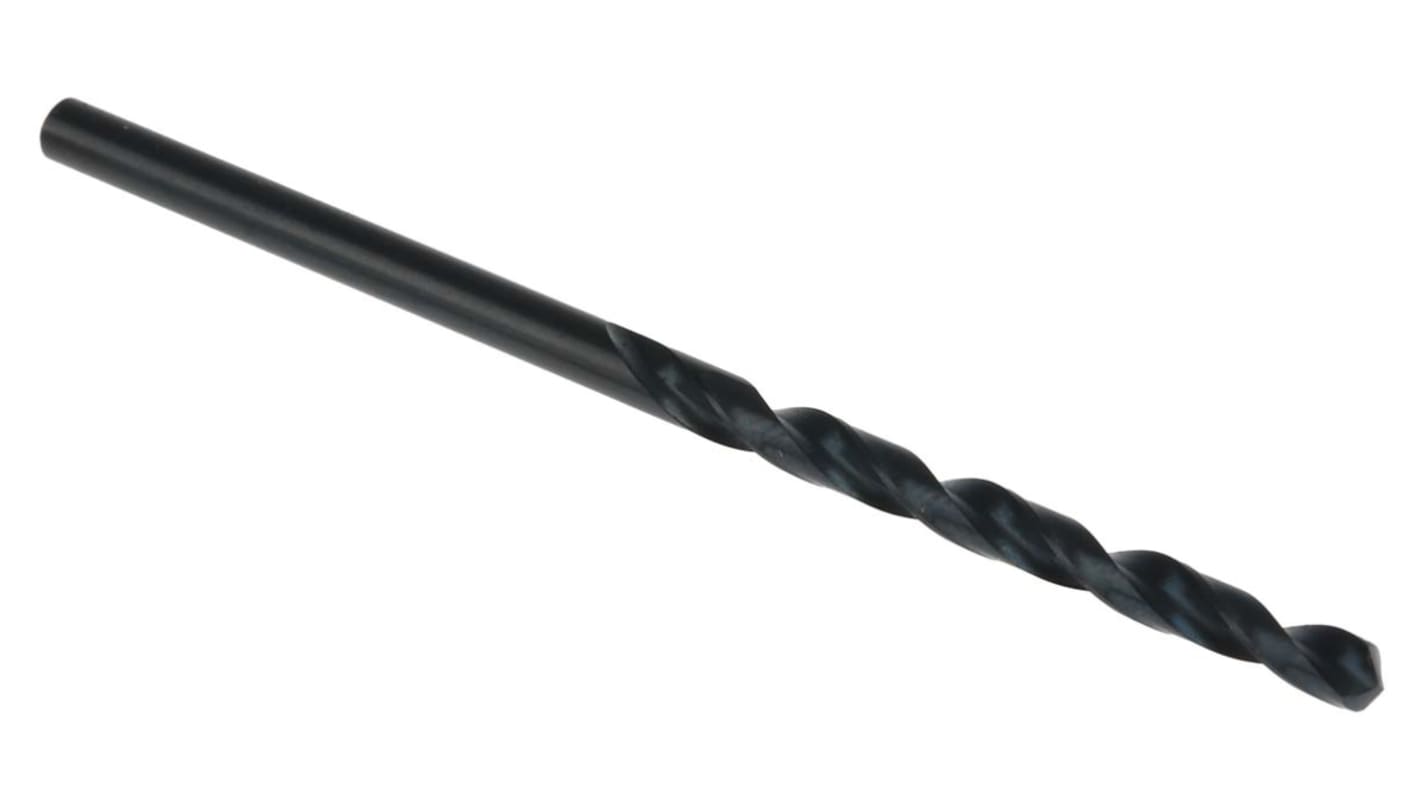

Dormer A100 Series HSS Twist Drill Bit, 2.7mm Diameter, 61 mm Overall

Introducing the series of high-quality HSS Jobber Drill Bits from Dormer. These professional Drill Bits have been manufactured from high-quality steel and steam tempered to improve wear resistance and durability. Drill Bits feature 118° point angle for easy and precise application and a silver ring with size markings for easy identification. Dormer A100 general purpose drills are suitable for both hand and machine use and are ideal for drilling into steels, cast steel, grey cast iron, malleable cast iron, nickel-brass, aluminium alloy and graphite.

Dormer A100 Drill Bits are available in a selection of sizes:
• 1.0mm - 545-806
• 1.2mm - 178-046
• 1.3mm - 178-068
• 1.4mm - 178-080
• 1.5mm - 545-812
• 1.6mm - 545-828
• 1.7mm - 178-125
• 1.8mm - 545-834
• 1.9mm - 178-153
• 2.0mm - 545-840
• 2.1mm - 545-856
• 2.2mm - 806-454
• 2.3mm - 545-862
• 2.4mm - 513-001
• 2.5mm - 545-878
• 2.6mm - 545-884
• 2.7mm - 513-017
• 2.8mm - 513-023
• 2.9mm - 513-039

• Precision ground twist drill bit manufactured to DIN 338
• Heat and wear resistance properties
• Right-hand cutting helix
• 8% cobalt alloyed High-Speed Steel
• 118° point tip angle improves efficiency and eliminates walking
• Excellent for use on steels

• DIN338RN
• BS328
• ISO235

These bits are ideal for fast drilling of a plug, anchor or clearance holes in a number of materials such as steel, plastic, wood, metal etc. This makes it an essential piece of kit to have if you work within the carpentry/construction/engineering industries to save time and money on being able to perform more efficiently when working with stubborn materials.

Can these drill bits be used with any SDS drill?
No, they are standard drills, will not fit into SDS chuck

What does jobber mean?
The word jobber specifies the length of the drill bit. This generally means the length of the entire drill bit itself is significantly longer for diameter it has. As an example, a mechanic drill bit will have a much shorter flute and therefore have a much smaller overall length.

What is HSS?
An acronym for High-speed steel, HSS is generally the go-to type of steel needed for drill bits due to their excellent heat resistance at high speeds. As a standard drill can spin upwards of around 500 - 700rpm, the friction can cause a substantial build-up of heat. Something which would not be wanted when working with wood and plastic.

This high-speed steel twist drill bit manufactured by Dormer is a precision tool designed for metalworking applications. With an overall length of 61mm, this drill bit is a reliable choice for industrial use. The twist design ensures accurate drilling and the durability of high-speed steel makes it suitable for various materials.

• The twist design allows for efficient drilling with precision
• High-speed steel construction provides durability and longevity
• The 2.7mm diameter makes it suitable for precise drilling tasks

• Can be used in precision metalworking
• Suitable for drilling in electronic components
• Ideal for creating precise holes in mechanical parts
• Used in a variety of industrial applications requiring accuracy

Yes, the Dormer twist drill bit is designed to handle various metalworking tasks with precision.

The high-speed steel construction ensures durability and longevity, making it suitable for extended use.

Yes, the precision and accuracy of this drill bit make it ideal for automation applications in the mentioned industries.

BS328; ISO 235; DIN 338 RN
