RS PRO Die Cast Zinc Lockable Door Catches 32 mm
- RS Stock No.:
- 255-5028
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£24.47
(exc. VAT)
£29.36
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.47 |
| 5 - 9 | £23.24 |
| 10 - 29 | £22.03 |
| 30 + | £20.55 |
*price indicative
- RS Stock No.:
- 255-5028
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Compression Latch | |
| Material | Die Cast Zinc | |
| Finish | Painted Black | |
| Lockable | Yes | |
| Spring Loaded | No | |
| Adjustable | Yes | |
| Sub Type | Door Catches | |
| Standards/Approvals | ISO 9001 | |
| Depth | 32mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Compression Latch | ||
Material Die Cast Zinc | ||
Finish Painted Black | ||
Lockable Yes | ||
Spring Loaded No | ||
Adjustable Yes | ||
Sub Type Door Catches | ||
Standards/Approvals ISO 9001 | ||
Depth 32mm | ||
- COO (Country of Origin):
- FR

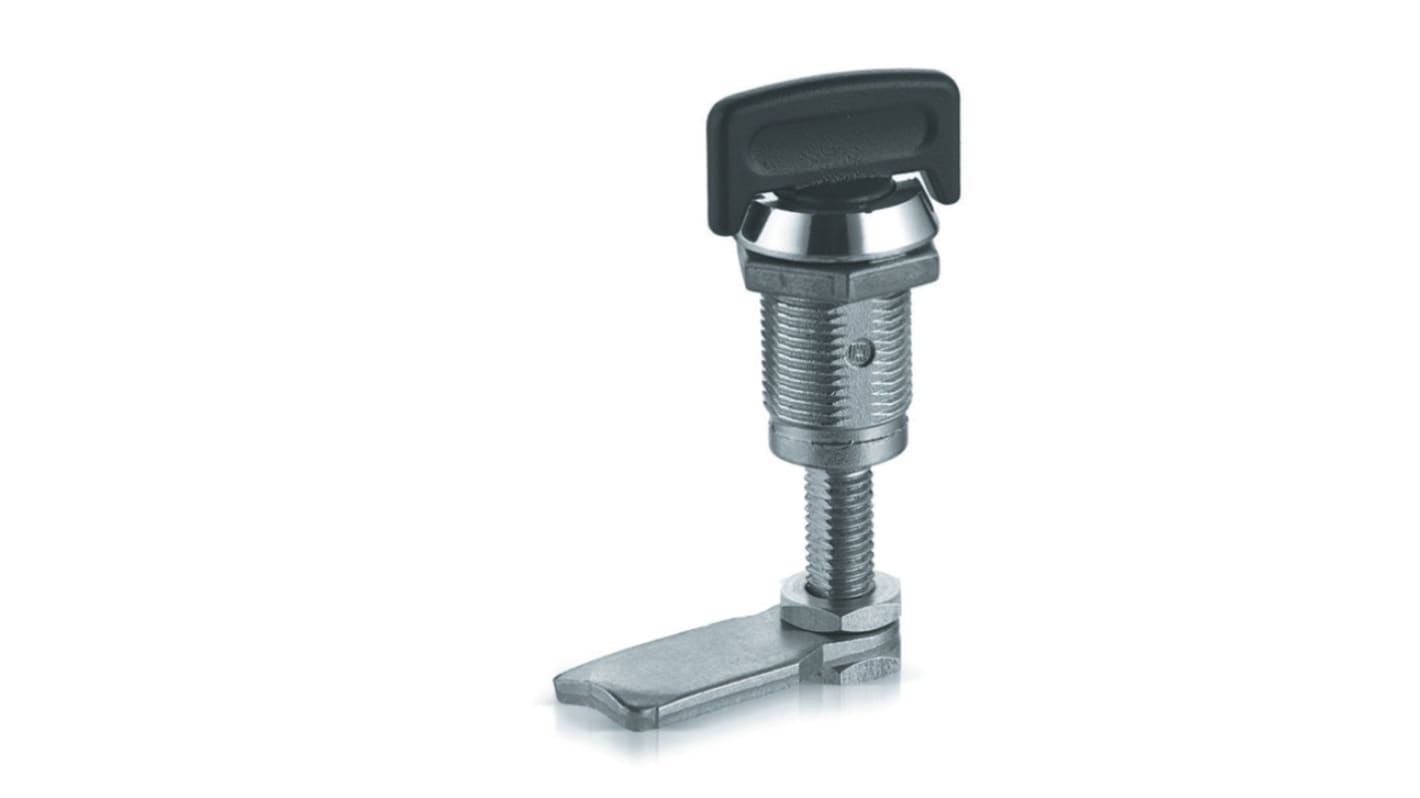

The Savigny compression latch is specifically designed to hold doors and panels shut, while eliminating rattling noises caused by vibration and panel movement. It can provide the force required to compress a gasket to provide sealing against the elements, such as dust and water.
Complete compression latch with 8 mm CHC head
Cut of profile 20 x 22 mm
Round body profile
Cam length 45 mm
Cam type is straight
Used in doors latches
