Southco Die Cast Zinc Lockable Latch 47.5 mm 37.5mm
- RS Stock No.:
- 288-8234
- Mfr. Part No.:
- E3-10-504-50
- Brand:
- Southco
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£30.16
(exc. VAT)
£36.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 40 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £30.16 |
| 5 - 9 | £28.65 |
| 10 - 29 | £27.14 |
| 30 + | £25.33 |
*price indicative
- RS Stock No.:
- 288-8234
- Mfr. Part No.:
- E3-10-504-50
- Brand:
- Southco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Southco | |
| Material | Die Cast Zinc | |
| Product Type | Compression Latch | |
| Lockable | Yes | |
| Adjustable | Yes | |
| Sub Type | Latch | |
| Length | 47.5mm | |
| Standards/Approvals | NEMA 4, IP65, European Fire Test Standard EN45545-2 | |
| Select all | ||
|---|---|---|
Brand Southco | ||
Material Die Cast Zinc | ||
Product Type Compression Latch | ||
Lockable Yes | ||
Adjustable Yes | ||
Sub Type Latch | ||
Length 47.5mm | ||
Standards/Approvals NEMA 4, IP65, European Fire Test Standard EN45545-2 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

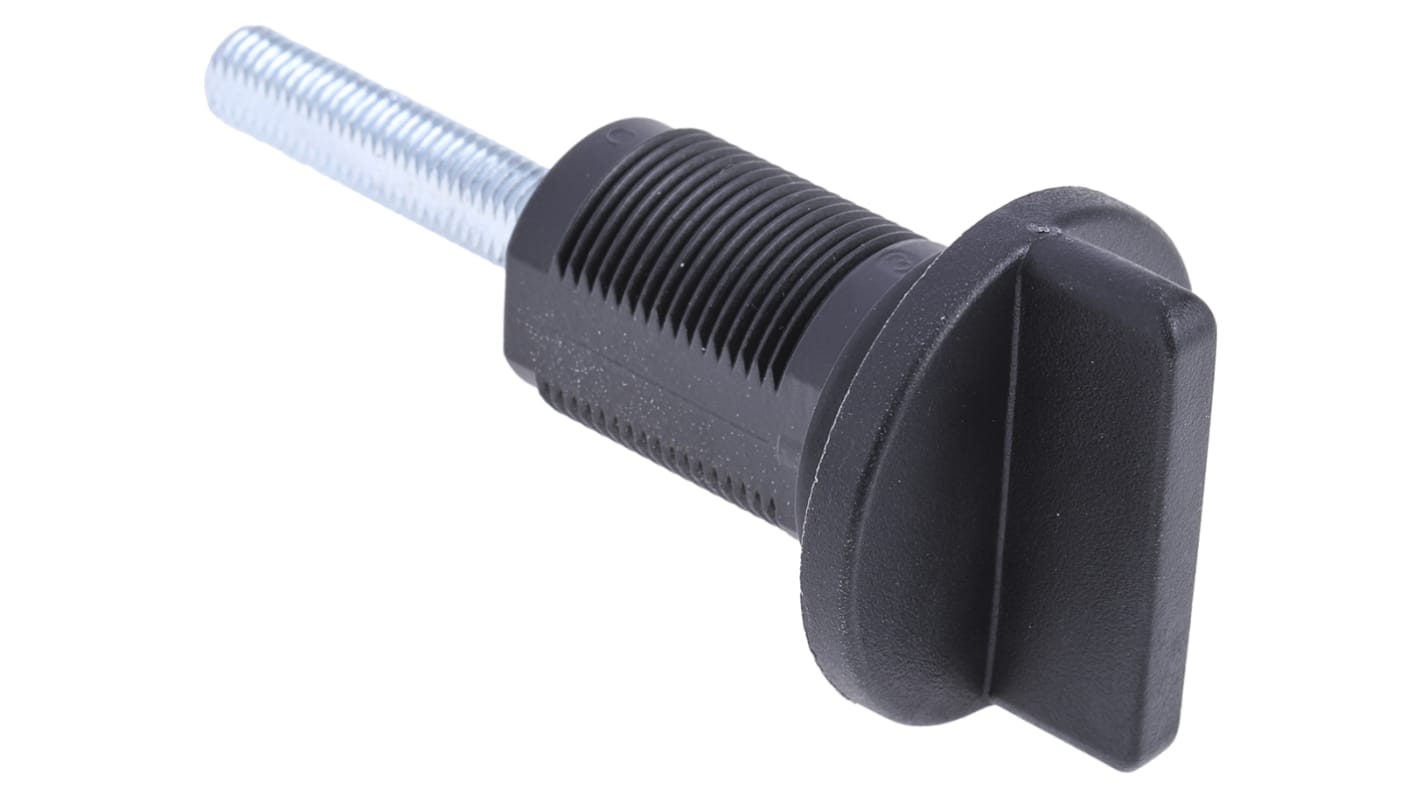

Southco Knob Style Compression Latch
The Southco Vise Action Series knob style compression latch is a cylindrical solution with a single-turn latching and compressing action built into each model. At the heart of it all is our vice action design that has proven itself in millions of installations. This latch has an adjustable grip range from 10mm to 27.2mm or 63.5mm to 79mm with pawl reversed. The simple black acetyl knob does not require a key or special tool to operate. It has a height of 47.5mm, a width of 37.5mm and depth of 22mm.
Features and Benefits
Knob provides quick and unrestricted access
Housing is die cast zinc, black powder coated
Steel, zinc plate, chromate plus sealer jam nuts
Pull up actuation
Single-hole mount, large size
Wider flange for mounting in non-metallic materials
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
