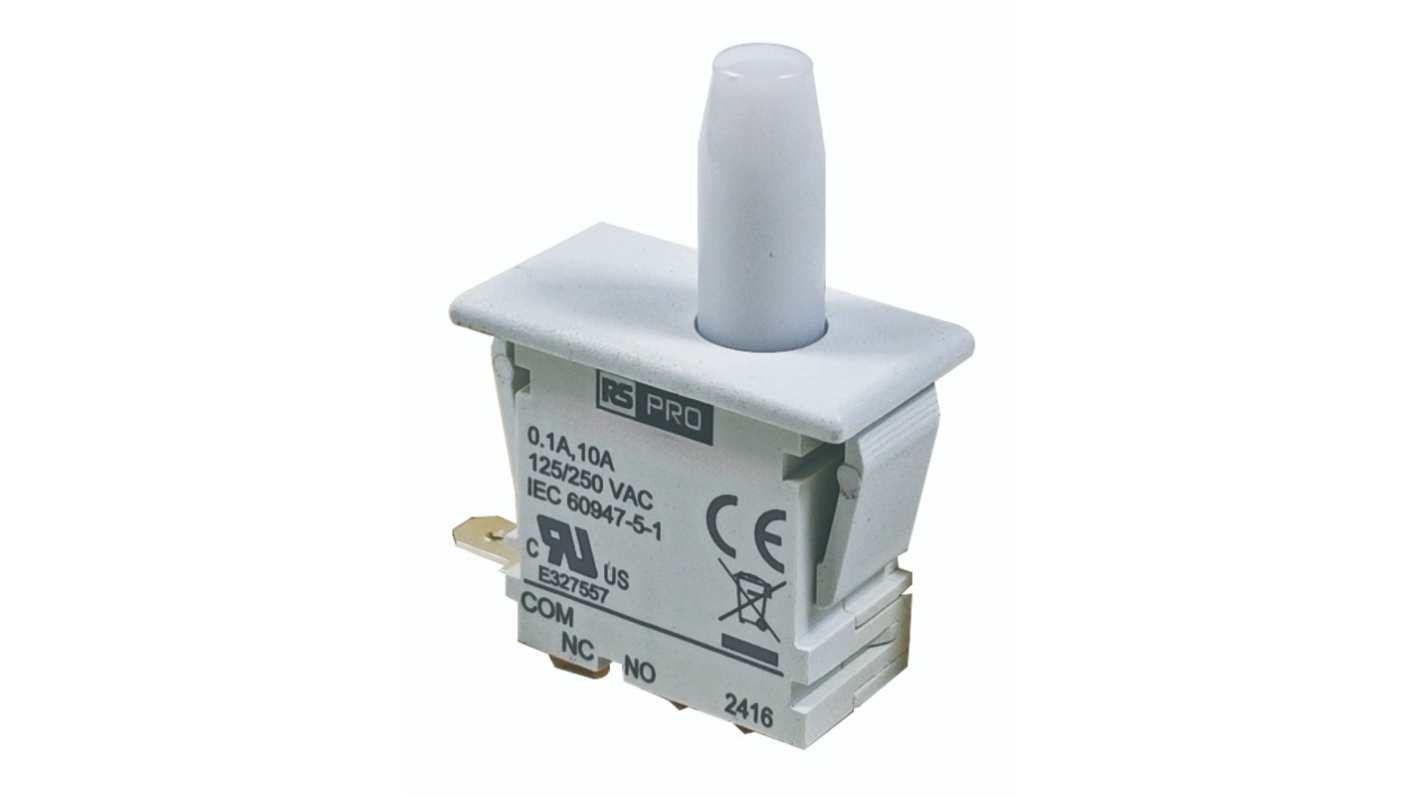

RS PRO Door Interlock Micro Switch, Plunger, SPDT 12A IP40 Glass Fibre Reinforced Plastic, -37 → 85°C
- RS Stock No.:
- 101-961
- Brand:
- RS PRO
Subtotal (1 unit)*
£4.55
(exc. VAT)
£5.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 280 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.55 |
*price indicative
- RS Stock No.:
- 101-961
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Plunger | |
| Contact Configuration | SPDT | |
| Contact Current Rating | 1.2 A, 100 mA | |
| Terminal Type | Quick Connect | |
| IP Rating | IP40 | |
| Case Material | Glass Fibre Reinforced Plastic | |
| Operating Temperature Range | -37 → 85°C | |
| Standards Met | CE, IEC 60947-5-1, UL61058, UL 94 V0 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Plunger | ||
Contact Configuration SPDT | ||
Contact Current Rating 1.2 A, 100 mA | ||
Terminal Type Quick Connect | ||
IP Rating IP40 | ||
Case Material Glass Fibre Reinforced Plastic | ||
Operating Temperature Range -37 → 85°C | ||
Standards Met CE, IEC 60947-5-1, UL61058, UL 94 V0 | ||
- COO (Country of Origin):
- CN
RS PRO Door Interlock Switch, Plunger Actuator, SPDT, 12 A
RS PRO Door Interlock Switches are designed to provide reliable and efficient control in various applications. These switches feature a plunger actuator and are ideal for use in home appliances, door lights, and industrial door interlocking devices. With a robust SPDT contact configuration, they ensure immediate return to the original state upon release, enhancing safety and functionality.
Features and Benefits
Direct Pressure Instantaneous Switch: Ensures immediate return to the original state, enhancing safety and reliability
Standard Quick Connect Terminals: 4.78mm x 0.51mm terminals for efficient and quick installation
Snap-on Panel Mounting Housing: Suitable for panel thicknesses of 1.14 to 2.54mm, reducing installation time
Gold Alloy Contacts: Provides extended electrical endurance and reliability
Meets UL 61058 Requirements: Ensures compliance with safety and performance standards
Standard Quick Connect Terminals: 4.78mm x 0.51mm terminals for efficient and quick installation
Snap-on Panel Mounting Housing: Suitable for panel thicknesses of 1.14 to 2.54mm, reducing installation time
Gold Alloy Contacts: Provides extended electrical endurance and reliability
Meets UL 61058 Requirements: Ensures compliance with safety and performance standards
Applications
Home appliances
Door lights
Door interlocking devices
Indicator circuits
Door lights
Door interlocking devices
Indicator circuits
Additional Information
Key Standards: CE, IEC 60947-5-1, UL61058, UL 94 V0
Operating Temperature Range: -37°C to 85°C
IP Rating: IP40
Mechanical Life: 1,000,000 operations
Contact Configuration: SPDT with a contact current rating of 12 A
Operating Temperature Range: -37°C to 85°C
IP Rating: IP40
Mechanical Life: 1,000,000 operations
Contact Configuration: SPDT with a contact current rating of 12 A
