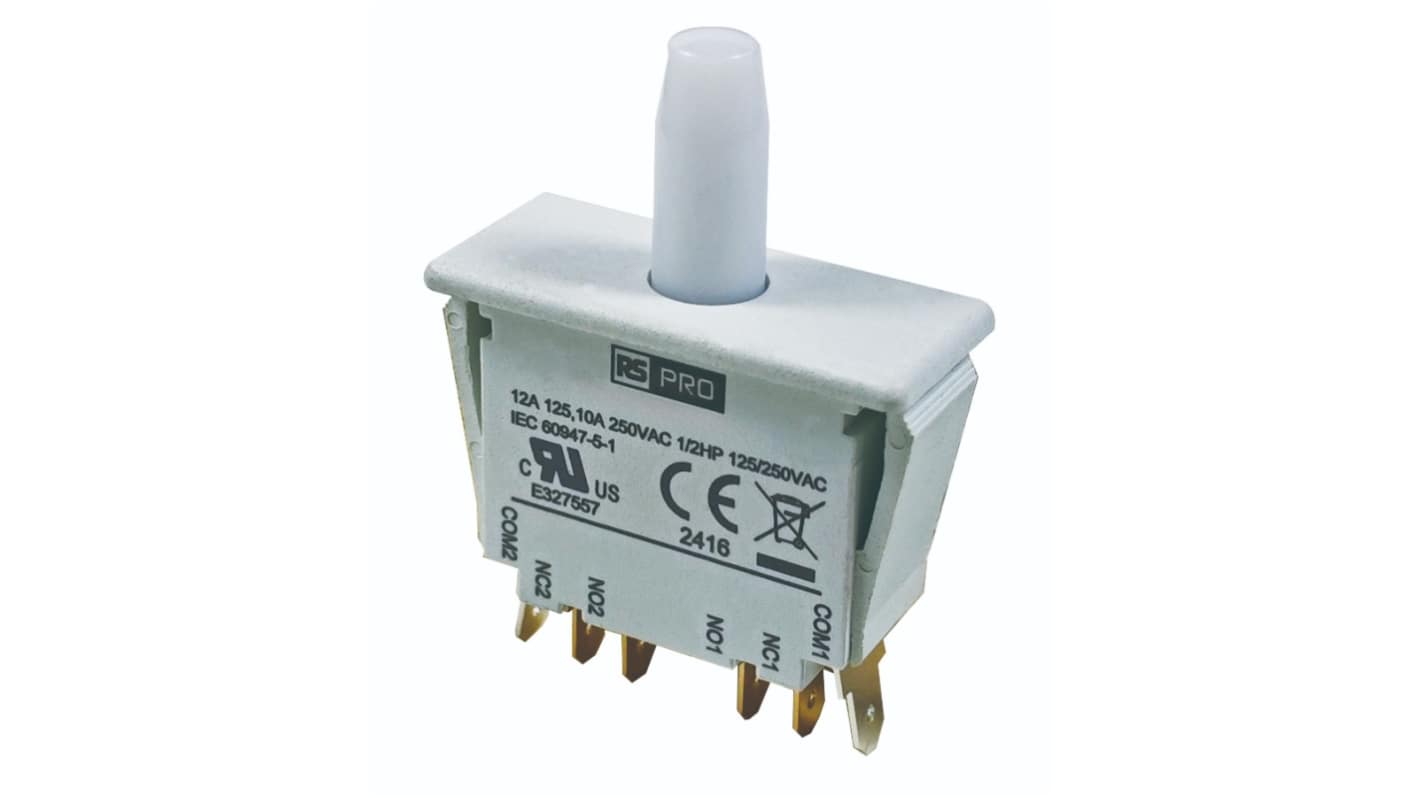

RS PRO Door Interlock Micro Switch, Plunger, DPDT 12A IP40, -37 → 85°C
- RS Stock No.:
- 101-957
- Brand:
- RS PRO
Subtotal (1 unit)*
£5.64
(exc. VAT)
£6.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 740 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.64 |
*price indicative
- RS Stock No.:
- 101-957
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Plunger | |
| Contact Configuration | DPDT | |
| Contact Current Rating | 10 A, 12 A | |
| Terminal Type | Quick Connect | |
| IP Rating | IP40 | |
| Standards Met | CE, IEC 60947-5-1, UL61058, UL 94 V0 | |
| Operating Temperature Range | -37 → 85°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Plunger | ||
Contact Configuration DPDT | ||
Contact Current Rating 10 A, 12 A | ||
Terminal Type Quick Connect | ||
IP Rating IP40 | ||
Standards Met CE, IEC 60947-5-1, UL61058, UL 94 V0 | ||
Operating Temperature Range -37 → 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Door Interlock Switch, Plunger Actuator, DPDT, 12 A
The RS PRO Door Interlock Switch is designed for reliable and efficient operation in various industrial and domestic applications. This switch features a direct pressure instantaneous mechanism, allowing for quick response and reset when the plunger is pressed and released. Ideal for use in home appliances, door lights, and interlocking devices, this switch ensures safety and functionality.
Features and Benefits
Direct Pressure Instantaneous Switch: Provides immediate response and reset for efficient operation
Standard Quick Connect Terminals: Reduces installation time with 4.78mm x 0.51mm terminals
Snap-on Panel Mounting Housing: Suitable for panel thicknesses of 1.14 to 2.54mm, facilitating easy installation
Meets UL 61058 Requirements: Ensures extended electrical endurance for industrial applications
Silver Contacts: Offers reliable conductivity and durability
Compact and Lightweight Design: Allows for easy integration into various systems
Standard Quick Connect Terminals: Reduces installation time with 4.78mm x 0.51mm terminals
Snap-on Panel Mounting Housing: Suitable for panel thicknesses of 1.14 to 2.54mm, facilitating easy installation
Meets UL 61058 Requirements: Ensures extended electrical endurance for industrial applications
Silver Contacts: Offers reliable conductivity and durability
Compact and Lightweight Design: Allows for easy integration into various systems
Applications
Home appliances
Door lights
Door interlocking devices
Indicator circuits
Door lights
Door interlocking devices
Indicator circuits
Additional Information
Key Standards: CE, IEC 60947-5-1, UL61058, UL 94 V0
Mechanical Life: 1,000,000 operations
IP Rating: IP40 for protection against solid objects
Mechanical Life: 1,000,000 operations
IP Rating: IP40 for protection against solid objects
