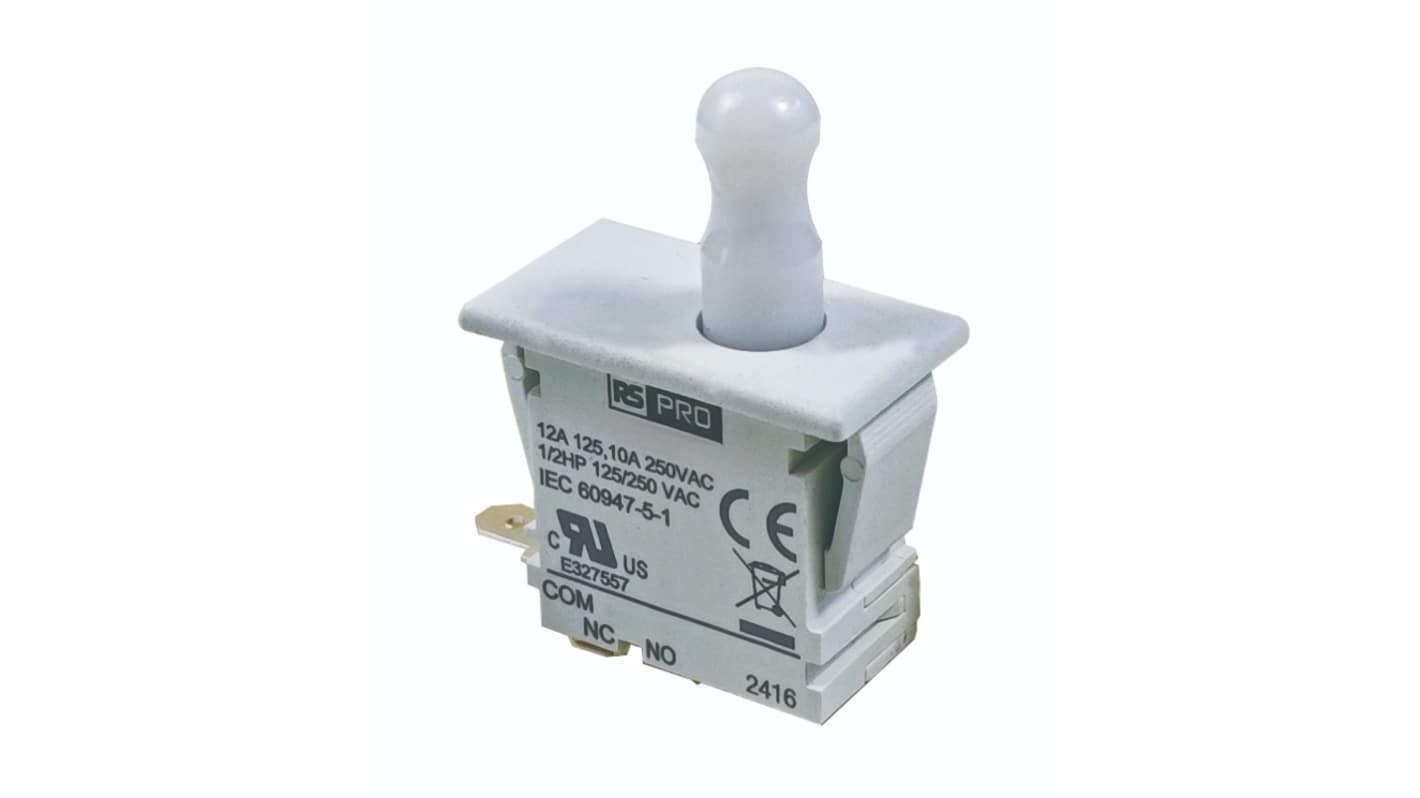

RS PRO Door Interlock Micro Switch, Plunger, SPDT 12A IP40, -37 → 85°C
- RS Stock No.:
- 101-955
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.84
(exc. VAT)
£4.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 345 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.84 |
*price indicative
- RS Stock No.:
- 101-955
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Plunger | |
| Contact Configuration | SPDT | |
| Contact Current Rating | 10 A, 12 A | |
| Terminal Type | Quick Connect | |
| IP Rating | IP40 | |
| Operating Temperature Range | -37 → 85°C | |
| Standards Met | CE, IEC 60947-5-1, UL61058, UL 94 V0 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Plunger | ||
Contact Configuration SPDT | ||
Contact Current Rating 10 A, 12 A | ||
Terminal Type Quick Connect | ||
IP Rating IP40 | ||
Operating Temperature Range -37 → 85°C | ||
Standards Met CE, IEC 60947-5-1, UL61058, UL 94 V0 | ||
- COO (Country of Origin):
- CN
RS PRO Door Interlock Switch, Plunger Actuator, SPDT, 12 A
The RS PRO Door Interlock Switch is designed for reliable and secure operation in various applications. Featuring a plunger actuator, this switch is ideal for use in home appliances, door lights, and industrial door interlocking devices. Its primary benefit is the enhanced safety and control it provides in electrical circuits.
Features and Benefits
Compact and lightweight design: Facilitates easy integration into various systems without adding bulk
Snap-in design: Allows for quick and straightforward installation, saving time and effort
Quick-connect terminals: Reduces installation time and ensures secure connections
Silver contacts: Provides excellent conductivity and durability for extended use
Pull-to-cheat functionality: Offers a maintained-on position for versatile operation
Meets UL 61058 requirements: Ensures compliance with safety standards for industrial applications
Snap-in design: Allows for quick and straightforward installation, saving time and effort
Quick-connect terminals: Reduces installation time and ensures secure connections
Silver contacts: Provides excellent conductivity and durability for extended use
Pull-to-cheat functionality: Offers a maintained-on position for versatile operation
Meets UL 61058 requirements: Ensures compliance with safety standards for industrial applications
Applications
Home appliances
Door lights
Door interlocking devices
Indicator circuits
Door lights
Door interlocking devices
Indicator circuits
Additional Information
Meets CE, IEC 60947-5-1, UL 61058, and UL 94 V0 standards
IP40 rated for protection against solid objects
Mechanical life of 1,000,000 operations ensures long-lasting performance
Suitable for panel thicknesses of 1.14 to 2.54 mm
IP40 rated for protection against solid objects
Mechanical life of 1,000,000 operations ensures long-lasting performance
Suitable for panel thicknesses of 1.14 to 2.54 mm
