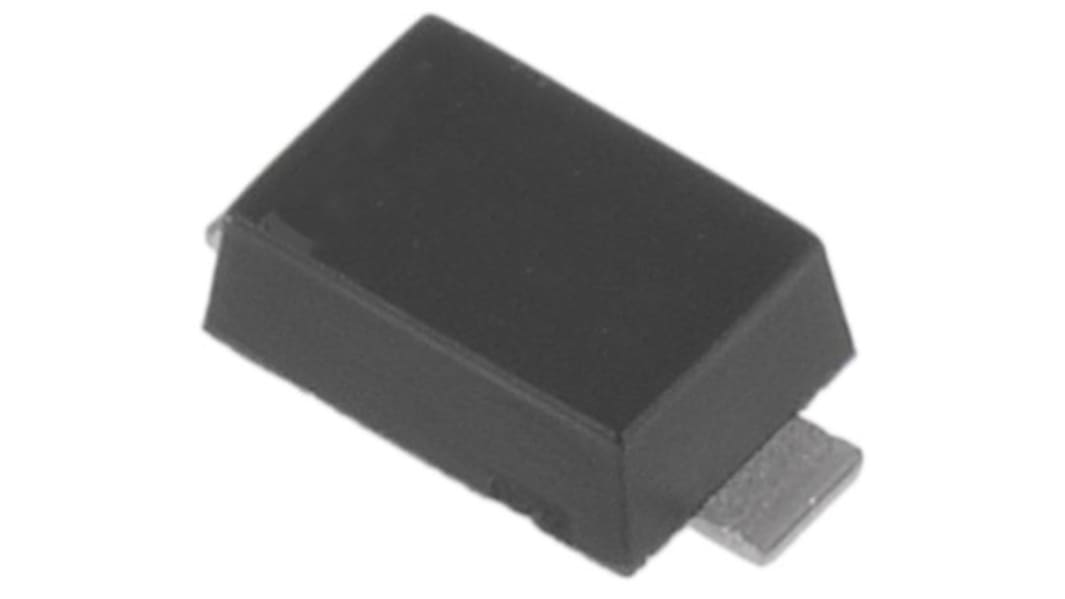

onsemi NSI45025T1G SOD-123 Display Driver, 2 Pin, 45 V
- RS Stock No.:
- 184-1213
- Mfr. Part No.:
- NSI45025T1G
- Brand:
- onsemi
550 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.272
(exc. VAT)
£0.326
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 50 | £0.272 | £13.60 |
| 100 - 950 | £0.143 | £7.15 |
| 1000 - 2950 | £0.113 | £5.65 |
| 3000 - 8950 | £0.11 | £5.50 |
| 9000 + | £0.107 | £5.35 |
| *price indicative | ||
- RS Stock No.:
- 184-1213
- Mfr. Part No.:
- NSI45025T1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Linear LED Drivers, ON Semiconductor
Standards
Manufacturer Part Nos with NSV prefix are automotive qualified to AEC-Q101 standard.
Robust Power Package: 460 mW, Wide operating voltage range, Immediate turn on Voltage surge suppressing protecting LEDs, SBT (Self Biased Transistor) Technology, Negative Temperature Coefficient, This device is PB-Free, Halogen Free/BFR Free
High or Low side control, Simple Battery Charge, Reduce LED binning and therefore inventory, NO EMI
Applications:
LED Drive, Battery Charging, Contact Wetting
High or Low side control, Simple Battery Charge, Reduce LED binning and therefore inventory, NO EMI
Applications:
LED Drive, Battery Charging, Contact Wetting
Specifications
Attribute | Value |
|---|---|
| Package Type | SOD-123 |
| Display Type | LED |
| Number of Pins | 2 |
| Supply Voltage | 45 V |
| Maximum Supply Current | 25mA |
| Minimum Operating Temperature | -55°C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150°C |
| Width | 1.8mm |
| Height | 1.25mm |
| Length | 2.84mm |
