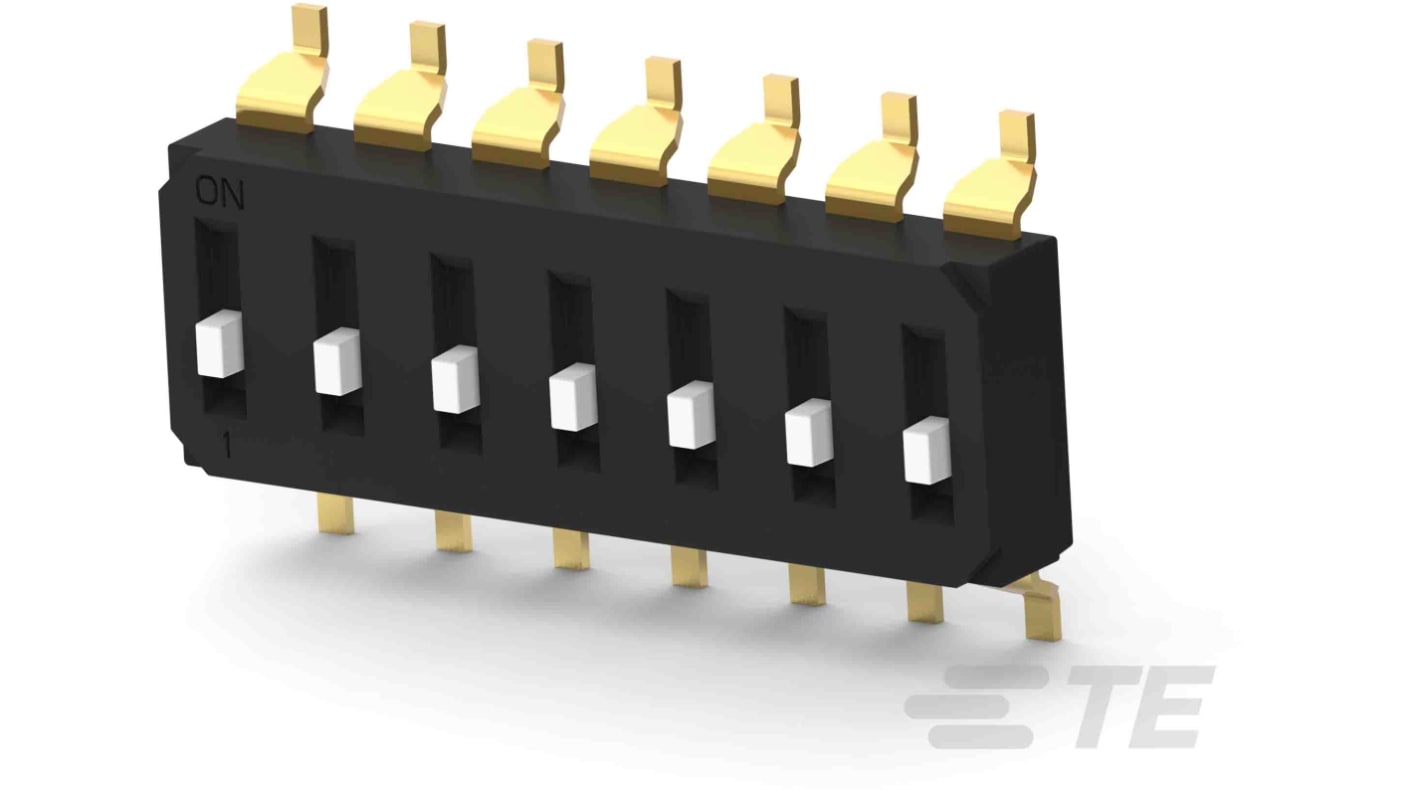

TE Connectivity 7 Way Surface Mount DIP Switch SPST, Raised Actuator
- RS Stock No.:
- 223-3990
- Mfr. Part No.:
- EDS07SGNNTR04Q
- Brand:
- TE Connectivity
900 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 900)
£1.245
(exc. VAT)
£1.494
(inc. VAT)
| Units | Per unit | Per Reel* |
| 900 - 900 | £1.245 | £1,120.50 |
| 1800 + | £1.128 | £1,015.20 |
| *price indicative | ||
- RS Stock No.:
- 223-3990
- Mfr. Part No.:
- EDS07SGNNTR04Q
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity EDS series ALCOSWITCH DIP switch designed for space saving and streamlined manufacturing. It is used in industrial and automated control boards, fire and security systems, thermostats, elevator and telecommunication device. It has operating temperature range from -20° C to +85° C.
End stackable
Dielectric strength 500 VAC for 1 minute
RoHS and halogen free
Dielectric strength 500 VAC for 1 minute
RoHS and halogen free
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 7 |
| Mounting Type | Surface Mount |
| Contact Configuration | SPST |
| Contact Material | Au over Nickel Plated, Cu Alloy |
| Actuator Type | Raised |
| Contact Current Rating | 25 @ 24 mA @ V dc |
