RS PRO 400VA DIN Rail Transformer, IEC 61558-2-6, 230V ac Primary, 24V ac Secondary
- RS Stock No.:
- 880-2605
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£167.65
(exc. VAT)
£201.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 50 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 29 | £167.65 |
30 - 59 | £157.26 |
60 + | £147.20 |
*price indicative
- RS Stock No.:
- 880-2605
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Primary Voltage Rating | 230V ac | |
Secondary Voltage Rating | 24V ac | |
Power Rating | 400VA | |
Mounting Type | DIN Rail | |
Number of Outputs | 1 | |
Length | 136mm | |
Width | 126mm | |
Depth | 127mm | |
Dimensions | 136 x 126 x 127mm | |
Minimum Operating Frequency | 50Hz | |
Maximum Operating Frequency | 60Hz | |
Standards Met | IEC 61558-2-6 | |
Maximum Temperature | +130°C | |
Weight | 5kg | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 24V ac | ||
Power Rating 400VA | ||
Mounting Type DIN Rail | ||
Number of Outputs 1 | ||
Length 136mm | ||
Width 126mm | ||
Depth 127mm | ||
Dimensions 136 x 126 x 127mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Standards Met IEC 61558-2-6 | ||
Maximum Temperature +130°C | ||
Weight 5kg | ||
- COO (Country of Origin):
- PL

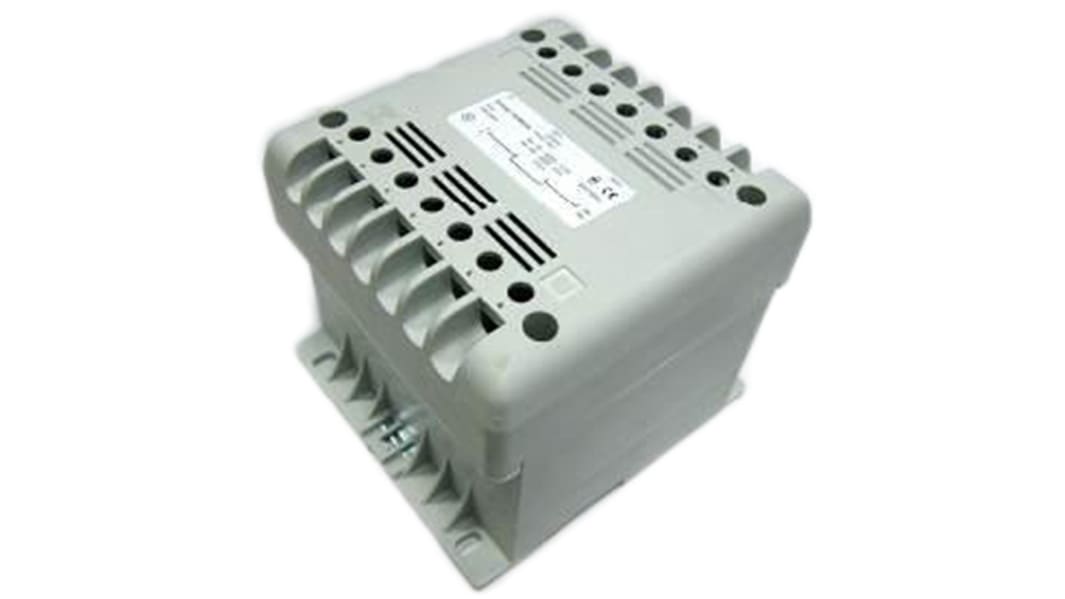

RS PRO 24V Single Phase DIN Rail Mount Isolation Transformer (400VA)
A single phase transformer with IP21 rated protection suitable for DIN rail mounting on a T35 rail.
Designed for general purpose applications the DIN rail transformer features standard primary winding of 0-230-400V with an available adjustment of +/- 15V at 0.
The isolating transformer features and high efficiency low regulation design and has been 100% electrical and flash tested.
Suitable for a wide range of applications including electrical control systems, panel boards, electromagnetic applications, electronic, relays, pumps, heating elements.
Designed for general purpose applications the DIN rail transformer features standard primary winding of 0-230-400V with an available adjustment of +/- 15V at 0.
The isolating transformer features and high efficiency low regulation design and has been 100% electrical and flash tested.
Suitable for a wide range of applications including electrical control systems, panel boards, electromagnetic applications, electronic, relays, pumps, heating elements.
Features and Benefits
Isolating transformer
DIN rail mount (T35)
Primary winding 15-0-15-230-400V
IP21 rated
Available adjustment of +/- 15V at 0
100% electrical and flash tested
Dimensions of 126 x 136 x 117mm
DIN rail mount (T35)
Primary winding 15-0-15-230-400V
IP21 rated
Available adjustment of +/- 15V at 0
100% electrical and flash tested
Dimensions of 126 x 136 x 117mm
Standards and Approvals: IEC/BS/EN 61558-1, AS/NZS 61558.1
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
