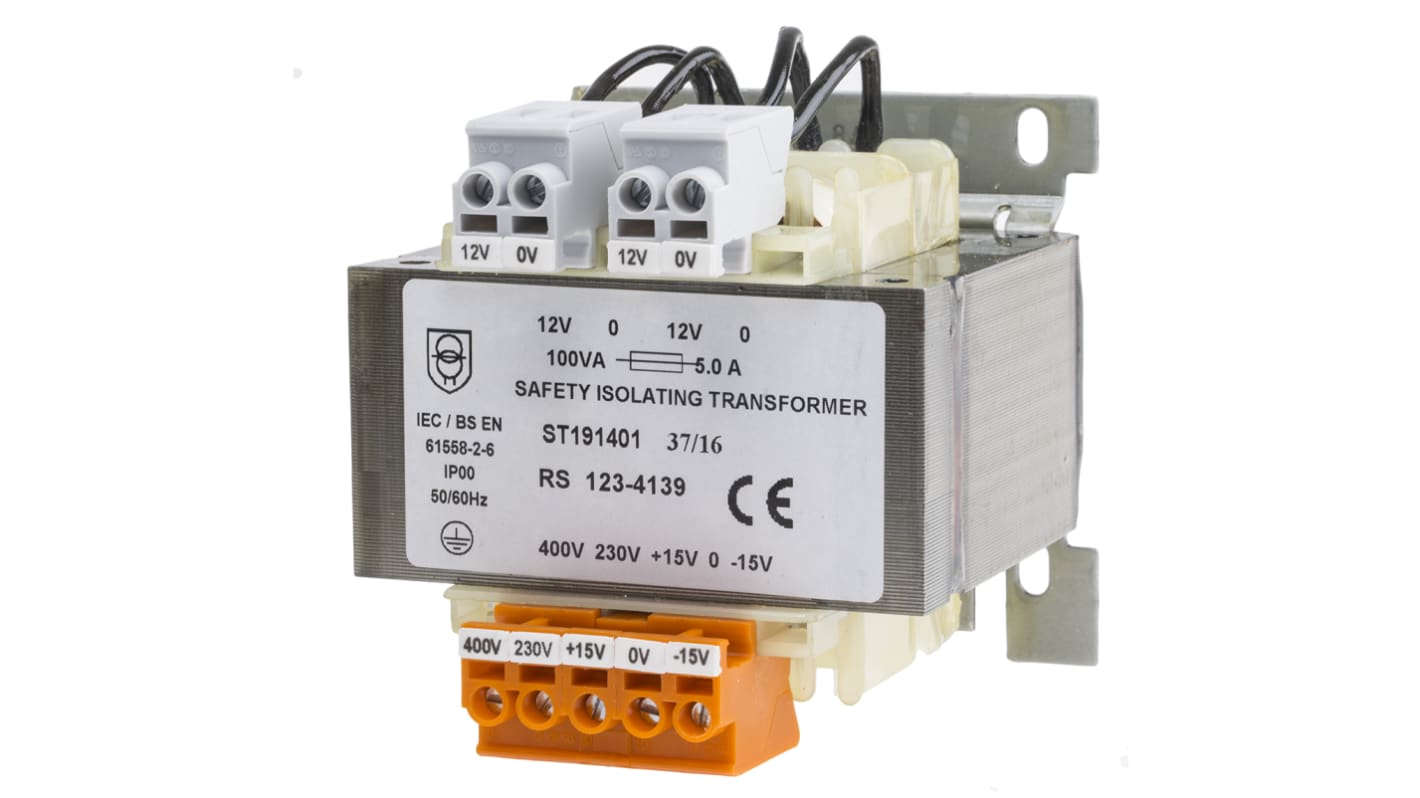

RS PRO 100VA DIN Rail Transformer, IEC 61558-2-6, 230 → 400V ac Primary, 12V ac Secondary
- RS Stock No.:
- 123-4139
- Distrelec Article No.:
- 304-02-632
- Brand:
- RS PRO
Subtotal (1 unit)*
£100.45
(exc. VAT)
£120.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £100.45 |
*price indicative
- RS Stock No.:
- 123-4139
- Distrelec Article No.:
- 304-02-632
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 230 → 400V ac | |
| Secondary Voltage Rating | 12V ac | |
| Power Rating | 100VA | |
| Mounting Type | DIN Rail | |
| Length | 84mm | |
| Width | 76mm | |
| Depth | 100mm | |
| Dimensions | 84 x 76 x 100mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Standards Met | IEC 61558-2-6 | |
| Weight | 2.1kg | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 230 → 400V ac | ||
Secondary Voltage Rating 12V ac | ||
Power Rating 100VA | ||
Mounting Type DIN Rail | ||
Length 84mm | ||
Width 76mm | ||
Depth 100mm | ||
Dimensions 84 x 76 x 100mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Standards Met IEC 61558-2-6 | ||
Weight 2.1kg | ||
- COO (Country of Origin):
- PL
RS PRO 230 – 400V Single Phase DIN Rail Panel Isolation Transformer (TS35)
A DIN rail mounted single phase isolation transformer suitable for general applications with a varnish impregnation, rated from 230 to 400V, 50/60Hz. Built with a 2 section bobbin to keep full separation of between the primary and the 2 x 12V secondary windings.
The DIN rail transformer features multiple input connections terminated using the simple screw terminals and is secured to the TS35 rail using M4 fixings. A high efficiency low regulation DIN rail isolation transformer fit for industrial applications.
Features and Benefits
TS35 DIN rail mounting Transformer
Isolating transformer
100Va Power rating
230 – 400V primary winding
2 x 12V secondary windings
Double section bobbin construction
Screw termination
Class I protection
100% electrical and flash tested
Isolating transformer
100Va Power rating
230 – 400V primary winding
2 x 12V secondary windings
Double section bobbin construction
Screw termination
Class I protection
100% electrical and flash tested
Standards and Approvals: UKCA, CE, IEC61558-2-6 / EN61558-2-6, RoHS Compliant
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
