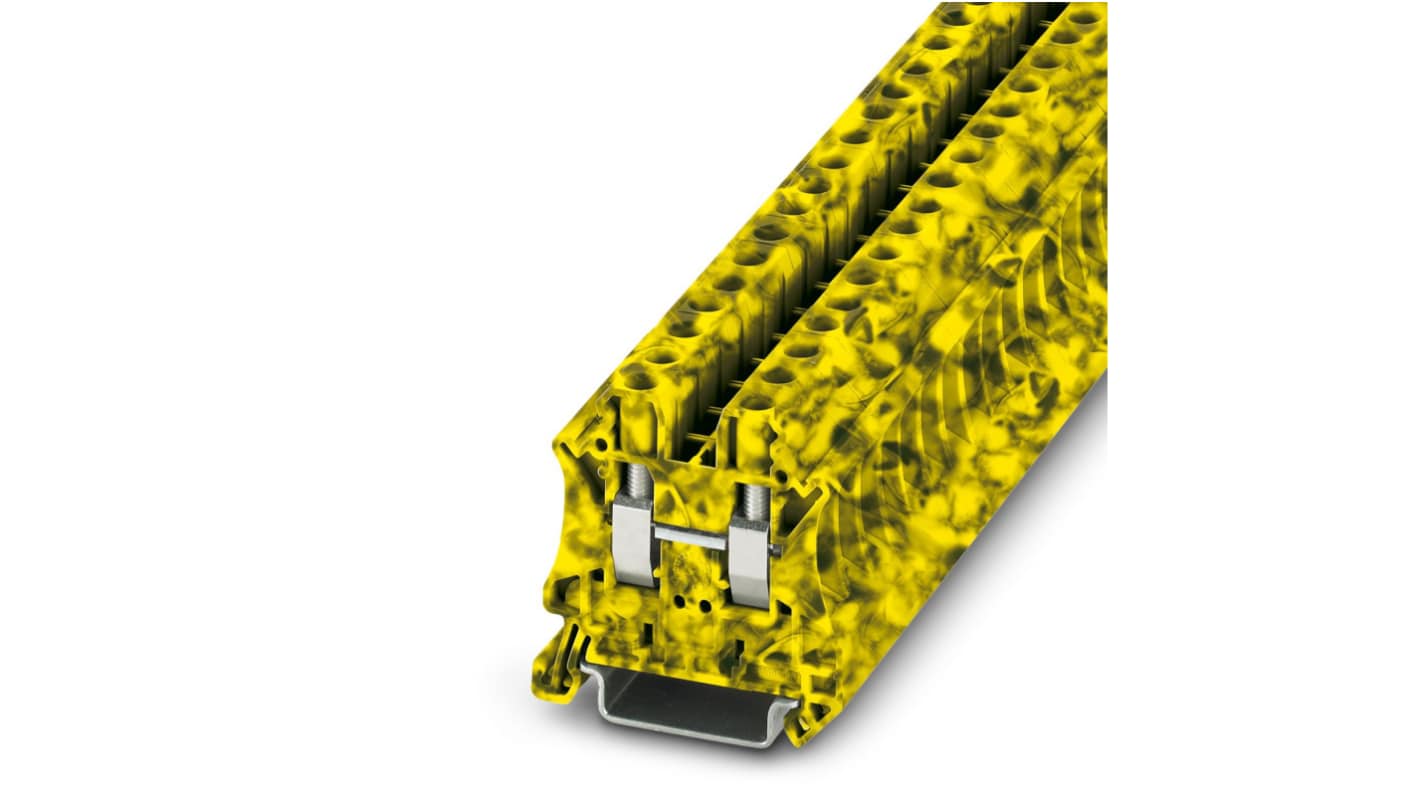

Phoenix Contact 3047647 UT 6-FE Series Non-Fuse DIN Rail Terminal Black, Yellow, 0.2 to 10 mm², 1-Level, Screw
- RS Stock No.:
- 856-4280
- Mfr. Part No.:
- 3047647
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£90.96
(exc. VAT)
£109.15
(inc. VAT)
Add 1 box to get free delivery
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £90.96 | £1.819 |
*price indicative
- RS Stock No.:
- 856-4280
- Mfr. Part No.:
- 3047647
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black, Yellow | |
| Product Type | Non-Fuse DIN Rail Terminal | |
| Number of Levels | 1 | |
| Series | UT 6-FE | |
| Voltage | 1 kV | |
| Cable CSA | 0.2 to 10 mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 8 AWG | |
| Termination Type | Screw | |
| Terminal Block Current | 41A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 110°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black, Yellow | ||
Product Type Non-Fuse DIN Rail Terminal | ||
Number of Levels 1 | ||
Series UT 6-FE | ||
Voltage 1 kV | ||
Cable CSA 0.2 to 10 mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 8 AWG | ||
Termination Type Screw | ||
Terminal Block Current 41A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 110°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, width: 8.2 mm, color: black/yellow, mounting type: NS 35/7,5, NS 35/15
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section;Tested for railway applications
