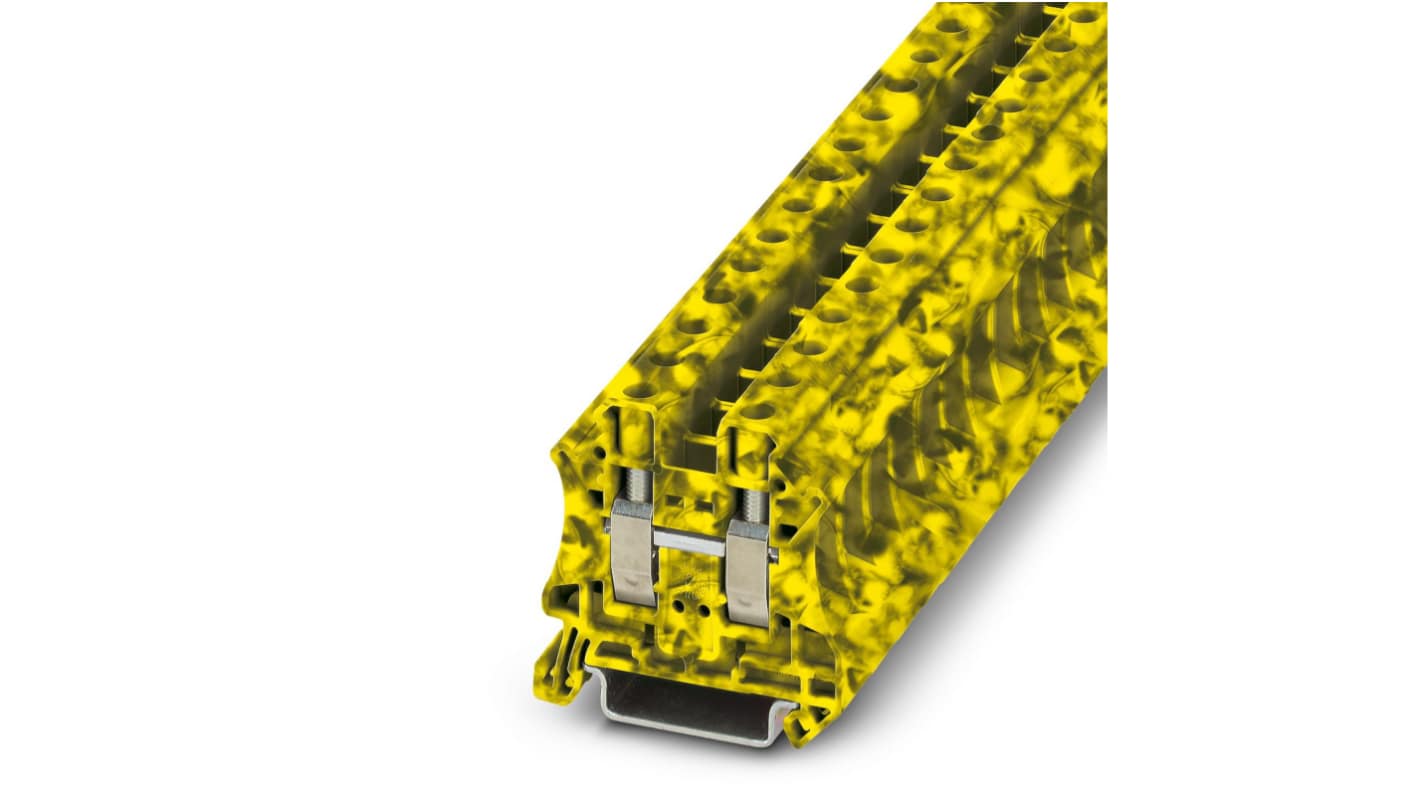

Phoenix Contact UT 10-FE Series Black, Yellow Non-Fused DIN Rail Terminal, 0.5 → 16mm², Single-Level, Screw
- RS Stock No.:
- 856-4436
- Mfr. Part No.:
- 3047660
- Brand:
- Phoenix Contact
Available to back order for despatch 18/06/2024
Added
Price 1 Box of 50
£106.50
(exc. VAT)
£127.80
(inc. VAT)
| Box(es) | Per Box | Per unit* |
| 1 - 5 | £106.50 | £2.13 |
| 6 - 11 | £101.16 | £2.023 |
| 12 + | £96.91 | £1.938 |
| *price indicative | ||
- RS Stock No.:
- 856-4436
- Mfr. Part No.:
- 3047660
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, width: 10.2 mm, height: 46.9 mm, color: black/yellow, mounting type: NS 35/7,5, NS 35/15
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Tested for railway applications
Specifications
Attribute | Value |
|---|---|
| Colour | Black, Yellow |
| Number of Levels | Single |
| Series | UT 10-FE |
| Termination Method | Screw |
| Cable CSA | 0.5 → 16mm² |
| Voltage Rating | 1 kV |
| Current Rating | 57A |
| Model Number | UT 10-FE |
