Phoenix Contact 3047676 UT 35-FE Series Black, Yellow, Single-Level, Screw Termination
- RS Stock No.:
- 857-5050
- Mfr. Part No.:
- 3047676
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£251.29
(exc. VAT)
£301.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £251.29 | £5.026 |
*price indicative
- RS Stock No.:
- 857-5050
- Mfr. Part No.:
- 3047676
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Black, Yellow | |
Number of Levels | Single | |
Voltage Rating | 1 kV | |
Series | UT 35-FE | |
Termination Method | Screw | |
Current Rating | 125A | |
Model Number | UT 35-FE | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Black, Yellow | ||
Number of Levels Single | ||
Voltage Rating 1 kV | ||
Series UT 35-FE | ||
Termination Method Screw | ||
Current Rating 125A | ||
Model Number UT 35-FE | ||
- COO (Country of Origin):
- TR

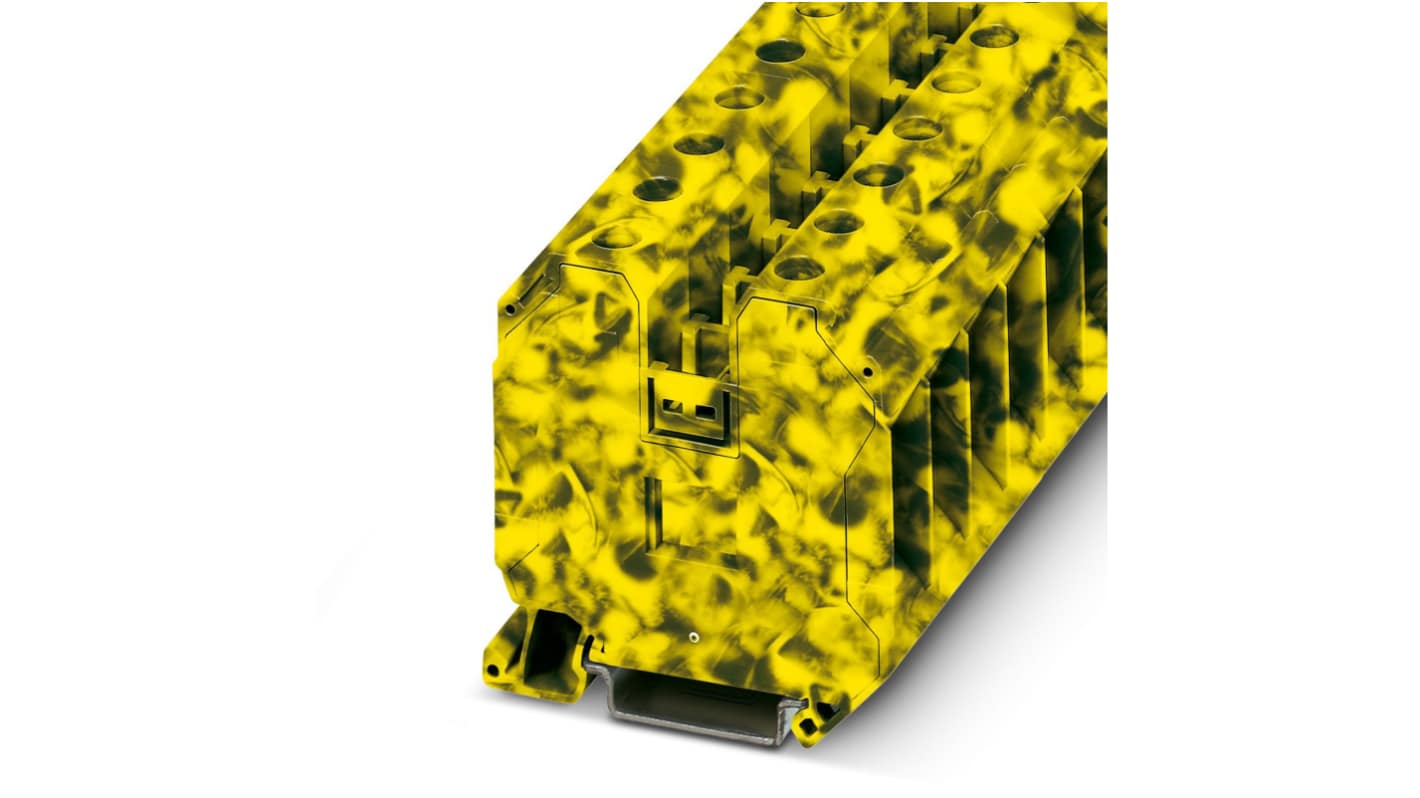

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, number of connections: 2, cross section: 1.5 mm² - 50 mm², AWG: 16 - 1/0, width: 16 mm, height: 65.1 mm, color: black/yellow, mounting type: NS 35/7,5, NS 35/15
The reducing bridges can be used to connect terminal blocks with different connection technologies, e.g., UT 35 screw terminal block with Push-in technology 2,5 Push-in terminal blocks, to form power blocks
