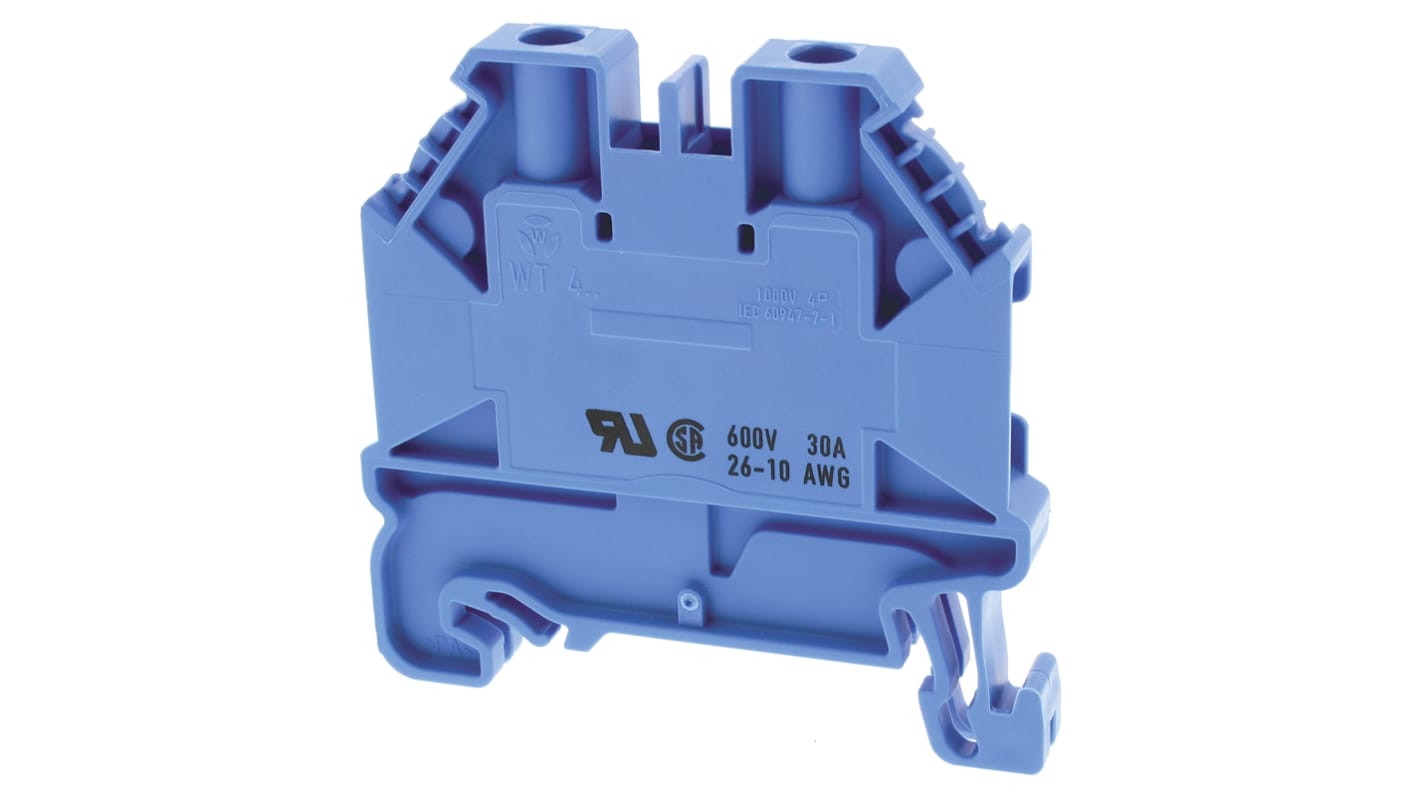

Wieland 58.504.0055.6 WT 4 Series Blue, Single-Level, Screw Termination, ATEX

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£9.91

(exc. VAT)

£11.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 380 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.991£9.91

*price indicative

RS Stock No.:
811-3785
Mfr. Part No.:
58.504.0055.6
Brand:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Colour

Blue

Number of Levels

Single

Voltage Rating

1 kV

American Wire Gauge

26 → 10AWG

Series

WT 4

Termination Method

Screw

Current Rating

32A

Pitch

6mm

Maximum Operating Temperature

+120°C

Hazardous Area Certification

ATEX

Standards Met

CSA, GL, VDE

COO (Country of Origin):
DE

Feed-Through DIN Rail Terminal Blocks 4mm², Screw Connection, TS35 Mounting, Type WT 4


Feed-through block with screw connection for mounting on TS35 DIN Rail
Nominal cross-section 4mm²
Maximum electrical current 41A / 6mm²
Connection capacity: 2 wires, equal size, 0.14 - 2.5mm²
