Wieland WT 4 Series Brown Feed Through Terminal Block, Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 811-3788
- Mfr. Part No.:
- 58.504.0055.4
- Brand:
- Wieland
400 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.952
(exc. VAT)
£1.142
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 50 | £0.952 | £9.52 |
| 60 - 110 | £0.904 | £9.04 |
| 120 + | £0.867 | £8.67 |
| *price indicative | ||
- RS Stock No.:
- 811-3788
- Mfr. Part No.:
- 58.504.0055.4
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

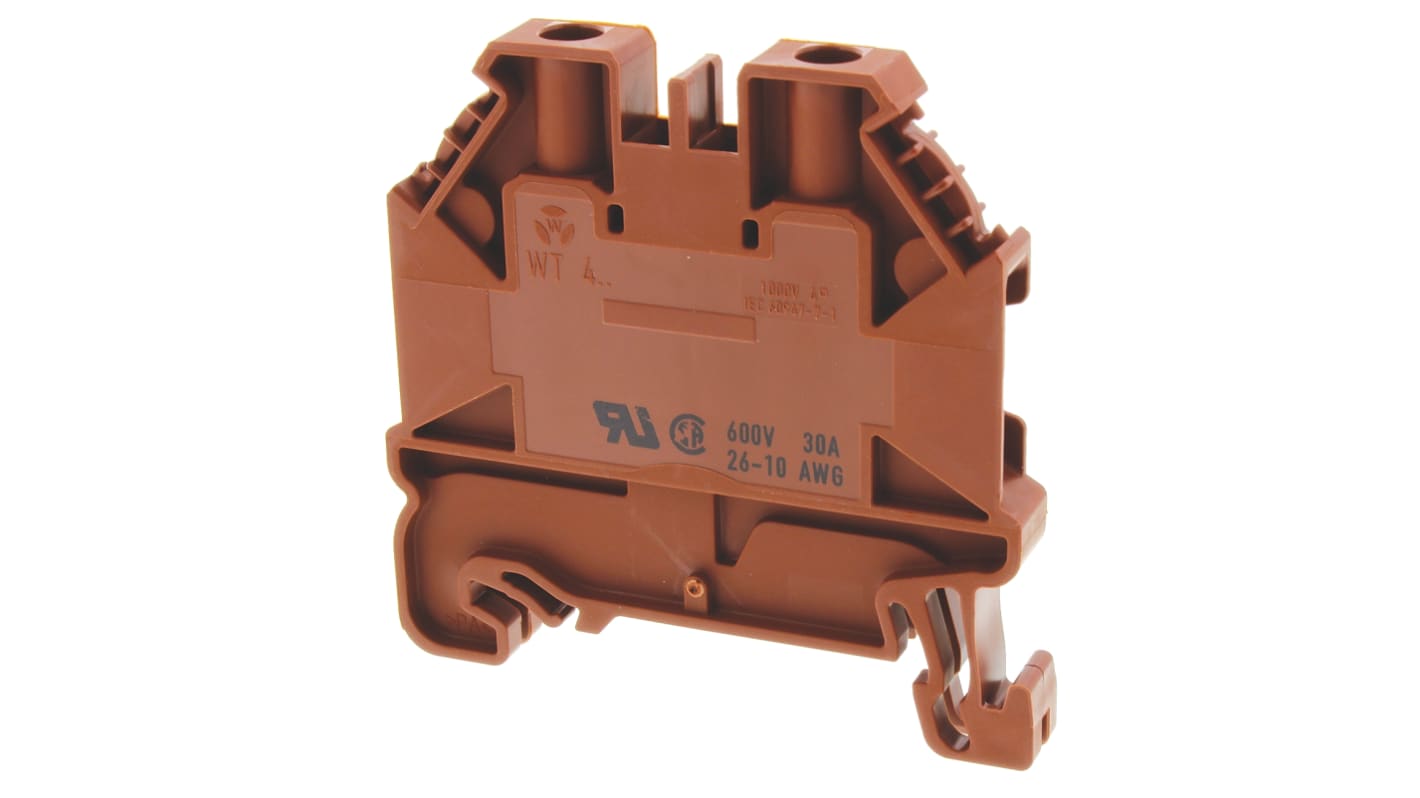

Feed-Through DIN Rail Terminal Blocks 4mm², Screw Connection, TS35 Mounting, Type WT 4
Feed-through block with screw connection for mounting on TS35 DIN Rail
Nominal cross-section 4mm²
Maximum electrical current 41A / 6mm²
Connection capacity: 2 wires, equal size, 0.14 - 2.5mm²
Nominal cross-section 4mm²
Maximum electrical current 41A / 6mm²
Connection capacity: 2 wires, equal size, 0.14 - 2.5mm²
Selos
Specifications
Attribute | Value |
|---|---|
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 26 → 10AWG |
| Series | WT 4 |
| Termination Method | Screw |
| Current Rating | 32A |
| Voltage Rating | 1 kV |
| Pitch | 6mm |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
| Standards Met | CSA, GL, VDE |
