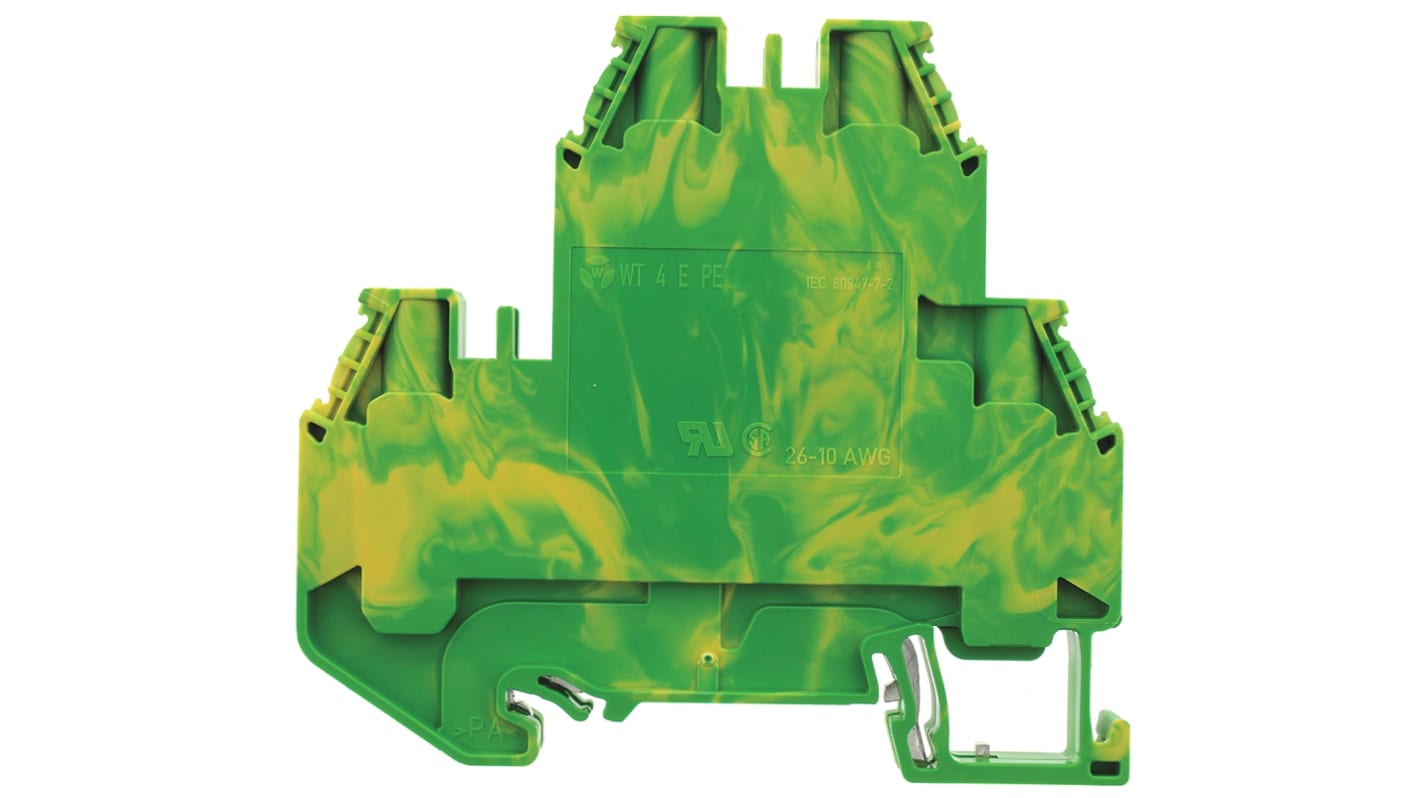

Wieland WT 4 E PE Series Green, Yellow Earth Terminal Block, Double-Level, Screw Termination, ATEX
- RS Stock No.:
- 811-3882
- Mfr. Part No.:
- 58.504.9255.0
- Brand:
- Wieland
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Pack of 10)
£7.845
(exc. VAT)
£9.414
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 50 | £7.845 | £78.45 |
| 60 - 110 | £7.453 | £74.53 |
| 120 + | £7.139 | £71.39 |
| *price indicative | ||
- RS Stock No.:
- 811-3882
- Mfr. Part No.:
- 58.504.9255.0
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
WT 4 E Multi-Tier Blocks with Screw Connection
Multi-tier block for mounting on TS35 DIN rail
Nominal cross-section 4 mm²
Connection capacity: 2 wires, equal size 0.14 - 2.5 mm²
For the compatible WT 4 E PE earth (ground) block, please see RS 811-3882
Nominal cross-section 4 mm²
Connection capacity: 2 wires, equal size 0.14 - 2.5 mm²
For the compatible WT 4 E PE earth (ground) block, please see RS 811-3882
Selos
Specifications
Attribute | Value |
|---|---|
| Colour | Green, Yellow |
| Number of Levels | Double |
| American Wire Gauge | 26 → 10AWG |
| Series | WT 4 E PE |
| Termination Method | Screw |
| Voltage Rating | 800 V |
| Pitch | 6mm |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
| Standards Met | CSA, GL, VDE |
