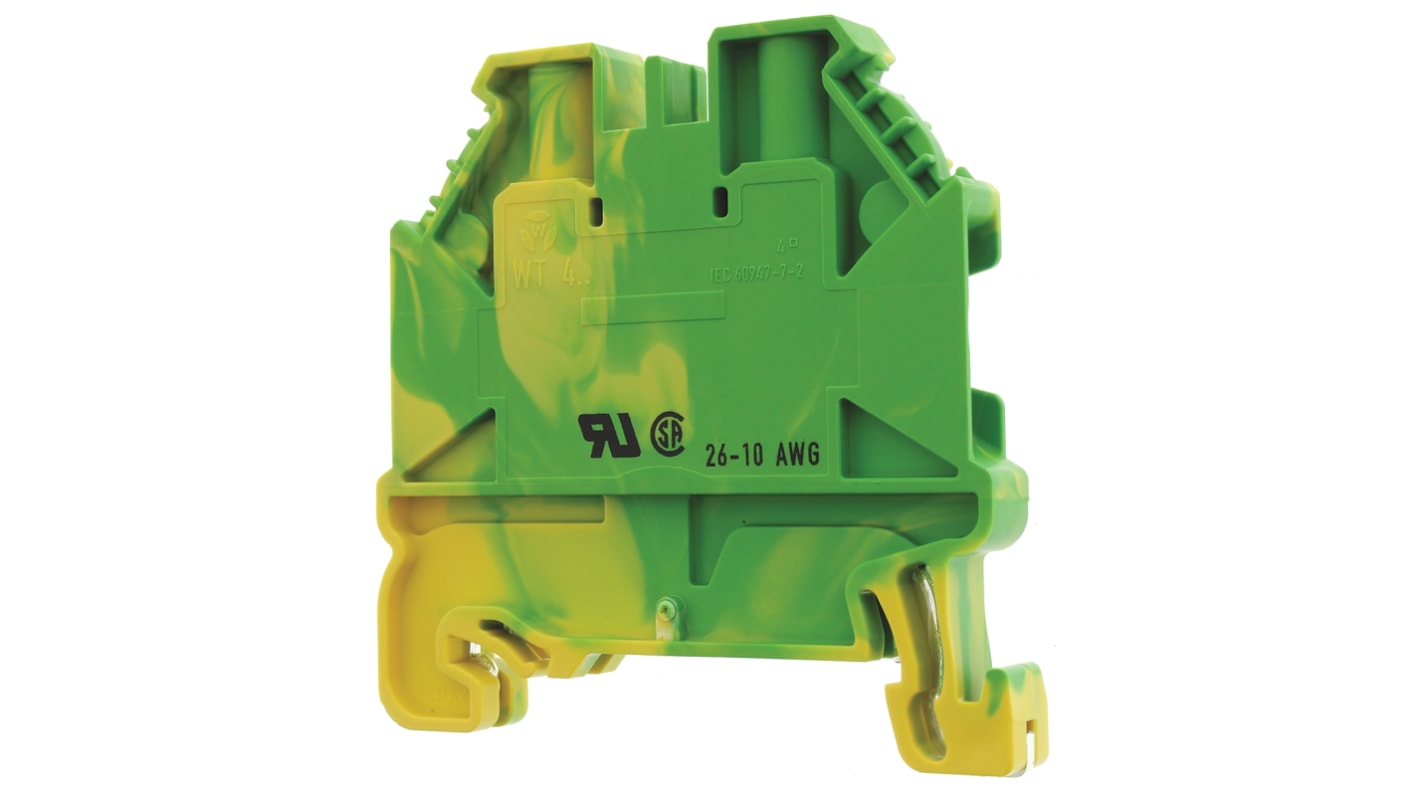

Wieland 58.504.9055.0 WT 4 PE Series Earth Terminal Block Yellow, Green, 10AWG, 26 AWG, 1-Level, Screw, ATEX
- RS Stock No.:
- 811-3801
- Mfr. Part No.:
- 58.504.9055.0
- Brand:
- Wieland
Subtotal (1 pack of 10 units)*
£24.76
(exc. VAT)
£29.71
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- 180 left, ready to ship
- Plus 60 left, ready to ship from another location
- Final 200 unit(s) shipping from 19 August 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.476 | £24.76 |
*price indicative
- RS Stock No.:
- 811-3801
- Mfr. Part No.:
- 58.504.9055.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Colour | Yellow, Green | |
| Product Type | Earth Terminal Block | |
| Number of Levels | 1 | |
| Number of Positions | 2 | |
| Voltage | 1kV | |
| Series | WT 4 PE | |
| Cable CSA | 10, 26AWG | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Pitch | 6mm | |
| Minimum Operating Temperature | 120°C | |
| Termination Type | Screw | |
| Maximum Operating Temperature | 120°C | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | CSA, VDE, GL | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Colour Yellow, Green | ||
Product Type Earth Terminal Block | ||
Number of Levels 1 | ||
Number of Positions 2 | ||
Voltage 1kV | ||
Series WT 4 PE | ||
Cable CSA 10, 26AWG | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 10AWG | ||
Pitch 6mm | ||
Minimum Operating Temperature 120°C | ||
Termination Type Screw | ||
Maximum Operating Temperature 120°C | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals CSA, VDE, GL | ||
- COO (Country of Origin):
- DE
Ground Blocks with Screw Connection, TS35 DIN Rail Mount, Type WT 4 PE
Ground block with screw connection for mounting on TS 35
Nominal cross section 4mm²
Connector capacity: 2 wires, equal size 0.14 - 2.5 mm²
