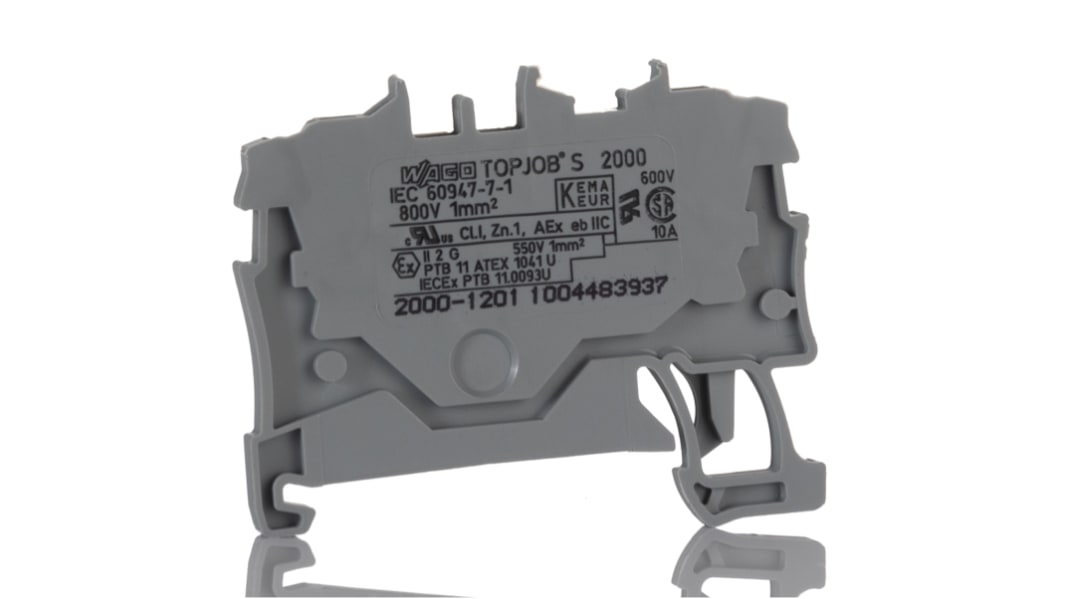

WAGO 2000-1201 Feed Through Terminal Block Grey, 1mm², 1-Level, Cage Clamp, IECEx/ATEX
- RS Stock No.:
- 784-0442
- Mfr. Part No.:
- 2000-1201
- Brand:
- WAGO
Subtotal (1 pack of 5 units)*
£3.18
(exc. VAT)
£3.815
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 530 unit(s) ready to ship
- Plus 445 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.636 | £3.18 |
*price indicative
- RS Stock No.:
- 784-0442
- Mfr. Part No.:
- 2000-1201
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Product Type | Feed Through Terminal Block | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Minimum Wire Size AWG | 24AWG | |
| Cable CSA | 1mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Fused | No | |
| Pitch | 3.5mm | |
| Terminal Block Current | 18A | |
| Termination Type | Cage Clamp | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | CSA | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Product Type Feed Through Terminal Block | ||
Number of Levels 1 | ||
Voltage 800V | ||
Minimum Wire Size AWG 24AWG | ||
Cable CSA 1mm² | ||
Maximum Wire Size AWG 16AWG | ||
Fused No | ||
Pitch 3.5mm | ||
Terminal Block Current 18A | ||
Termination Type Cage Clamp | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals CSA | ||
- COO (Country of Origin):
- CN
WAGO Feed-Through Terminal Block, 0.434W Power Loss Per Pole, Front-Entry Wiring - TOPJOB S 2000 Series - 2000-1201
Establish a link between wires with this feed-through terminal block from WAGO. It has a single-level structure with two connections, so you have room for a dual-wire assembly. The unit accommodates cables that range in size from 24 to 16AWG for flexible installation. You can insert your wires in a jiffy thanks to the simple push-in, cage clamp termination method. These terminals remove the hassle of using tools and help ensure a firm group on the setup.
Features & Benefits
• Low power loss per pole of 0.434W for energy efficiency
• Front-entry wiring enables convenient cable installation
• Rated surge voltage of 8kV to handle faulty currents
• Tough PA66 body offers insulation protection to prevent electric shock
• 13.5A current rating for compatibility with standard power outlets
Applications
• Textile production
• Food packaging
• Waste management systems
• Forestry equipment
What's the pitch size of this feed-through terminal block?
The block has a tight pitch of 3.5mm to fit small conductors.
Can I mark the block for identification?
Yes, you can add a label at its centre or side to identify it in a busy panel.
