WAGO 2000-2231 TOPJOB S, 2000 Series Grey, 1mm², Double-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 247-5813
- Mfr. Part No.:
- 2000-2231
- Brand:
- WAGO
Subtotal (1 pack of 50 units)*
£93.45
(exc. VAT)
£112.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.869 | £93.45 |
*price indicative
- RS Stock No.:
- 247-5813
- Mfr. Part No.:
- 2000-2231
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | Double | |
| Series | TOPJOB S, 2000 | |
| American Wire Gauge | 24 → 16AWG | |
| Voltage Rating | 600 V | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 1mm² | |
| Fused | No | |
| Current Rating | 13.5A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | '+105°C | |
| Hazardous Area Certification | ATEX, IECEx | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels Double | ||
Series TOPJOB S, 2000 | ||
American Wire Gauge 24 → 16AWG | ||
Voltage Rating 600 V | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 1mm² | ||
Fused No | ||
Current Rating 13.5A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature '+105°C | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- DE

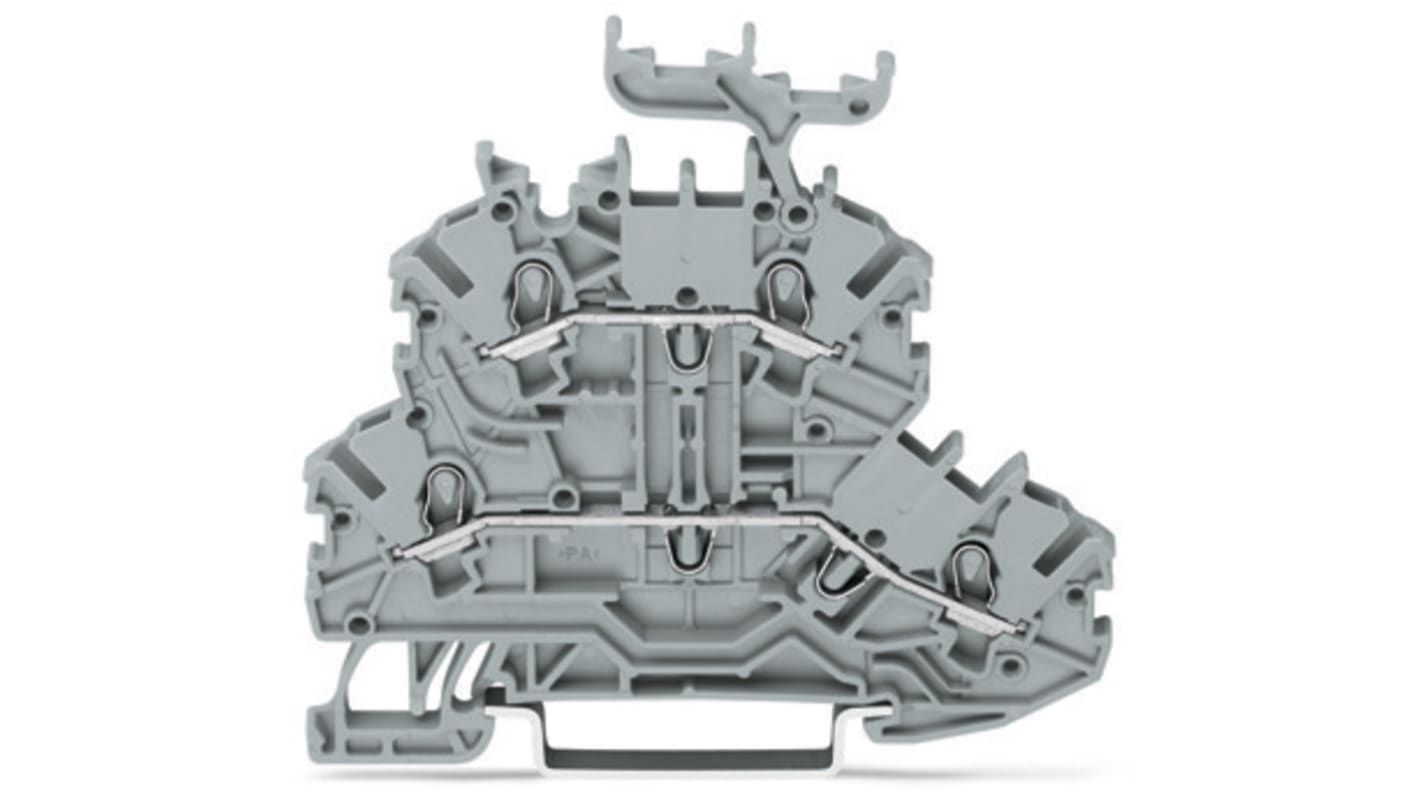

WAGO TOPJOB S / 2000 Series Feed-Through Terminal Block, 13.5A Current Rating, 1 mm² - 2000-2231
This robust double-deck terminal block is designed for DIN-rail mounting, compatible with rails measuring 35 x 15 and 35 x 7.5 mm. It operates efficiently in extreme conditions with a minimum temperature of -60°C and a maximum of +105°C, ensuring reliable performance. With a voltage rating of 600V, it is built for high-capacity applications, making it ideal for various electrical tasks.
Features & Benefits
• Designed for wire sizes 24AWG to 16AWG for versatile applications
• No tools required for wire termination with push-in cage clamp
• ATEX certified, ensuring safety in explosive atmospheres
• IECEx certification for compliance with international standards
• Double level design allows for space-saving installations
• Capable of handling a current rating of 13.5A
• No tools required for wire termination with push-in cage clamp
• ATEX certified, ensuring safety in explosive atmospheres
• IECEx certification for compliance with international standards
• Double level design allows for space-saving installations
• Capable of handling a current rating of 13.5A
Applications
• Used in automation systems requiring functional connections
• Suitable for control cabinets in electrical installations
• Employed in environments with explosive atmospheres
• Ideal for double deck layouts in electrical panels
• Suitable for control cabinets in electrical installations
• Employed in environments with explosive atmospheres
• Ideal for double deck layouts in electrical panels
What is the rated current for this terminal block?
The terminal block has a rated current of 15 A.
Is it suitable for fine-stranded conductors?
Yes, it accommodates fine-stranded conductors from 0.14 to 1.5 mm².
