WAGO 2000-1207 TOPJOB S, 2000 Series Green/Yellow, 1mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 784-0454
- Mfr. Part No.:
- 2000-1207
- Brand:
- WAGO
Subtotal (1 pack of 5 units)*
£12.62
(exc. VAT)
£15.145
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 95 unit(s) ready to ship
- Plus 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.524 | £12.62 |
*price indicative
- RS Stock No.:
- 784-0454
- Mfr. Part No.:
- 2000-1207
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Green/Yellow | |
| Number of Levels | Single | |
| Series | TOPJOB S, 2000 | |
| American Wire Gauge | 24 → 16AWG | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 1mm² | |
| Fused | No | |
| Current Rating | 13.5A | |
| Pitch | 3.5mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | '+105°C | |
| Hazardous Area Certification | ATEX, IECEx | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
Series TOPJOB S, 2000 | ||
American Wire Gauge 24 → 16AWG | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 1mm² | ||
Fused No | ||
Current Rating 13.5A | ||
Pitch 3.5mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature '+105°C | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- CN

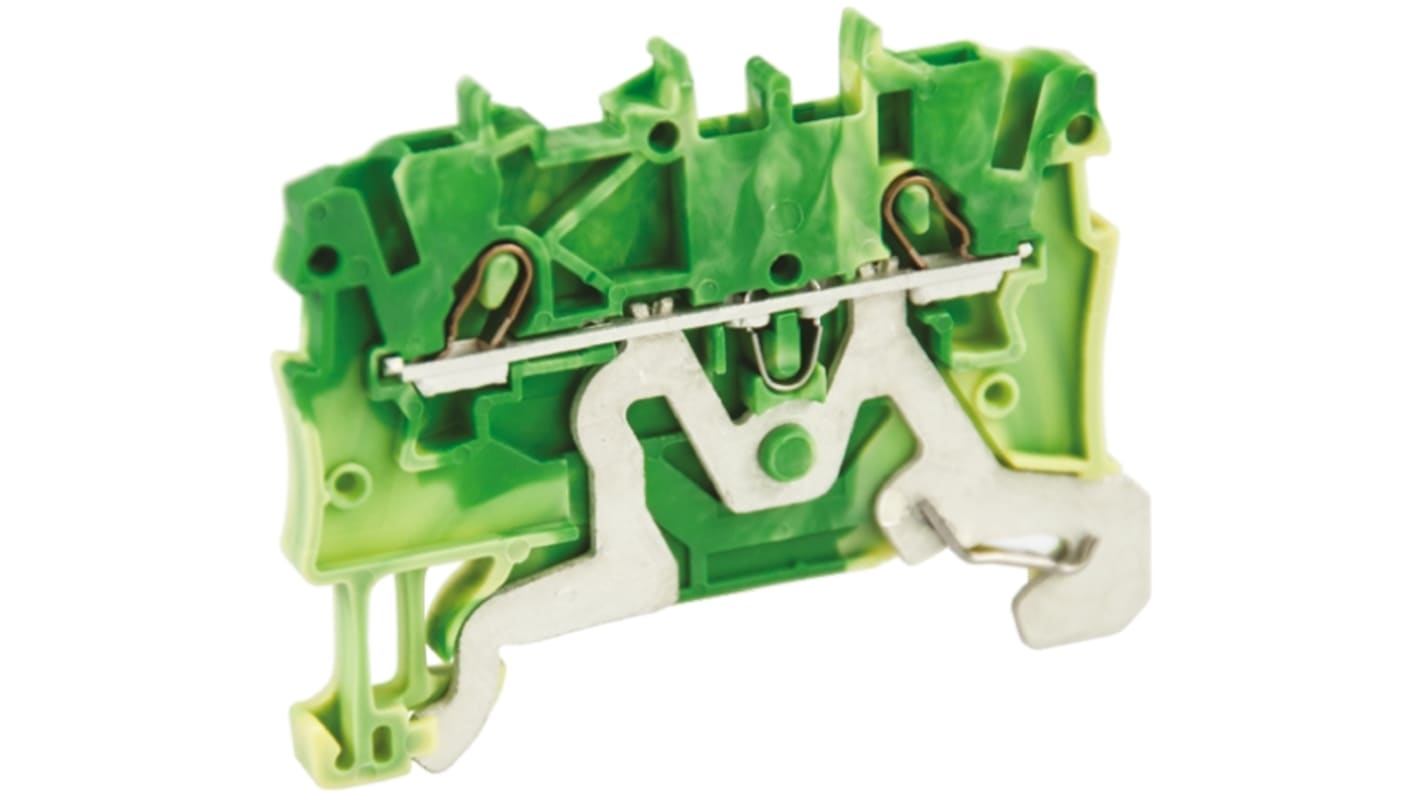

WAGO TOPJOB S / 2000 Series Earth Terminal Block, 13.5A Current Rating, 1 mm² - 2000-1207
This earth terminal block is designed for reliable electrical connections with a green/yellow colour coding for easy identification. Its single-level design allows for efficient use of space in electrical installations.
Features & Benefits
• Compact 3.5mm pitch maximises installation space
• Green/yellow colour coding enhances safety and identification
• Rated current of 13.5A for performance
• Green/yellow colour coding enhances safety and identification
• Rated current of 13.5A for performance
Applications
• Suitable for automation systems and control panels
• Ideal for electrical equipment in hazardous environments
• Utilised in mechanical systems requiring earth connections
• Ideal for electrical equipment in hazardous environments
• Utilised in mechanical systems requiring earth connections
Can it accommodate various conductor sizes?
Yes, it supports conductors from 24AWG to 16AWG.
Will it perform well in hazardous areas?
Yes, it carries ATEX and IECEx certifications for safety.
TOPJOB S Series
A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
