Wago TOPJOB S, 2000 Series Blue Feed Through Terminal Block, 1mm², Single-Level, Push-In Cage Clamp Termination, ATEX,
- RS Stock No.:
- 784-0451
- Mfr. Part No.:
- 2000-1204
- Brand:
- Wago
475 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.614
(exc. VAT)
£0.737
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 25 | £0.614 | £3.07 |
| 30 - 55 | £0.586 | £2.93 |
| 60 + | £0.56 | £2.80 |
| *price indicative | ||
- RS Stock No.:
- 784-0451
- Mfr. Part No.:
- 2000-1204
- Brand:
- Wago
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Standard Terminal Blocks

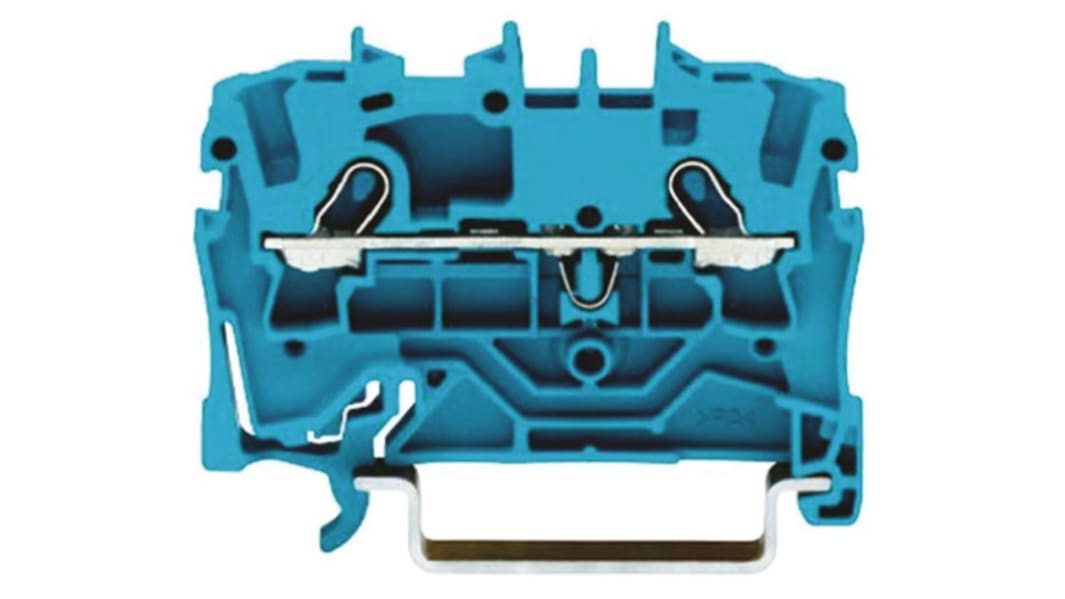

The Wago Terminal block is a two conductor through terminal block. It is available in blue colour with operating tool type actuation. This terminal block insulation is made from polyamide material and it has push in cage clamp connection technology.
RoHS compliant
0.079 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
0.079 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
TOPJOB S Series
A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.
Specifications
Attribute | Value |
|---|---|
| Colour | Blue |
| Number of Levels | Single |
| American Wire Gauge | 24 → 16AWG |
| Series | TOPJOB S, 2000 |
| Termination Method | Push-In Cage Clamp |
| Cable CSA | 1mm² |
| Fused | No |
| Current Rating | 13.5A |
| Voltage Rating | 800 V |
| Pitch | 3.5mm |
| Hazardous Area Certification | ATEX, IECEx |
