Phoenix Contact 3210253 PT 2.5-TWIN-DIO/R-L Series Grey, 0.14 → 4mm², Single-Level, Push In Termination
- RS Stock No.:
- 687-9742
- Mfr. Part No.:
- 3210253
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£23.10
(exc. VAT)
£27.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 410 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £4.62 | £23.10 |
*price indicative
- RS Stock No.:
- 687-9742
- Mfr. Part No.:
- 3210253
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Single | |
American Wire Gauge | 26 → 12AWG | |
Series | PT 2.5-TWIN-DIO/R-L | |
Voltage Rating | 800 V | |
Termination Method | Push In | |
Cable CSA | 0.14 → 4mm² | |
Current Rating | 500mA | |
Minimum Operating Temperature | -60°C | |
Maximum Operating Temperature | +105°C | |
Standards Met | cRUus, CSA | |
Model Number | PT 2,5-TWIN-DIO/R-L | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
American Wire Gauge 26 → 12AWG | ||
Series PT 2.5-TWIN-DIO/R-L | ||
Voltage Rating 800 V | ||
Termination Method Push In | ||
Cable CSA 0.14 → 4mm² | ||
Current Rating 500mA | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
Standards Met cRUus, CSA | ||
Model Number PT 2,5-TWIN-DIO/R-L | ||
- COO (Country of Origin):
- PL

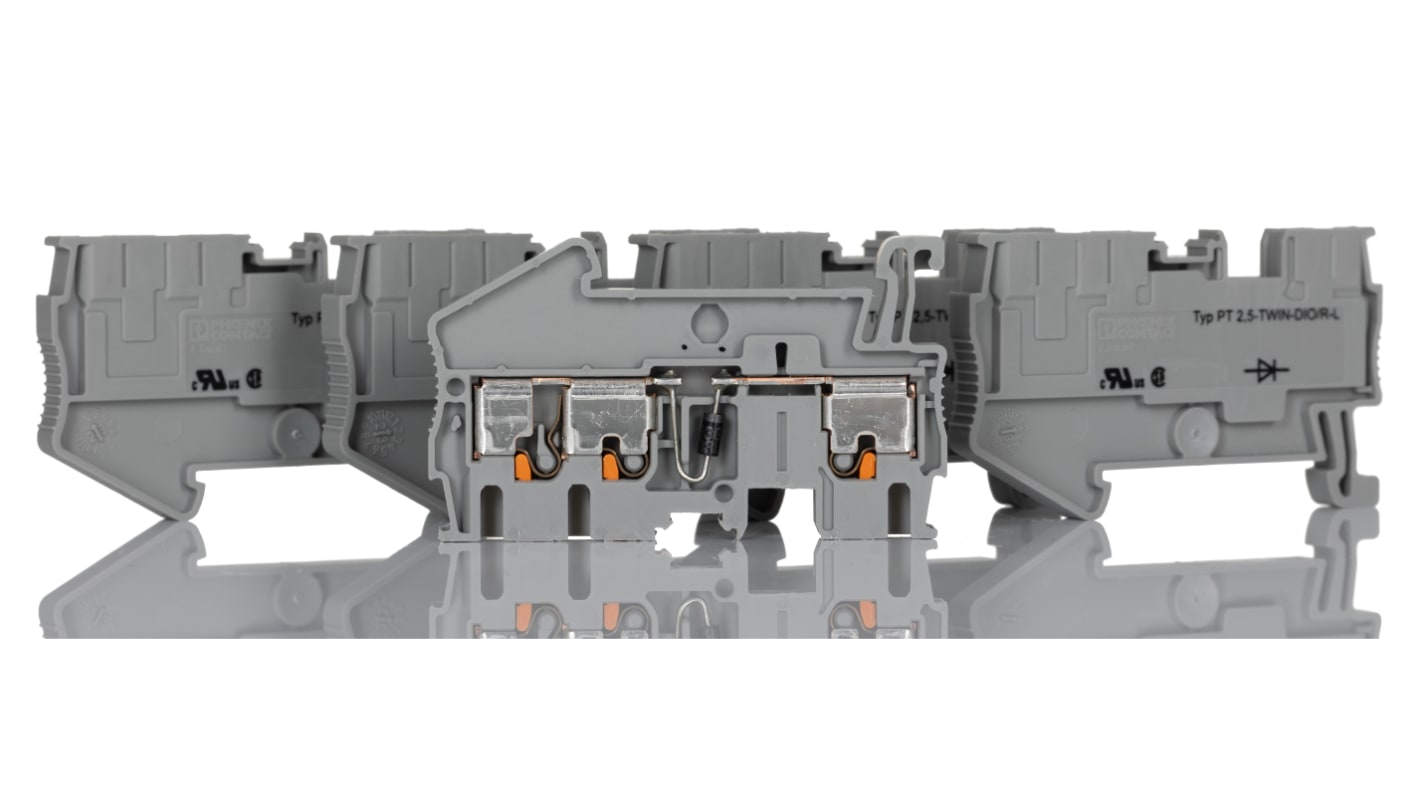

Phoenix Contact Feed-Through Terminal Block, 2.5mm² Nominal Cross Section, 0.5A Maximum Load Current - PT 2,5-TWIN-DIO/R-L - 3210253
Too many elements in your system and not enough connections? Link electrical devices to your cabinet with this feed-through terminal block from Phoenix Contact. It lets you connect conductors without cutting or splicing them, so it's a straightforward option for busy setups. To cut installation errors out of the equation, there's a gap between each port so you won't get crossed wires.
The unit's push-in CLIPLINE design makes feeding in wires a breeze. As it handles sizes from 26 to 12AWG, it's widely compatible. Thanks to an 800V voltage rating, you can trust it to take the strain in heavy-duty industrial systems. If you want to extend your system further, use bridge accessories (such as 652-9440) to hook up multiple blocks at once.
The unit's push-in CLIPLINE design makes feeding in wires a breeze. As it handles sizes from 26 to 12AWG, it's widely compatible. Thanks to an 800V voltage rating, you can trust it to take the strain in heavy-duty industrial systems. If you want to extend your system further, use bridge accessories (such as 652-9440) to hook up multiple blocks at once.
Features & Benefits
• Slim dimensions of 5.2 (W) x 60.5 (L) x 44mm (D) to slide effortlessly into busy setups
• Fits securely on standard 35/15 and 35/7.5 DIN rails for easy mounting in your existing system
• PA insulation is flame-retardant to minimise the risk and spread of electrical fires
• Light weight of 8.9g won't put unnecessary strain on your equipment
• Fits securely on standard 35/15 and 35/7.5 DIN rails for easy mounting in your existing system
• PA insulation is flame-retardant to minimise the risk and spread of electrical fires
• Light weight of 8.9g won't put unnecessary strain on your equipment
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
