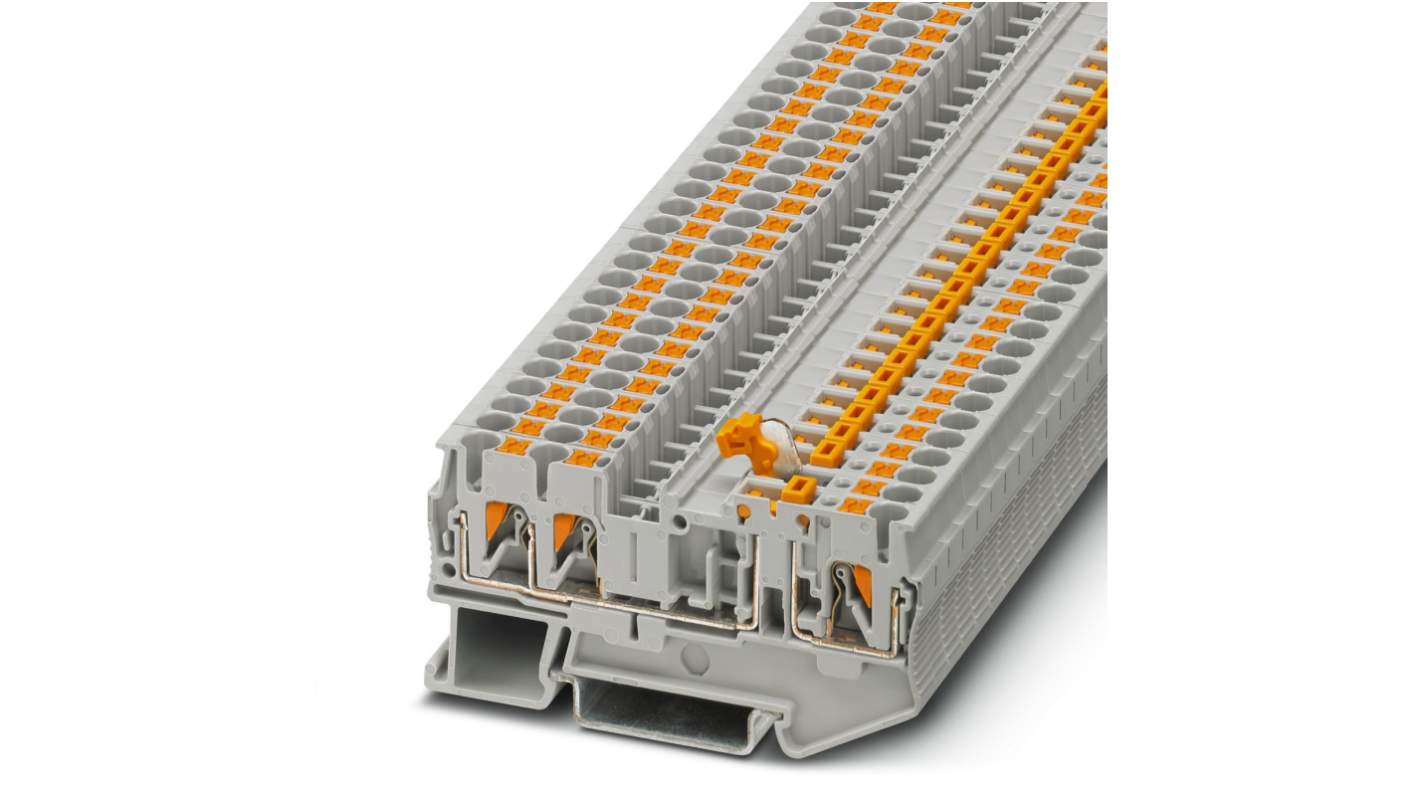

Protect your equipment from overcurrent with this knife-disconnect terminal block from Phoenix Contact. Thanks to the central lever and latching design, opening circuits quickly is a straightforward matter. As there's no need to pull out your wires, this is an easy way to turn power on and off. Your conductors connect at the front of the block using push-in terminals, so installation is just as swift.
Integrated test points in the terminals let you measure currents for monitoring purposes. The double-function shaft means you can use FBS bridges (742-7459) to link this block to others in the CLIPLINE range. You can also snap it onto any standard 35mm DIN rail in seconds, so it's a convenient choice. This makes it a useful addition to control cabinets in automation and electrical distribution applications.

• Slim width of 5.2mm saves rail space in crowded cabinets
• Accepts wires with cross sections between 0.14 and 4mm² for flexibility
• Rugged PA housing resists impacts to boost durability
• Safe to use in harsh conditions thanks to an operating temperature range of -60°C to +105°C

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
