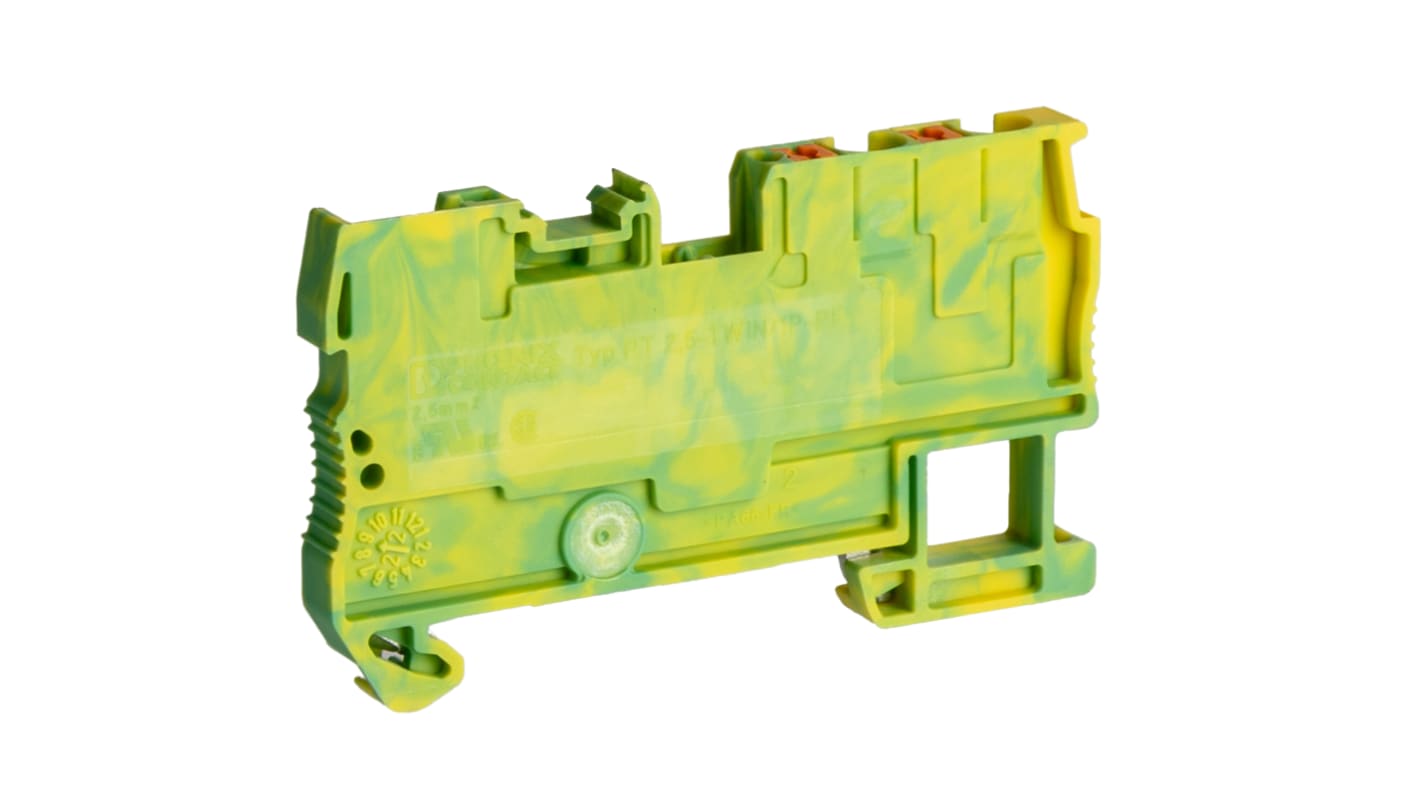

Phoenix Contact 3209659 PT 2.5-TWIN/1P-PE Series Green/Yellow, 0.14 → 4mm², Single-Level, Plug In Termination
- RS Stock No.:
- 687-9580
- Mfr. Part No.:
- 3209659
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£33.13
(exc. VAT)
£39.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 120 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £3.313 | £33.13 |
*price indicative
- RS Stock No.:
- 687-9580
- Mfr. Part No.:
- 3209659
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Green/Yellow | |
Number of Levels | Single | |
Series | PT 2.5-TWIN/1P-PE | |
American Wire Gauge | 26 → 12AWG | |
Termination Method | Plug In | |
Cable CSA | 0.14 → 4mm² | |
Model Number | PT 2,5-TWIN/1P-PE | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
Series PT 2.5-TWIN/1P-PE | ||
American Wire Gauge 26 → 12AWG | ||
Termination Method Plug In | ||
Cable CSA 0.14 → 4mm² | ||
Model Number PT 2,5-TWIN/1P-PE | ||
- COO (Country of Origin):
- DE
Phoenix Contact PT 2.5-TWIN/1P-PE Series DIN Rail Terminal Block, 26 to 12 AWG, Plug-In Termination Method - 3209659
This DIN rail terminal block is essential for various electrical applications, providing effective connectivity and termination. It is designed for straightforward integration within control cabinets and distribution boards, playing a crucial role in automation and electrical systems while ensuring reliable performance in challenging environments.
Features & Benefits
• Accommodates wire sizes from 26AWG to 12AWG for versatility
• Plug-in design simplifies maintenance and replacement tasks
• Rated for high voltage applications up to 6kV
• Compact single-level design optimises space utilisation
• Compatible with 2.5mm² cable connectors for versatile installations
• Plug-in design simplifies maintenance and replacement tasks
• Rated for high voltage applications up to 6kV
• Compact single-level design optimises space utilisation
• Compatible with 2.5mm² cable connectors for versatile installations
Applications
• Used in control panels for automation systems
• Suitable for power distribution applications
• Integrated into electrical systems requiring high voltage durability
• Suitable for power distribution applications
• Integrated into electrical systems requiring high voltage durability
Can it operate in extreme temperatures?
Yes, it functions efficiently within a temperature range of -60 to 110°C.
Is additional equipment required for installation?
No additional equipment is usually necessary
it is designed for simple mounting on DIN rails.
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
