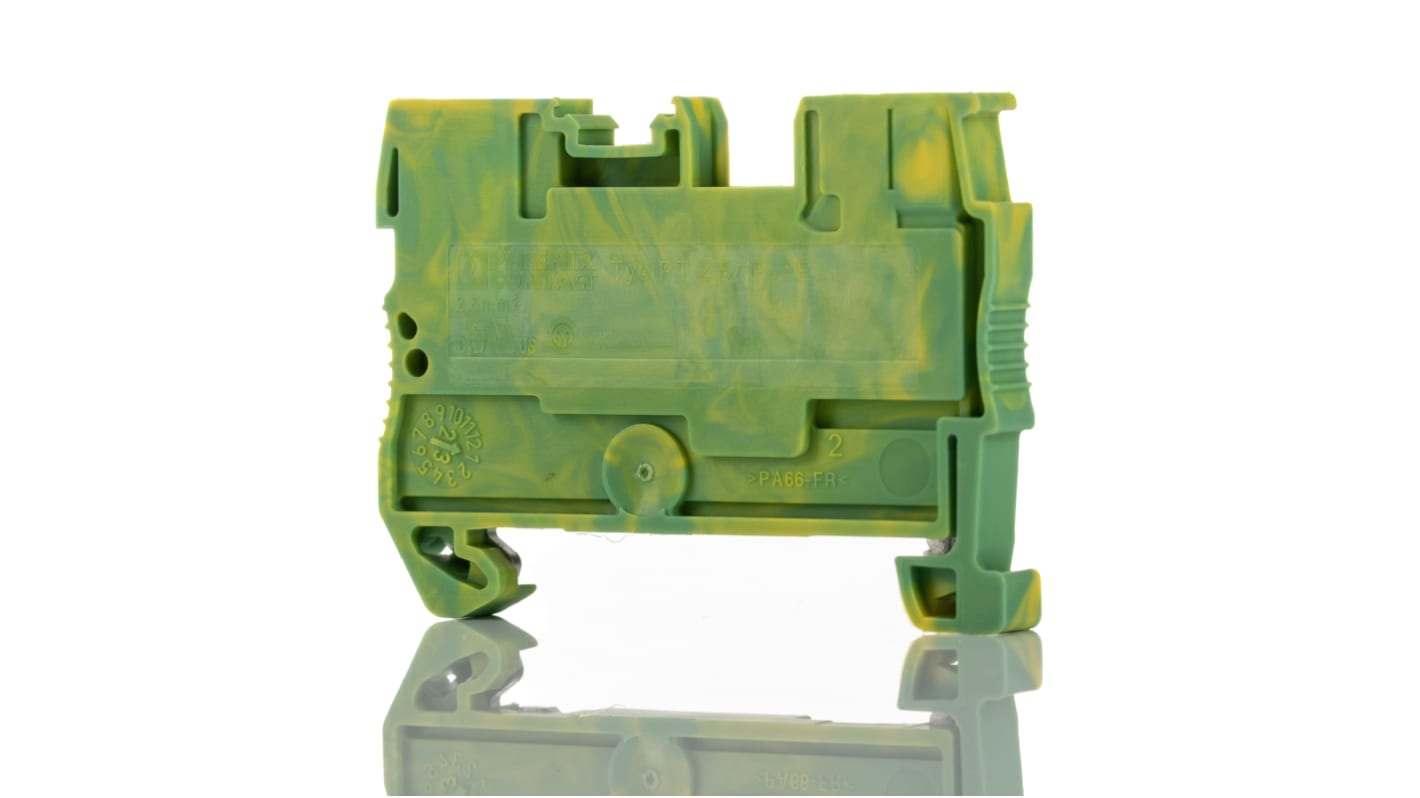

Phoenix Contact 3210059 PT 2.5/1P-PE Series Earth Terminal Block Yellow, Green, 0.14mm², 4 mm², 1-Level, Push-in
- RS Stock No.:
- 687-9603
- Distrelec Article No.:
- 304-35-910
- Mfr. Part No.:
- 3210059
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£28.79
(exc. VAT)
£34.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 90 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.879 | £28.79 |
*price indicative
- RS Stock No.:
- 687-9603
- Distrelec Article No.:
- 304-35-910
- Mfr. Part No.:
- 3210059
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Earth Terminal Block | |
| Colour | Yellow, Green | |
| Sub Type | Triple-Level | |
| Number of Levels | 1 | |
| Series | PT 2.5/1P-PE | |
| Minimum Wire Size AWG | 26AWG | |
| Cable CSA | 0.14, 4mm² | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Push-in | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EAC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Earth Terminal Block | ||
Colour Yellow, Green | ||
Sub Type Triple-Level | ||
Number of Levels 1 | ||
Series PT 2.5/1P-PE | ||
Minimum Wire Size AWG 26AWG | ||
Cable CSA 0.14, 4mm² | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Minimum Operating Temperature -60°C | ||
Termination Type Push-in | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EAC | ||
- COO (Country of Origin):
- DE
Phoenix Contact Earth Terminal Block, 6kV Rated Surge Voltage, Flame-Retardant - PT 2,5/1P-PE - 3210059
Keep excess electrical charge on the straight and narrow with this earth terminal block from Phoenix Contact. It stops stray current from tripping up your equipment's performance, giving you the benefit of interference-free power transmission.
Thanks to push-in connectors, you can rest assured the unit's a cinch to wire, without using any tools. PA insulation puts a safe barrier between you and the electric current, so there's minimal chance of shock. A rated surge voltage of 6kV halts short circuits in their tracks, which protects devices from power spikes.
This versatile product finds wide use in energy facilities and building management, as well as railway and plant engineering applications. It meets UL 94-V0 flammability standards, which makes it flame-retardant and unlikely to contribute to a fire. Its universal green and yellow colour lets you immediately identify it as a grounding block.
Features & Benefits
• Compact dimensions of 48.5 (L) x 5.2 (W) x 35.3mm (H) to maximise packing efficiency on your distribution board
• Snaps onto a DIN rail for tool-free installation
• Resists shock, making it suitable to use in harsh environments
