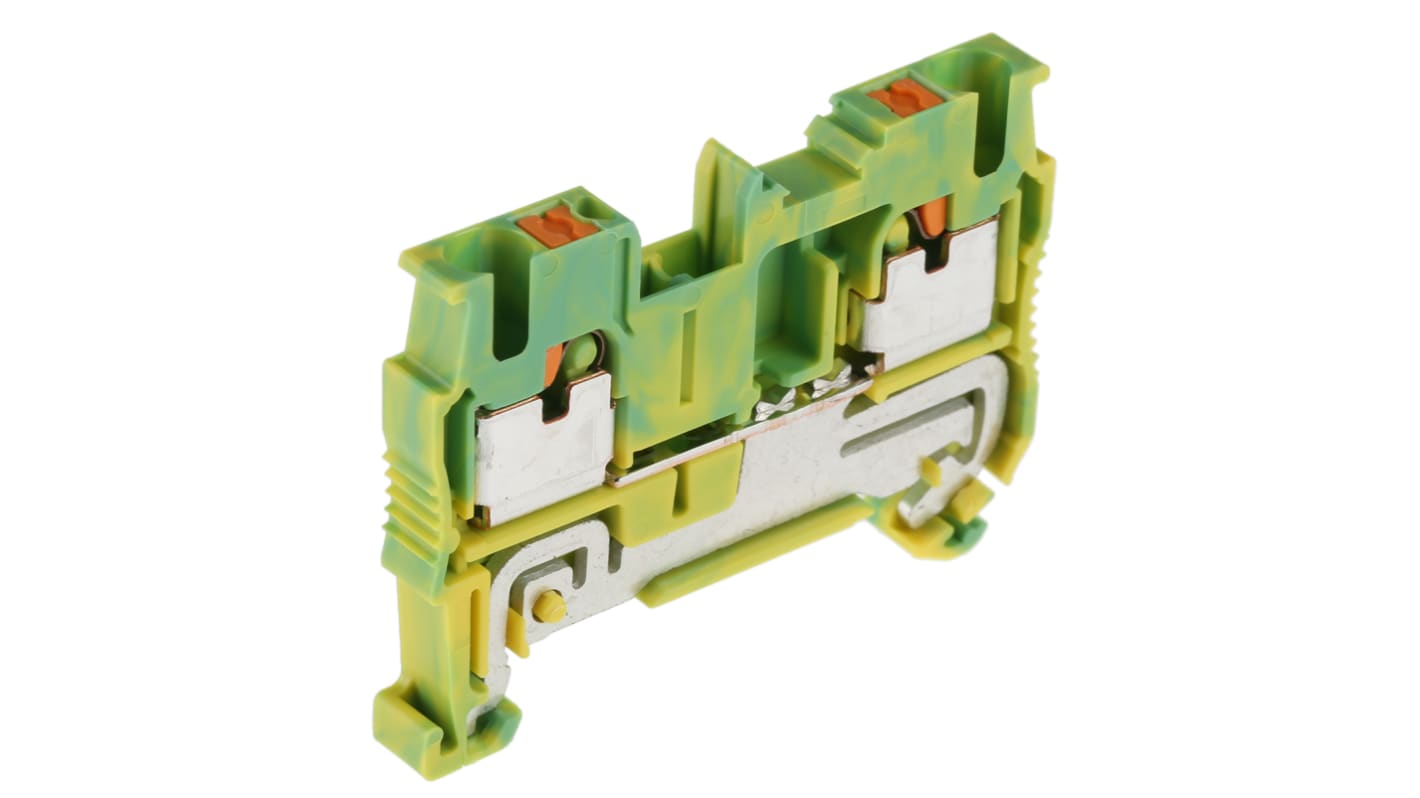

Phoenix Contact PT 2.5-PE Series Green/Yellow Earth Terminal Block, 0.14 → 4mm², Single-Level, Push In
- RS Stock No.:
- 687-9411
- Mfr. Part No.:
- 3209536
- Brand:
- Phoenix Contact
3330 In stock - FREE next working day delivery available
1140 available from Europe for delivery within 2 working day(s).
Added
Price Each (In a Pack of 10)
£2.82
(exc. VAT)
£3.38
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £2.82 | £28.20 |
60 - 110 | £2.68 | £26.80 |
120 + | £2.567 | £25.67 |
*price indicative |
- RS Stock No.:
- 687-9411
- Mfr. Part No.:
- 3209536
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Earth Terminal Block, Push-In Connection, 6kV Rated Surge Voltage - PT 2,5-PE - 3209536
Clamp down on faulty currents in your electrical system by using this earth terminal block from Phoenix Contact. With its 2-connection design, you can set up 2 wires to redirect excess currents to the ground, shielding your panel from short circuits and current overload.
Push-in termination lets you attach your cables in a jiffy, for a quick and tool-free setup. As the block takes wires that range in size from 26 to 12AWG, you'll find it handy when setting up cables of different sizes.
With built-in finger and back-of-the-hand protection, you can safely touch this device without worrying about getting a jolt. As it has a shock duration of up to 18ms, rest assured that it reliably stands up to demanding workplaces.
Push-in termination lets you attach your cables in a jiffy, for a quick and tool-free setup. As the block takes wires that range in size from 26 to 12AWG, you'll find it handy when setting up cables of different sizes.
With built-in finger and back-of-the-hand protection, you can safely touch this device without worrying about getting a jolt. As it has a shock duration of up to 18ms, rest assured that it reliably stands up to demanding workplaces.
Features & Benefits
Industry-standard green and yellow housing for quick identification in crowded installations
Rated surge voltage of 6kV to withstand rogue currents
Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
ATEX-certified for safe use in potentially explosive environments
PA housing offers insulation protection to help prevent electric shocks
Rated surge voltage of 6kV to withstand rogue currents
Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
ATEX-certified for safe use in potentially explosive environments
PA housing offers insulation protection to help prevent electric shocks
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Green/Yellow |
Number of Levels | Single |
American Wire Gauge | 26 → 12AWG |
Series | PT 2.5-PE |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +110°C |
Hazardous Area Certification | ATEX |
Standards Met | ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL |
Model Number | PT 2,5-PE |
