Phoenix Contact 3210198 PT 2.5-TWIN-TGB Series Grey, 0.14 → 4mm², Single-Level, Push In Termination
- RS Stock No.:
- 687-9543
- Mfr. Part No.:
- 3210198
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£20.65
(exc. VAT)
£24.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 280 unit(s) ready to ship
- Plus 90 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £2.065 | £20.65 |
*price indicative
- RS Stock No.:
- 687-9543
- Mfr. Part No.:
- 3210198
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Single | |
American Wire Gauge | 26 → 12AWG | |
Series | PT 2.5-TWIN-TGB | |
Voltage Rating | 400 V | |
Termination Method | Push In | |
Cable CSA | 0.14 → 4mm² | |
Current Rating | 20A | |
Model Number | PT 2,5-TWIN-TG | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
American Wire Gauge 26 → 12AWG | ||
Series PT 2.5-TWIN-TGB | ||
Voltage Rating 400 V | ||
Termination Method Push In | ||
Cable CSA 0.14 → 4mm² | ||
Current Rating 20A | ||
Model Number PT 2,5-TWIN-TG | ||
- COO (Country of Origin):
- PL

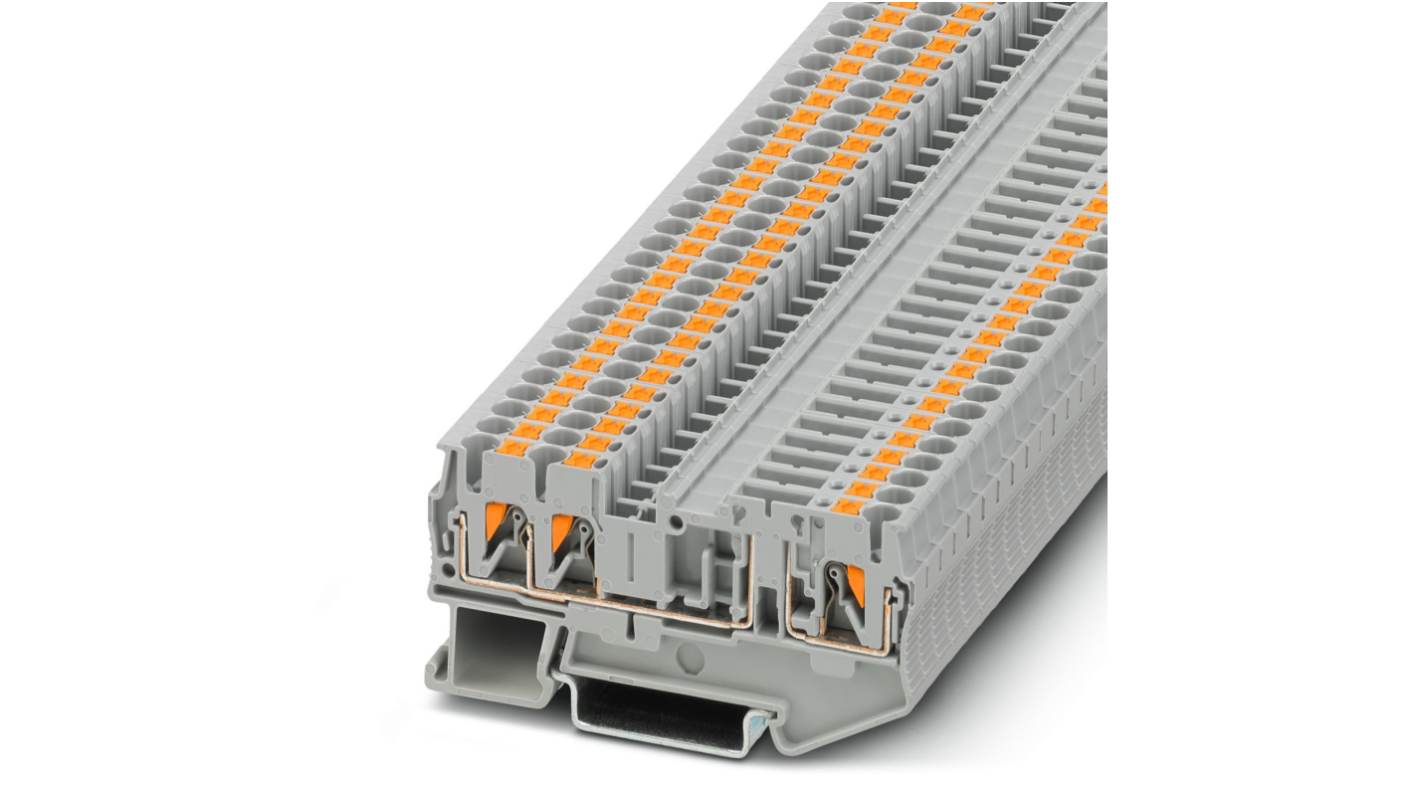

Knife Disconnect Terminal Blocks MT/TG
Phoenix Contact brings you a great feed-through terminal block with knife disconnect option with PT Push-In technology. The integrated double function shaft located on the one side of the disconnect point and the integrated test contact on the other side provide for comfortable testing.
Features and benefits:
- 50 % less insertion force
- Direct plugging from 0.34 mm²
- Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
- High current carrying capacity: 20A, 400V
- Flexibly applicable with standardized plug-in zone for function elements
- Standard plug-in bridges for all power distribution tasks
Accessories:
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
