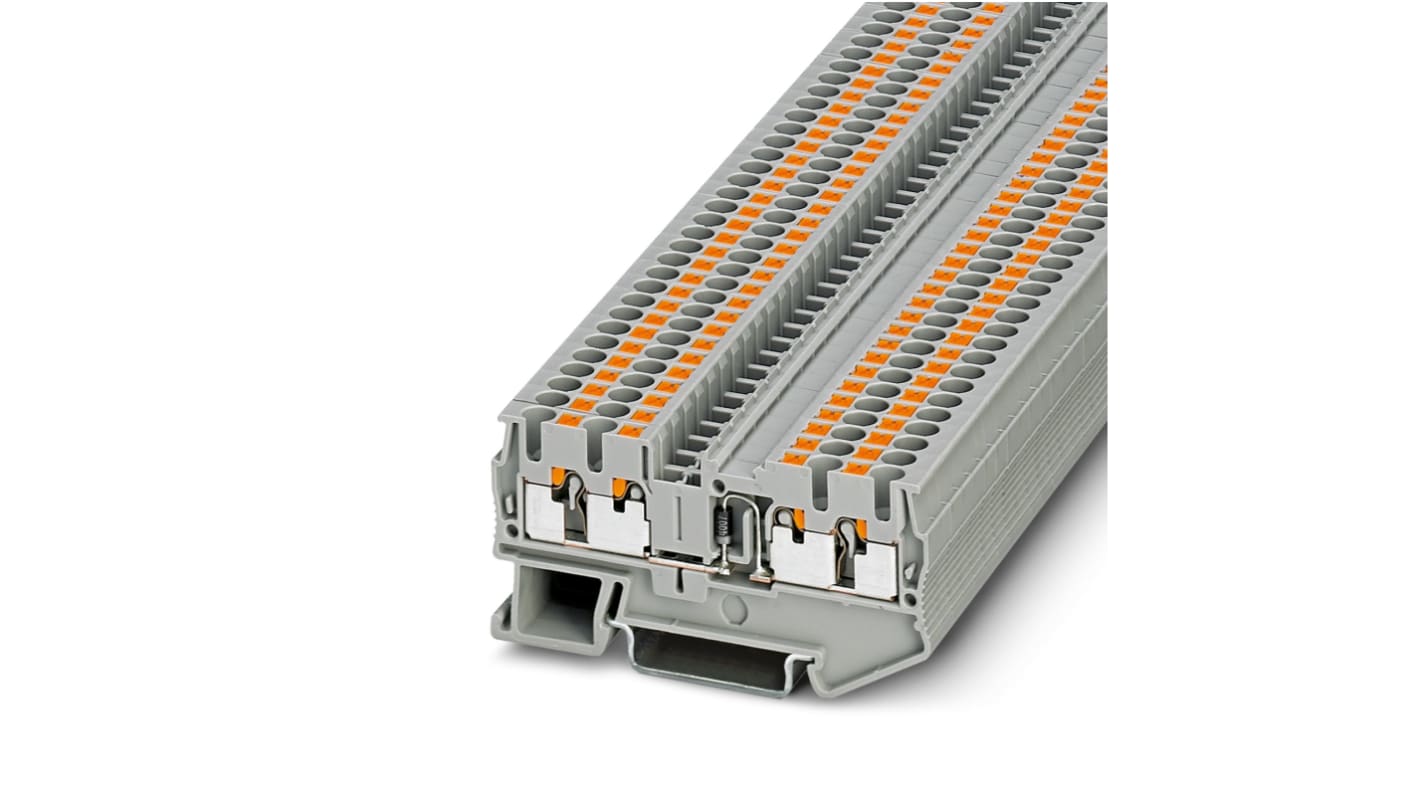

Phoenix Contact 3210279 PT 2.5-QUATTRO-DIO/R-L Series Grey, 0.14 → 4mm², Single-Level, Push In Termination

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 5 units)*

£18.69

(exc. VAT)

£22.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
  • Plus 15 unit(s) ready to ship from another location
  • Plus 405 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£3.738£18.69

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
687-9745
Mfr. Part No.:
3210279
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Grey

Number of Levels

Single

Voltage Rating

800 V

American Wire Gauge

26 → 12AWG

Series

PT 2.5-QUATTRO-DIO/R-L

Termination Method

Push In

Cable CSA

0.14 → 4mm²

Current Rating

500mA

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+110°C

Standards Met

CSA, cURus, EAC

Model Number

PT 2,5-QUATTRO-DIO/R-L

COO (Country of Origin):
PL

Phoenix Contact PT 2.5-QUATTRO-DIO/R-L Series Feed Through Terminal Block, 26 to 12 AWG American Wire Gauge, 800V - 3210279


This feed-through terminal block is essential for reliable electrical connections in various applications. It features a compact form and a push-in termination method, making it suitable for confined spaces. The terminal supports conductor cross-sections from 0.14mm² to 4mm² and operates efficiently within a temperature range of -60°C to +110°C.

Features & Benefits


• Push-in connection allows for tool-free and quick installation
• Current rating of 500mA ensures optimal performance
• Voltage rating of 800V enhances safety for high-voltage applications
• Compact design is suitable for tight installations
• Integrated 1N4007 diode facilitates dependable current flow

Applications


• Suitable for automation and control systems
• Ideal for use in electrical panels and cabinets
• Effective in signal processing applications
• Used in rail vehicle electrical systems
• Compatible with rigid and flexible conductors

Will it meet industry safety standards?


Yes, it meets CSA, EAC, and cULus certifications.


Push-In Connection Terminal Blocks


The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
