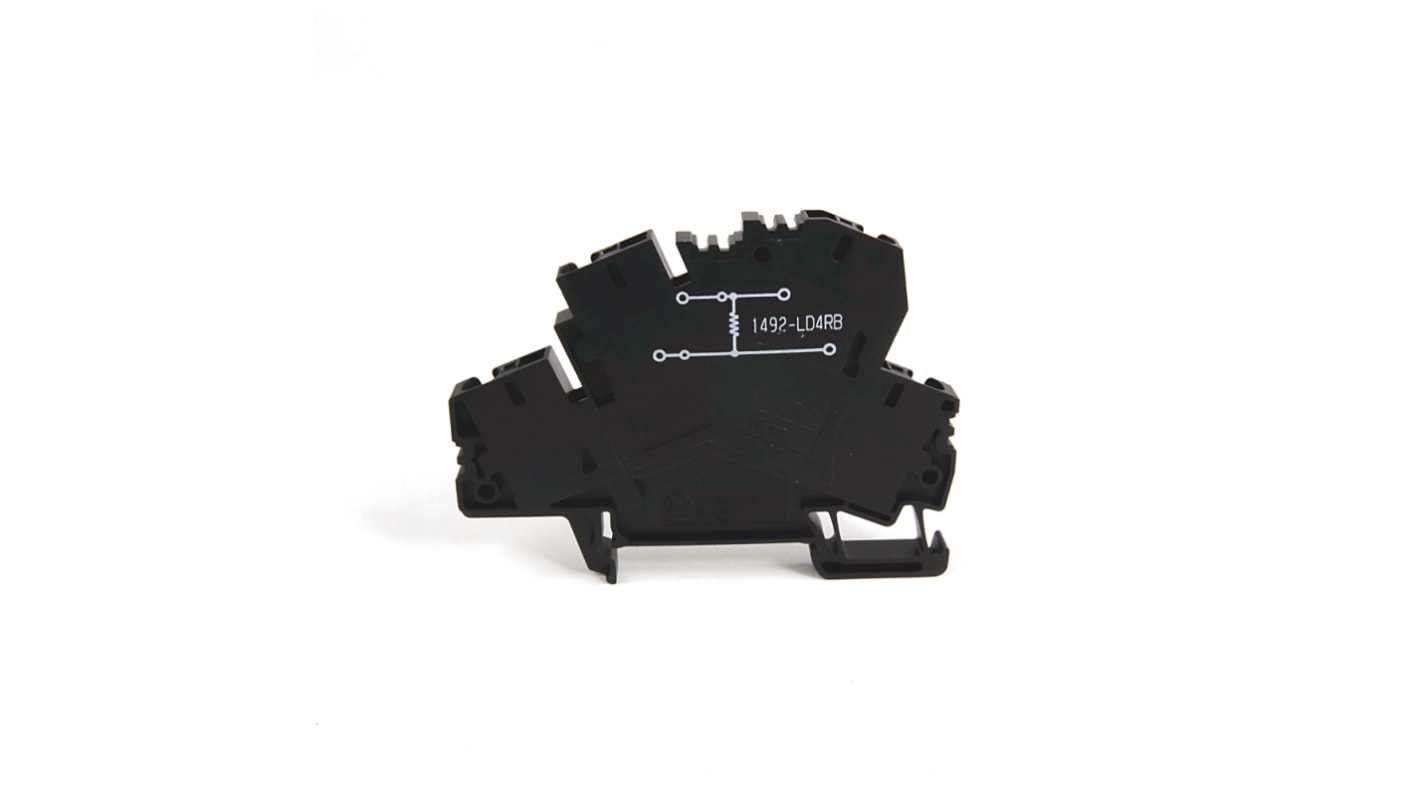

Allen Bradley 1492-LD4RB201 1492 Series DIN Rail Terminal Block Black, 4 mm², Spring Clamp
- RS Stock No.:
- 220-1744
- Mfr. Part No.:
- 1492-LD4RB201
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£6.42
(exc. VAT)
£7.70
(inc. VAT)
Add 8 units to get free delivery
Temporarily out of stock
- Shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.42 |
*price indicative
- RS Stock No.:
- 220-1744
- Mfr. Part No.:
- 1492-LD4RB201
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | DIN Rail Terminal Block | |
| Colour | Black | |
| Sub Type | Two-Circuit Feed Through | |
| Series | 1492 | |
| Voltage | 600 V, 800 V | |
| Cable CSA | 4 mm² | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 10 AWG | |
| Fused | No | |
| Terminal Block Current | 32A | |
| Termination Type | Spring Clamp | |
| Minimum Operating Temperature | -50°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | CSA, IEC, UL | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type DIN Rail Terminal Block | ||
Colour Black | ||
Sub Type Two-Circuit Feed Through | ||
Series 1492 | ||
Voltage 600 V, 800 V | ||
Cable CSA 4 mm² | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 10 AWG | ||
Fused No | ||
Terminal Block Current 32A | ||
Termination Type Spring Clamp | ||
Minimum Operating Temperature -50°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals CSA, IEC, UL | ||
- COO (Country of Origin):
- DE
The Rockwell Automation two circuit feed through block having two level block with a selectable metal oxide film resistor value between the 2 levels.
Resistance is 200 Ohm
