Weidmuller ZQV Series Jumper Bar for Use with DIN Rail Terminal Blocks
- RS Stock No.:
- 426-2779
- Mfr. Part No.:
- 1754290000
- Brand:
- Weidmüller

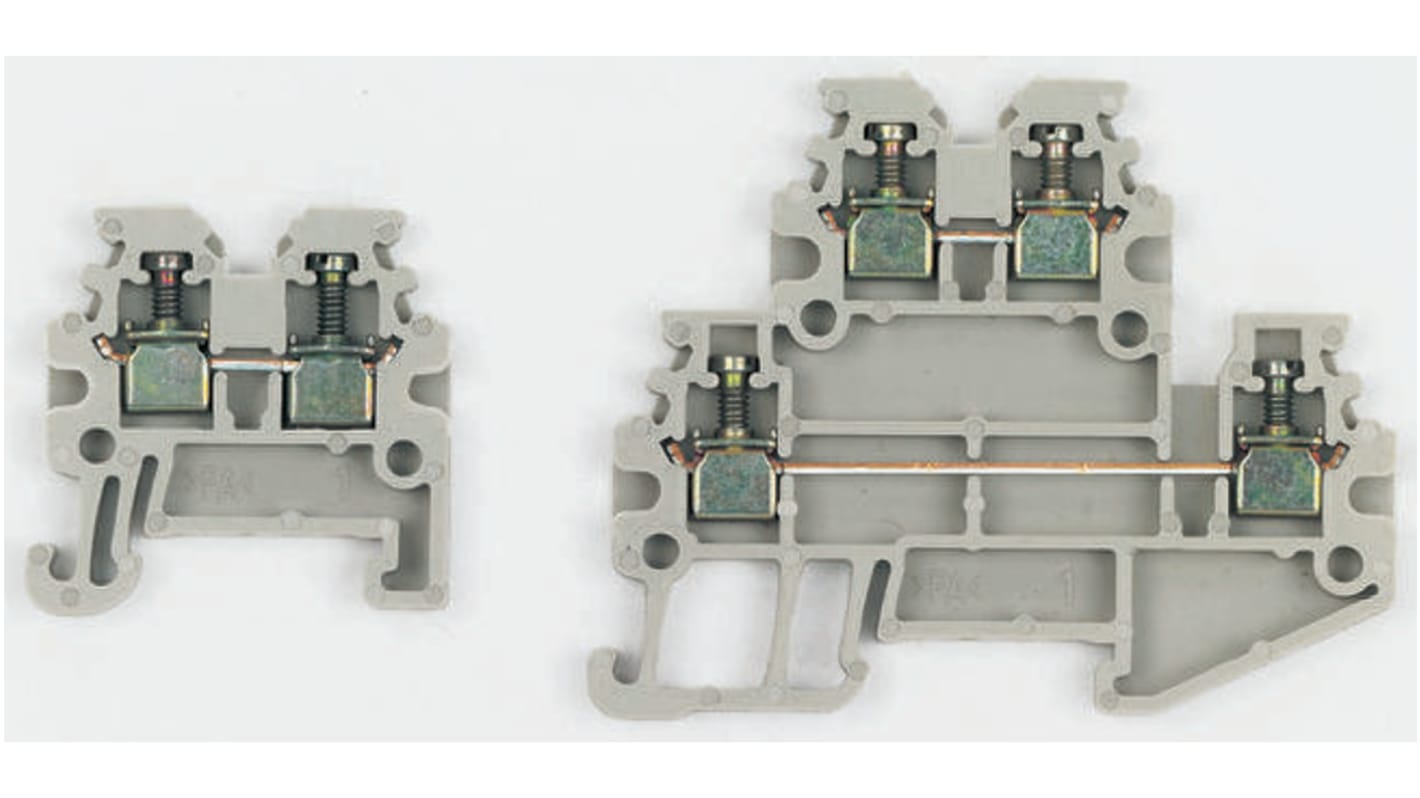

Image representative of range
Subtotal (1 pack of 5 units)*
£16.31
(exc. VAT)
£19.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £3.262 | £16.31 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.872
(exc. VAT)
£1.046
(inc. VAT)
- RS Stock No.:
- 426-2779
- Mfr. Part No.:
- 1754290000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Accessory Type | Jumper Bar | |
Series | ZQV | |
For Use With | DIN Rail Terminal Blocks | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Accessory Type Jumper Bar | ||
Series ZQV | ||
For Use With DIN Rail Terminal Blocks | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
Micro Terminals
Single or double deck feed through versions, for applications where space is at a premium.
Pitch is 3.5mm, with heights of 25mm (standard), and 38mm (double deck).
Pitch is 3.5mm, with heights of 25mm (standard), and 38mm (double deck).
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Approvals
CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EExe; EExI Acceptance
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
