- RS Stock No.:
- 425-320
- Mfr. Part No.:
- 1054460000
- Brand:
- Weidmüller
499 In stock - FREE next working day delivery available
135 available from Europe for delivery within 1 working day(s).
Added
Price 1 Pack of 5
£17.06
(exc. VAT)
£20.47
(inc. VAT)
Pack(s) | Per Pack | Per unit* |
1 + | £17.06 | £3.412 |
*price indicative |
- RS Stock No.:
- 425-320
- Mfr. Part No.:
- 1054460000
- Brand:
- Weidmüller
Legislation and Compliance
Product Details
BL Terminal Series Compatible
TS32 G rail and TS35 Top Hat rail mounted terminals for use with the BL connector system enabling quick changing of functional units. The cable mounted BL units may be fitted to either the top or side of the terminal block.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
Features:
Rated voltage: 250Vac
Rated current: 16A
Nominal conductor csa: 1.5mm2
Continuous operating temperature: -50 °C to 100 °C
Material: PA 66
To use with terminals
Rated current: 16A
Nominal conductor csa: 1.5mm2
Continuous operating temperature: -50 °C to 100 °C
Material: PA 66
To use with terminals

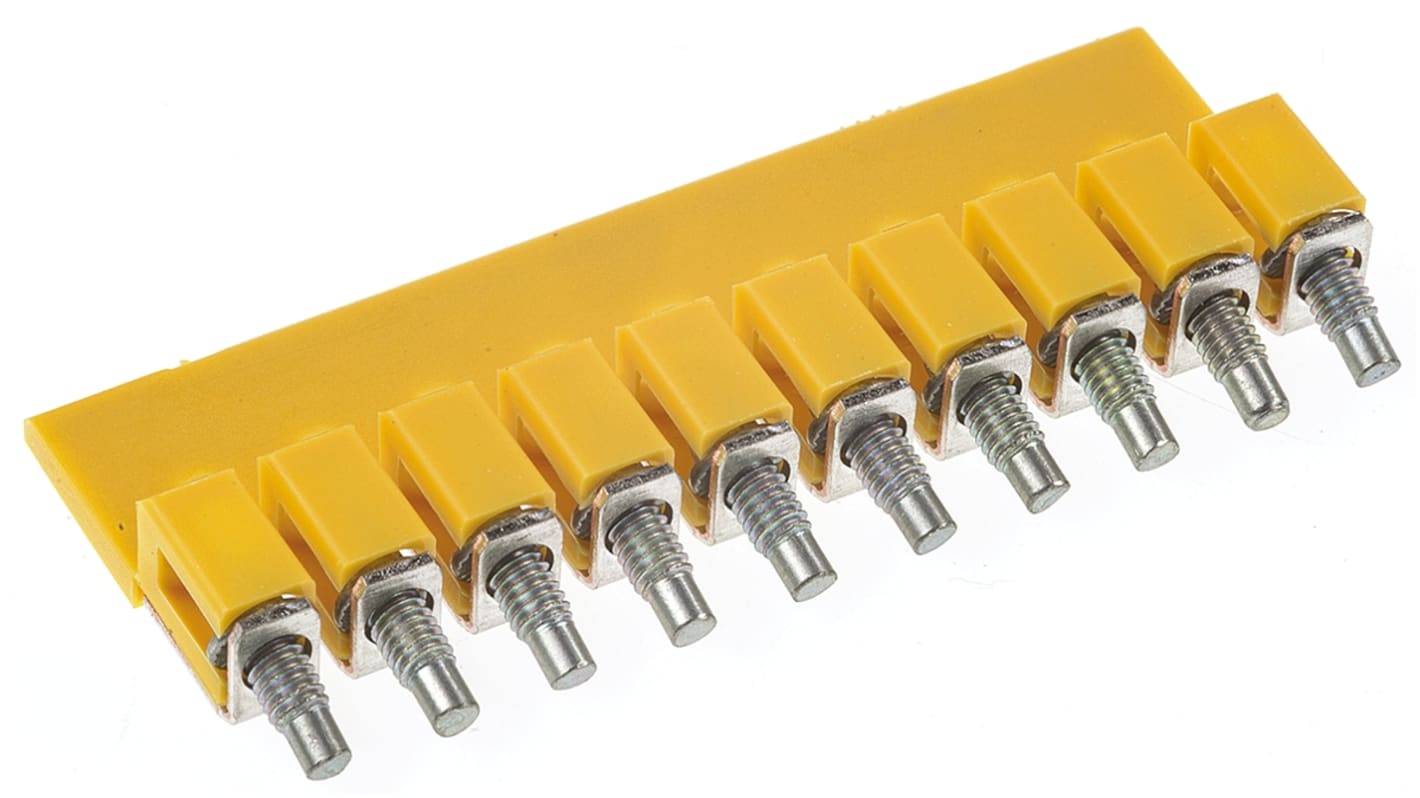

Weidmuller Jumper Bar, 10 Poles, Screw Mounting - WQV Series - 1054460000
Use this 10-pole jumper bar from Weidmuller to connect multiple terminal blocks and distribute power through your system. It's designed for use with DIN rail terminal blocks, helping you build a compact and organised system. The screw connectors allow you to make quick and secure electrical connections. A current rating of 32A means it's suitable for use in high-power applications. The PA66 housing is resistant to heat, impact and wear to give you a long service life.
Features & Benefits
• Broad operating temperature range of -60°C to +130°C for use in harsh environments
• Light weight of just 7.75g minimises strain on your system
• Light weight of just 7.75g minimises strain on your system
Applications
• Process control
• Building installations
• Building installations
What are the advantages of using a jumper bar?
Using a jumper bar means you don't need to individually wire several points together. This can save you time and effort when building your system and gives you a more compact installation.
Where are jumper bars used?
In addition to panels for power distribution, jumper bars are commonly found in applications such as motors and circuit boards.
Specifications
Attribute | Value |
---|---|
Accessory Type | Jumper Bar |
Series | WQV |
For Use With | DIN Rail Terminal Blocks |
Current Rating | 32A |
Mounting Type | Screw |
