Weidmüller ZQV Series Jumper Bar for Use with DIN Rail Terminal Blocks
- RS Stock No.:
- 226-0080
- Distrelec Article No.:
- 304-28-759
- Mfr. Part No.:
- 1608940000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£11.41
(exc. VAT)
£13.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 202 unit(s) ready to ship
- Plus 126 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £11.41 | £2.282 |
*price indicative
- RS Stock No.:
- 226-0080
- Distrelec Article No.:
- 304-28-759
- Mfr. Part No.:
- 1608940000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Accessory Type | Jumper Bar | |
| Product Type | Jumper Bar | |
| Series | ZQV | |
| For Use With | DIN Rail Terminal Blocks | |
| Colour | Yellow | |
| Material | Wemid | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Current Rating | 24A | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Accessory Type Jumper Bar | ||
Product Type Jumper Bar | ||
Series ZQV | ||
For Use With DIN Rail Terminal Blocks | ||
Colour Yellow | ||
Material Wemid | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Current Rating 24A | ||
- COO (Country of Origin):
- DE

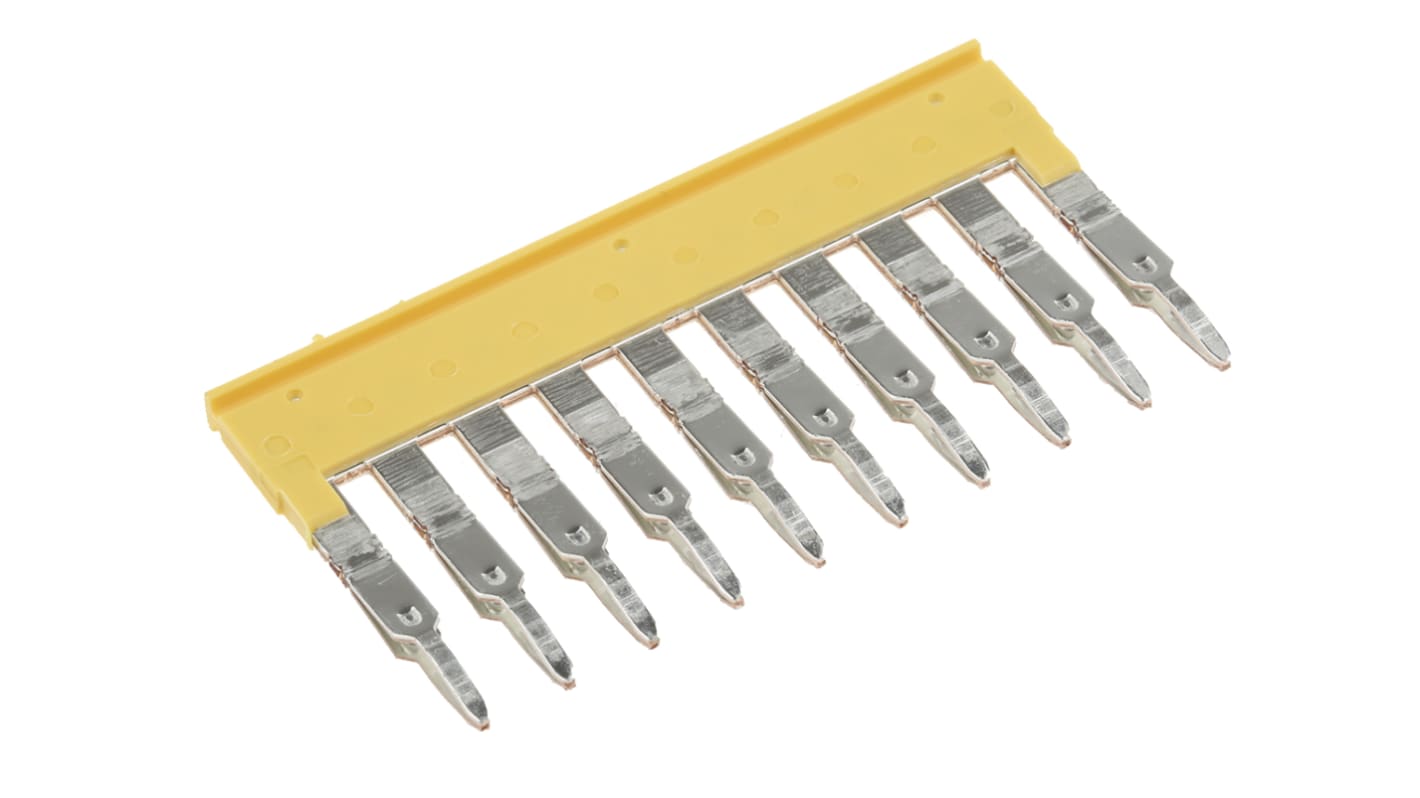

Weidmuller Jumper Bar, 24A Current Rating, 6.7g Weight - ZVQ Series - 1608940000
Link multiple points on your circuit with this jumper bar from Weidmuller. You can use it to distribute power from one source to several components on the network, reducing the wiring needs of your system. Its metal contacts are highly conductive for reliable signal transmission. Thanks to its current rating of 24A, it's a practical choice for use in high-power applications. A 10-way construction lets you link up to 10 terminal connections. You can also cut it as needed, making it a versatile option.
Features & Benefits
• Broad operating temperature range between -50°C and +120°C for use in demanding conditions
• Compact dimensions of 49.3 (H) x 2.8 (W) x 27.6mm (D) for installation in tight spaces
• Wemid housing offers effective insulation to protect you from electric shock
• Light weight of 6.7g to minimise strain on your equipment
Applications
• Circuit breakers
• Plant automation
• Industrial lighting systems
Is this jumper bar flame-retardant?
Yes. This unit stops burning in 10 seconds or less when a fire occurs, so it won't promote the spread of flames in your work environment.
Jumper Bar
The 10 way jumper can have contacts selectively broken off to omit some terminals from connection.
Jumper bars fit flush into the terminals and are capable of carrying the terminals rated current.
For 2-way jumper bar see RS 226-0096 (4mm) or RS 266-0074 (2.5mm)
Note
For general markers and end stops, see ’W’ series accessories, which are compatible.
