Weidmuller QL Series Jumper Bar for Use with DIN Rail Terminal Blocks
- RS Stock No.:
- 197-9569
- Mfr. Part No.:
- 0338300000, 0248500000, 0303000000
- Brand:
- Weidmüller

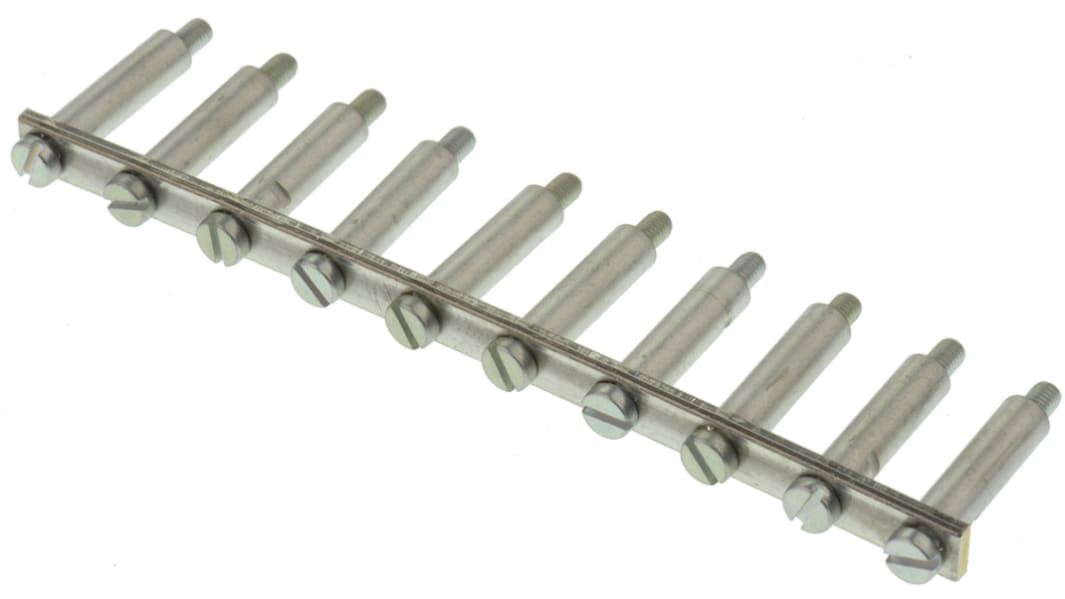

Image representative of range
Subtotal (1 kit)*
£5.14
(exc. VAT)
£6.17
(inc. VAT)
Stock information currently inaccessible
Kit(s) | Per Kit |
---|---|
1 + | £5.14 |
*price indicative
- RS Stock No.:
- 197-9569
- Mfr. Part No.:
- 0338300000, 0248500000, 0303000000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Accessory Type | Jumper Bar | |
Series | QL | |
For Use With | DIN Rail Terminal Blocks | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Accessory Type Jumper Bar | ||
Series QL | ||
For Use With DIN Rail Terminal Blocks | ||
- COO (Country of Origin):
- DE
RSF (Spring Loaded)
Spring loaded terminal accommodates two hook bladed crimp terminals located in the slot in the current bar behind the screw clamp. The second blade is on the underside of the clamp.
Features and Benefits
Clamping yoke technology
Screw connection
Screw connection
Note
RSF jumper bar kits contain 1x 10-way bar, 10 screws and 10 spacers.
Approvals
CSA Certified, ESI
Standards
B 5825:1980; EN 50035
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
