Weidmuller Q Series Jumper Bar for Use with DIN Rail Terminal Blocks, 2A

View this category

Subtotal (1 pack of 5 units)*

£29.61

(exc. VAT)

£35.53

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 230 unit(s) ready to ship
  • Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£5.922£29.61

*price indicative

Sponsored
Weidmuller Jumper Bars
Weidmuller Jumper Bars
Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications
Explore Weidmuller Jumper Bars
RS Stock No.:
475-476
Distrelec Article No.:
304-01-398
Mfr. Part No.:
0368600000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Accessory Type

Jumper Bar

Series

Q

For Use With

DIN Rail Terminal Blocks

Current Rating

2A

Mounting Type

Direct Mounting

Colour

Grey

Pitch

10mm

COO (Country of Origin):
DE

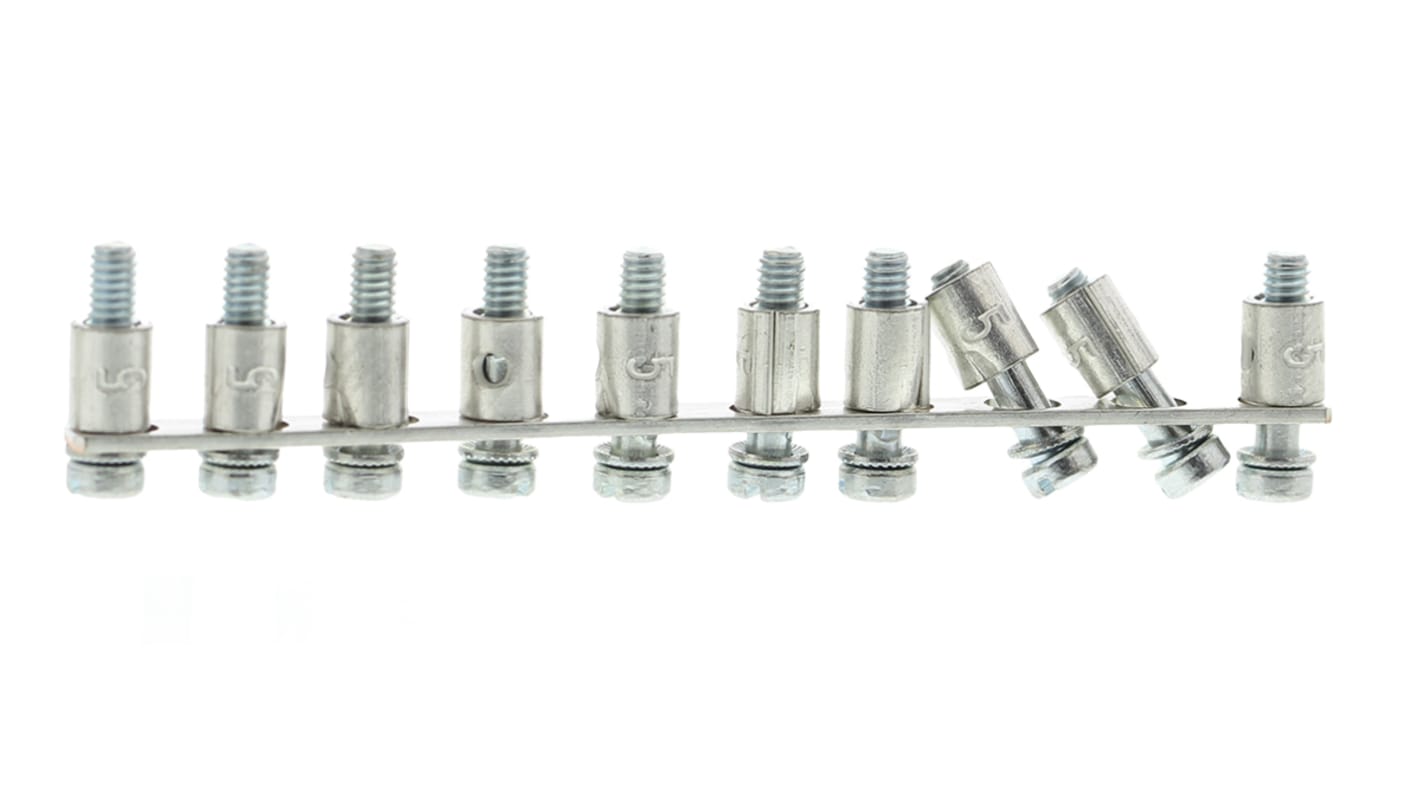

Weidmuller Series Q Jumper Bar, 2A Current Rating, Grey - 0368600000


This jumper bar is an integral electrical accessory designed for seamless integration with DIN rail terminal blocks. The durable grey CuSn material ensures longevity, while its compact dimensions allow for efficient use within constrained spaces.

Features & Benefits


• Facilitates easy mounting and demounting for user convenience
• Provides a large contact surface for high current transmission
• Supports direct mounting for straightforward installation
• Rated for a current of 2A, enhancing circuit performance
• Standardised 10mm pitch simplifies connectivity
• Lightweight design at just 7.88 g for easy handling

Applications


• Used with DIN rail terminal blocks for secure connections
• Ideal for cross-connection in industrial electrical systems
• Effective in automation and control panel
• Utilised in various electronic assemblies and installations

What is the role of the large contact surface in this product?


The large contact surface enables the transmission of high currents while maintaining maximum reliability, reducing the risk of overheating or contact failure in demanding applications.

How does the direct mounting feature benefit installation?


Direct mounting simplifies the installation process, saving time and reducing complexity when integrating the jumper bar into various electrical setups.

What material is used in the construction, and why is it significant?


The jumper bar is made from CuSn, which enhances conductivity and durability, making it suitable for reliable use in electrical connections.

Can this product be effectively used in varying temperature conditions?


Yes, it can operate within a storage temperature range of -25°C to 55°C, making it versatile for diverse environments and applications.


SAK Series


Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
