Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc

View all DIN Rail Power Supplies

Subtotal (1 unit)*

£500.95

(exc. VAT)

£601.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 8 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£500.95

*price indicative

RS Stock No.:
923-6517
Distrelec Article No.:
300-11-084
Mfr. Part No.:
1469520000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Series

PRO ECO

Type

Switched Mode

Electrical Phase

1

Number of Outputs

1

AC or DC Input Voltage

ac, dc

Input Voltage

85 → 264 V ac / 80 → 370V dc

AC or DC Output Voltage

dc

Output Voltage

24V dc

Output Current

40A

Depth

100mm

Width

160mm

Height

125mm

Standards Met

61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101

Mounting Type

DIN Rail Mount

Minimum Temperature

-25°C

Special Features

Compact Size, Easy to Maintain, Flexible, High Efficiency

Maximum Temperature

+70°C

MTBF

>500000h

Ripple And Noise

<50mV

RoHS Status: Exempt

COO (Country of Origin):
CN

Weidmuller DIN Rail Power Supply, 3.5mA Maximum Earth Leakage Current, 85 to 264V AC Input Voltage Range - PRO ECO Series - 1469520000

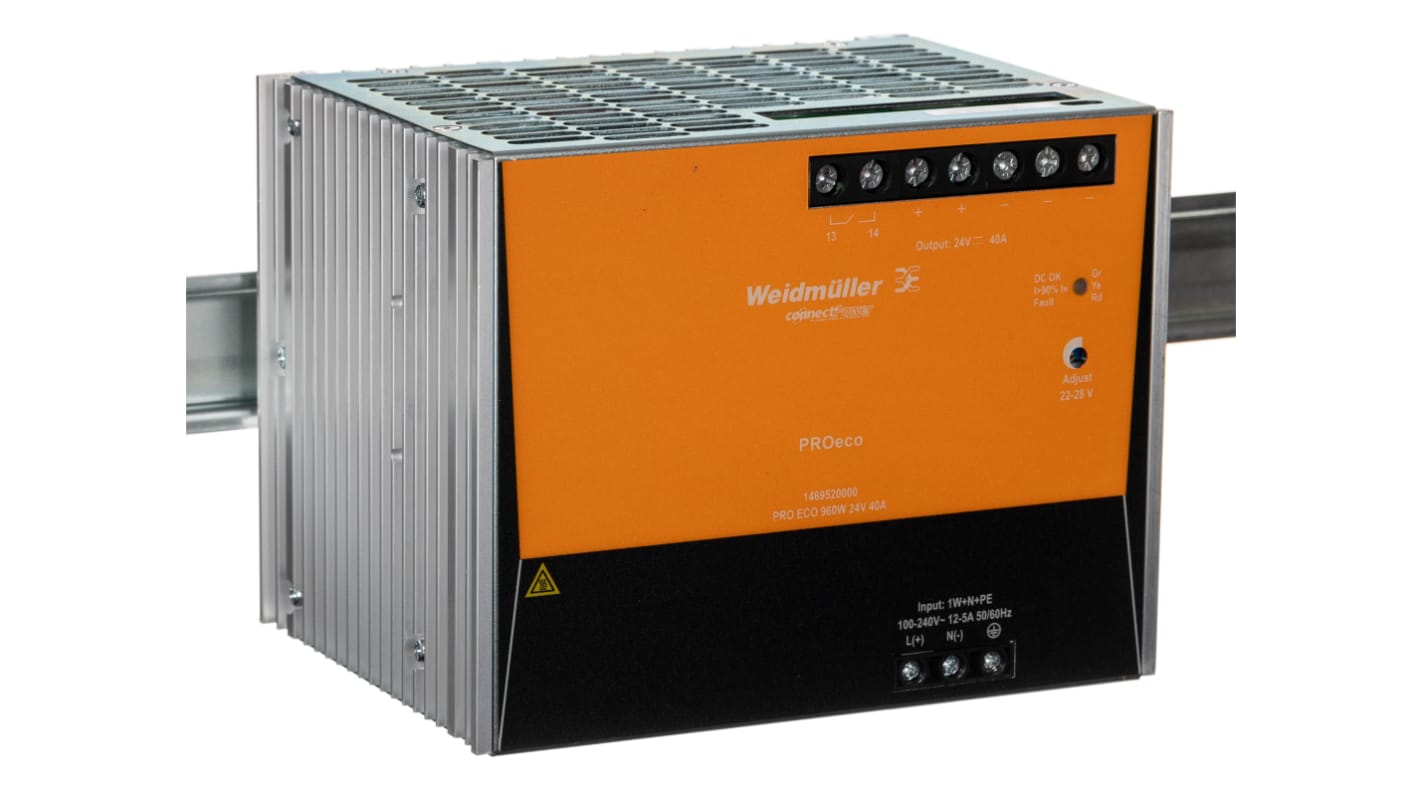

This versatile DIN rail power supply from Weidmuller packs a serious punch in a small package. The compact device measures 125 (H) x 160 (W) x 120mm (D) and has a power output up to 960W, so it has very high power density. This makes it a safe bet for your heavy-load applications like motor starting. You can count on it to provide DC energy from AC or DC supplies, as it converts input voltages between 85 and 264V AC or 80 to 370V DC to a stable output of 24V DC. A 93% efficiency rating means it wastes little energy as heat, so it keeps its cool without the need for a heatsink.

Features & Benefits


• Tricolour LED for clear status indication and easy diagnostics
• Ripple and noise of

Applications


• Process control
• Factory automation
• Power management

What temperatures can I use this DIN rail power supply in?


The unit has a wide operating temperature range of -25°C to +70°C, so you can put it to the test in harsh environments.
