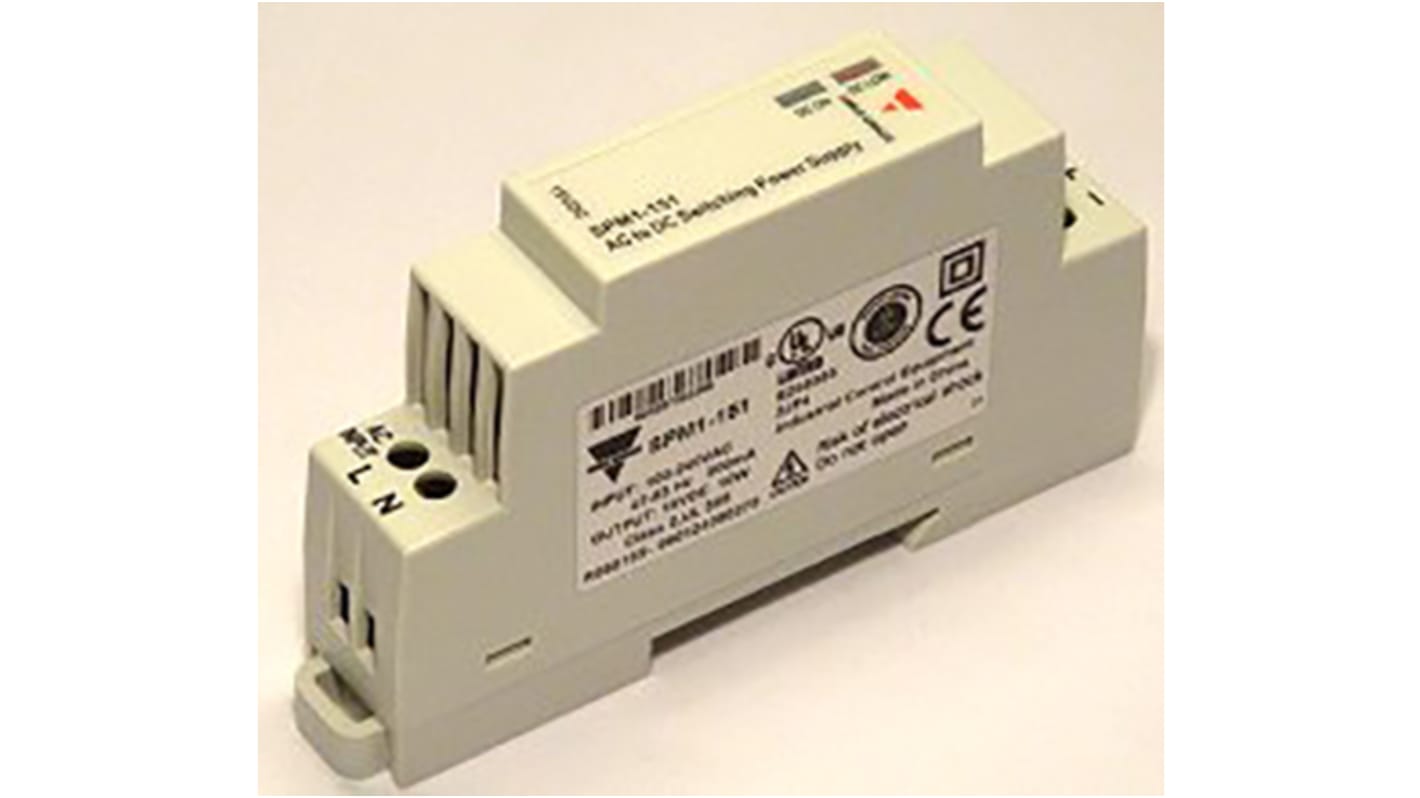

Carlo Gavazzi Switched Mode DIN Rail Power Supply, 90 → 264V ac ac, dc Input, 15V dc dc Output, 670mA Output, 10W
- RS Stock No.:
- 859-3210
- Mfr. Part No.:
- SPM1151
- Brand:
- Carlo Gavazzi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£24.15
(exc. VAT)
£28.98
(inc. VAT)
- RS Stock No.:
- 859-3210
- Mfr. Part No.:
- SPM1151
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Carlo Gavazzi | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac, dc | |
Number of Outputs | 1 | |
Input Voltage | 90 → 264V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 15V dc | |
Output Current | 670mA | |
Dimensions | 18 x 91 x 56.5mm | |
Width | 91mm | |
Height | 91mm | |
Depth | 56.5mm | |
Maximum Temperature | +71°C | |
Load Regulation | ±1% | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -40°C | |
MTBF | 948000h | |
Ripple And Noise | 50mV | |
Select all | ||
---|---|---|
Brand Carlo Gavazzi | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac, dc | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 15V dc | ||
Output Current 670mA | ||
Dimensions 18 x 91 x 56.5mm | ||
Width 91mm | ||
Height 91mm | ||
Depth 56.5mm | ||
Maximum Temperature +71°C | ||
Load Regulation ±1% | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -40°C | ||
MTBF 948000h | ||
Ripple And Noise 50mV | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Carlo Gavazzi SPM Series Switch Mode Power Supply
SPM series of modular switching power supplies from Carlo Gavazzi provide the user with a multi-purpose product suitable for use within automation & building applications. The SPM series is capable of providing up to 60W output power coupled with high efficiency
Highly versatile mounting option via a single DIN module
Internal input filter
Overload protection
Integrated short circuit protection
Up to 88% effiency rating
LED status indication
UL Class 2 output
Internal input filter
Overload protection
Integrated short circuit protection
Up to 88% effiency rating
LED status indication
UL Class 2 output
Switch Mode - Carlo Gavazzi
