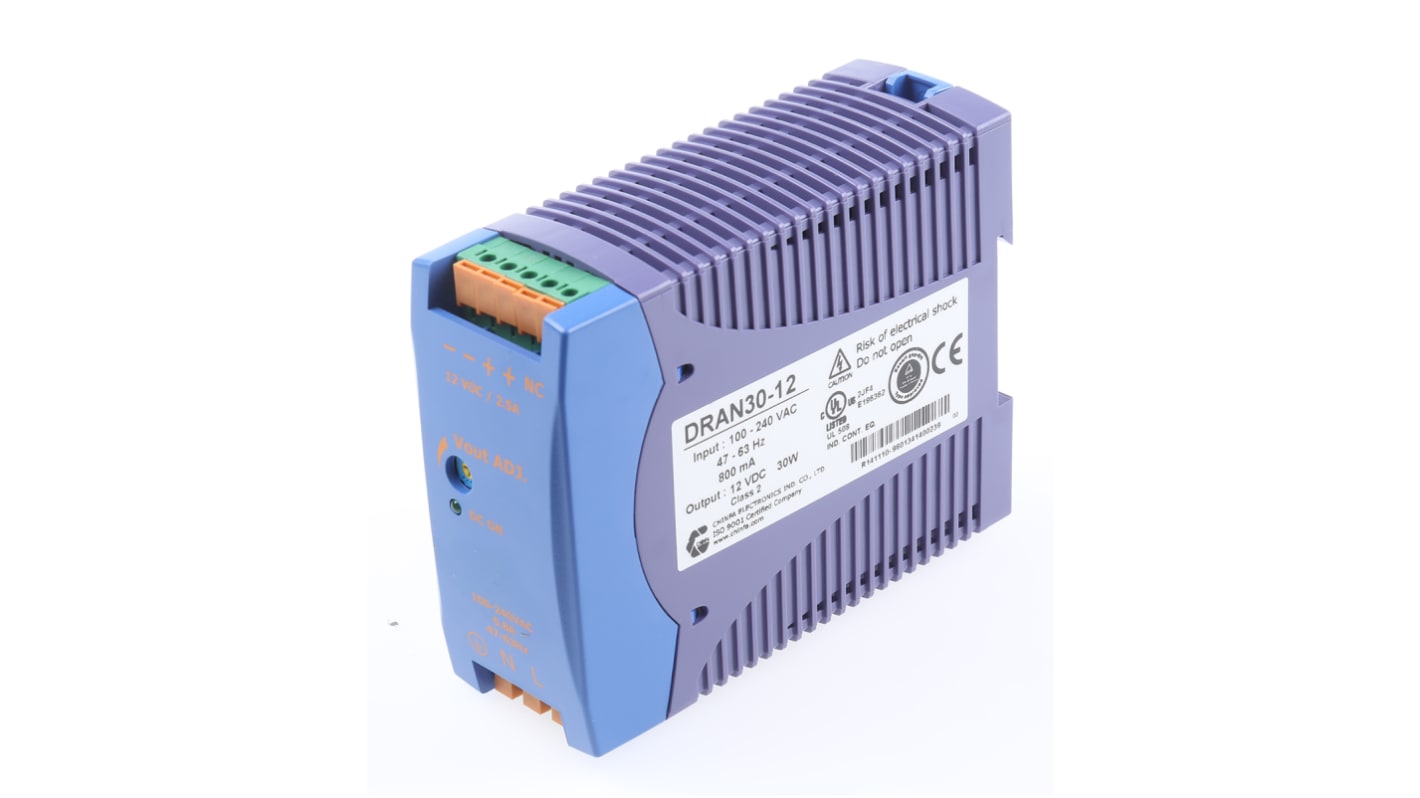

Chinfa DRAN30 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 2.5A Output, 30W

View all DIN Rail Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
789-3981
Mfr. Part No.:
DRAN30-12
Brand:
Chinfa
Find similar products by selecting one or more attributes.
Select all

Brand

Chinfa

Series

DRAN30

Type

Switched Mode

Electrical Phase

1

Number of Outputs

1

AC or DC Input Voltage

ac

Input Voltage

85 → 264V ac

AC or DC Output Voltage

dc

Output Voltage

12V dc

Output Current

2.5A

Dimensions

40.5 x 114 x 90mm

Height

90mm

Depth

114mm

Width

114mm

Mounting Type

DIN Rail Mount

Minimum Temperature

-40°C

Standards Met

EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1

Maximum Temperature

+71°C

Load Regulation

±0.5%

MTBF

582000h

Ripple And Noise

50mV

COO (Country of Origin):
TW

DRAN & DRA PSU's Series


DIN rail power supplies for industrial control automation with universal input, short circuit protection and internal input filter

Universal mains input & 90 - 375Vdc, 90 - 264Vac
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty

Approvals

UL / cUL / TUV / CE
