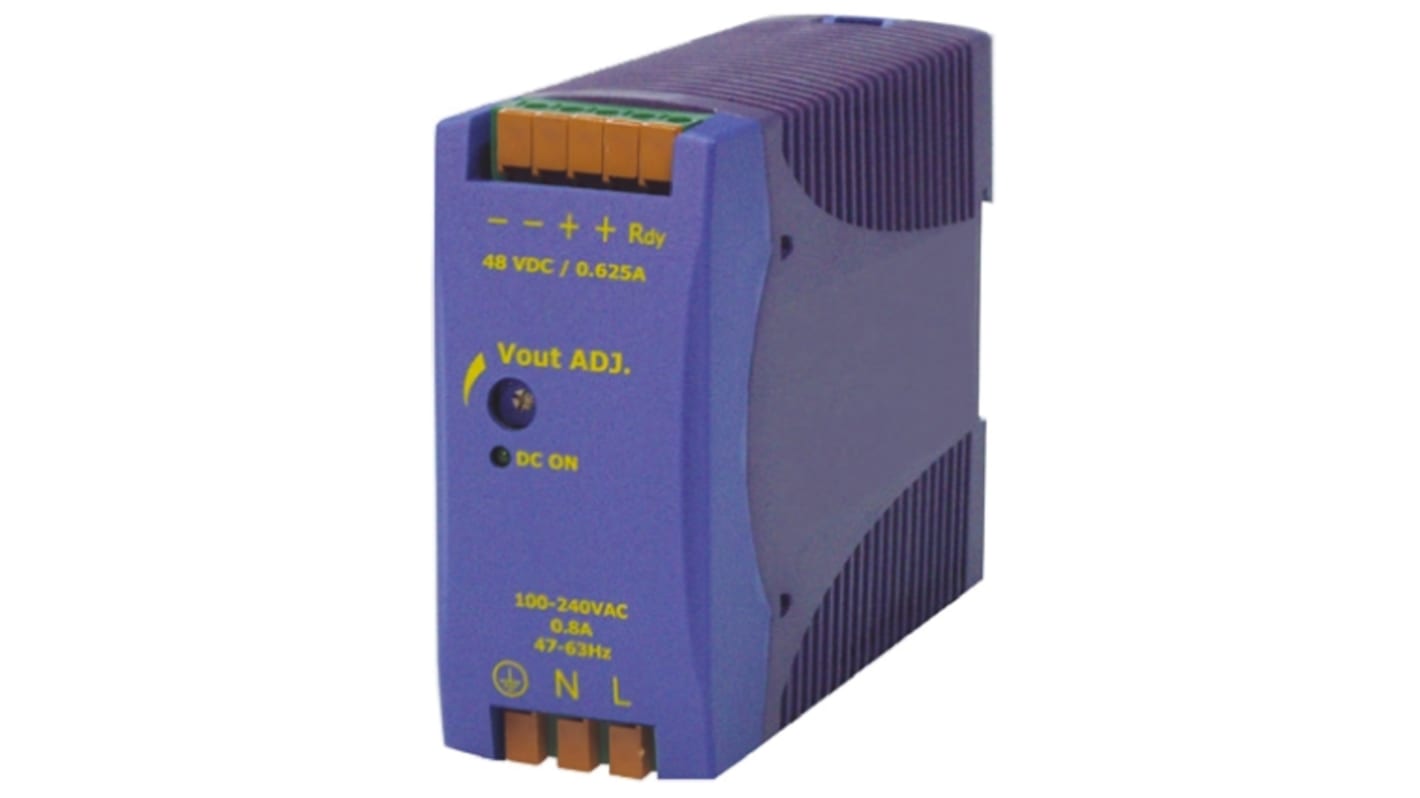

Chinfa DRAN30 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc Output, 625mA Output, 30W
- RS Stock No.:
- 789-3994
- Mfr. Part No.:
- DRAN30-48
- Brand:
- Chinfa
Subtotal (1 unit)*
£55.95
(exc. VAT)
£67.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 999,999,994 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £55.95 |
*price indicative
- RS Stock No.:
- 789-3994
- Mfr. Part No.:
- DRAN30-48
- Brand:
- Chinfa
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Chinfa | |
Series | DRAN30 | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 48V dc | |
Output Current | 625mA | |
Dimensions | 40.5 x 114 x 90mm | |
Width | 114mm | |
Depth | 114mm | |
Height | 90mm | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -40°C | |
Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 | |
MTBF | 609000h | |
Load Regulation | ±0.5% | |
Maximum Temperature | +71°C | |
Ripple And Noise | 50mV | |
Select all | ||
---|---|---|
Brand Chinfa | ||
Series DRAN30 | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 48V dc | ||
Output Current 625mA | ||
Dimensions 40.5 x 114 x 90mm | ||
Width 114mm | ||
Depth 114mm | ||
Height 90mm | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -40°C | ||
Standards Met EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 | ||
MTBF 609000h | ||
Load Regulation ±0.5% | ||
Maximum Temperature +71°C | ||
Ripple And Noise 50mV | ||
- COO (Country of Origin):
- TW
DRAN & DRA PSU's Series
DIN rail power supplies for industrial control automation with universal input, short circuit protection and internal input filter
Universal mains input & 90 - 375Vdc, 90 - 264Vac
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Approvals
UL / cUL / TUV / CE
Switch Mode - Chinfa Electronics
