TRACOPOWER TBL Switched Mode DIN Rail Power Supply 264V ac AC Input 16V dc, 2.5 A Output DC 30 W
- RS Stock No.:
- 667-0848
- Distrelec Article No.:
- 169-90-994
- Mfr. Part No.:
- TBL 030-112
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£65.49
(exc. VAT)
£78.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 74 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.49 |
*price indicative
- RS Stock No.:
- 667-0848
- Distrelec Article No.:
- 169-90-994
- Mfr. Part No.:
- TBL 030-112
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DIN Rail Power Supply | |
| Series | TBL | |
| Maximum Output Voltage | 16V dc | |
| Sub Type | Switched Mode | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC | |
| Power | 30W | |
| Output Current | 2.5A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 52.5 mm | |
| Height | 59.5mm | |
| Depth | 89.5mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL/CSA 60950-1, EN 60950-1, CE | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 81% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DIN Rail Power Supply | ||
Series TBL | ||
Maximum Output Voltage 16V dc | ||
Sub Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Input Voltage Type AC | ||
Power 30W | ||
Output Current 2.5A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 52.5 mm | ||
Height 59.5mm | ||
Depth 89.5mm | ||
Hazardous Area Certification No | ||
Standards/Approvals UL/CSA 60950-1, EN 60950-1, CE | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Efficiency 81% | ||
- COO (Country of Origin):
- CN

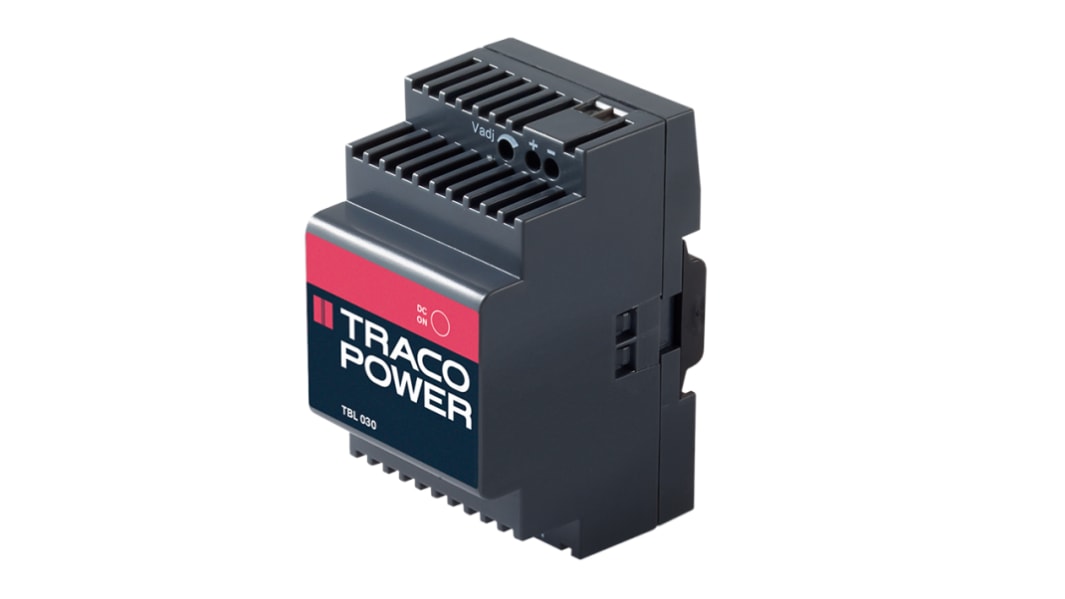

Traco Power Din Rail Power Supply, 30W Power Rating, 81% Efficiency - TBL Series - TBL 030-112
When you need a compact conversion solution that packs a punch, grab this DIN rail power supply from Traco Power. Its 12V DC output is ideal for juicing up demanding automated applications. Thanks to its compact dimensions of 59.5 (L) x 52.5 (W) x 89.5mm (H), the unit slots neatly into enclosures where space is at a premium. The tough plastic casing is shock-resistant to minimise accidental disconnections when things get shaky.
Features & Benefits
• Wide input voltage range between 85 and 264V AC for compatibility with different power sources
• Light weight of 160g puts minimal strain on your installation
• UL 94-V0-rated unit helps prevent the spread of fires, for added safety
• IP20 rating indicates it's touch-proof, reducing the risk of electric shocks
Applications
• Automated lighting rigs
• Security systems
• Industrial control processes
• Medical imaging equipment
How do I spot problems when using this DIN rail power supply?
Check the integral bi-colour LED – it's stays green when everything's running smoothly and turns red when something's wrong.
How do I mount this power supply?
To suit your setup, you can clip it directly onto a DIN rail or wall-mount it with a bracket.
