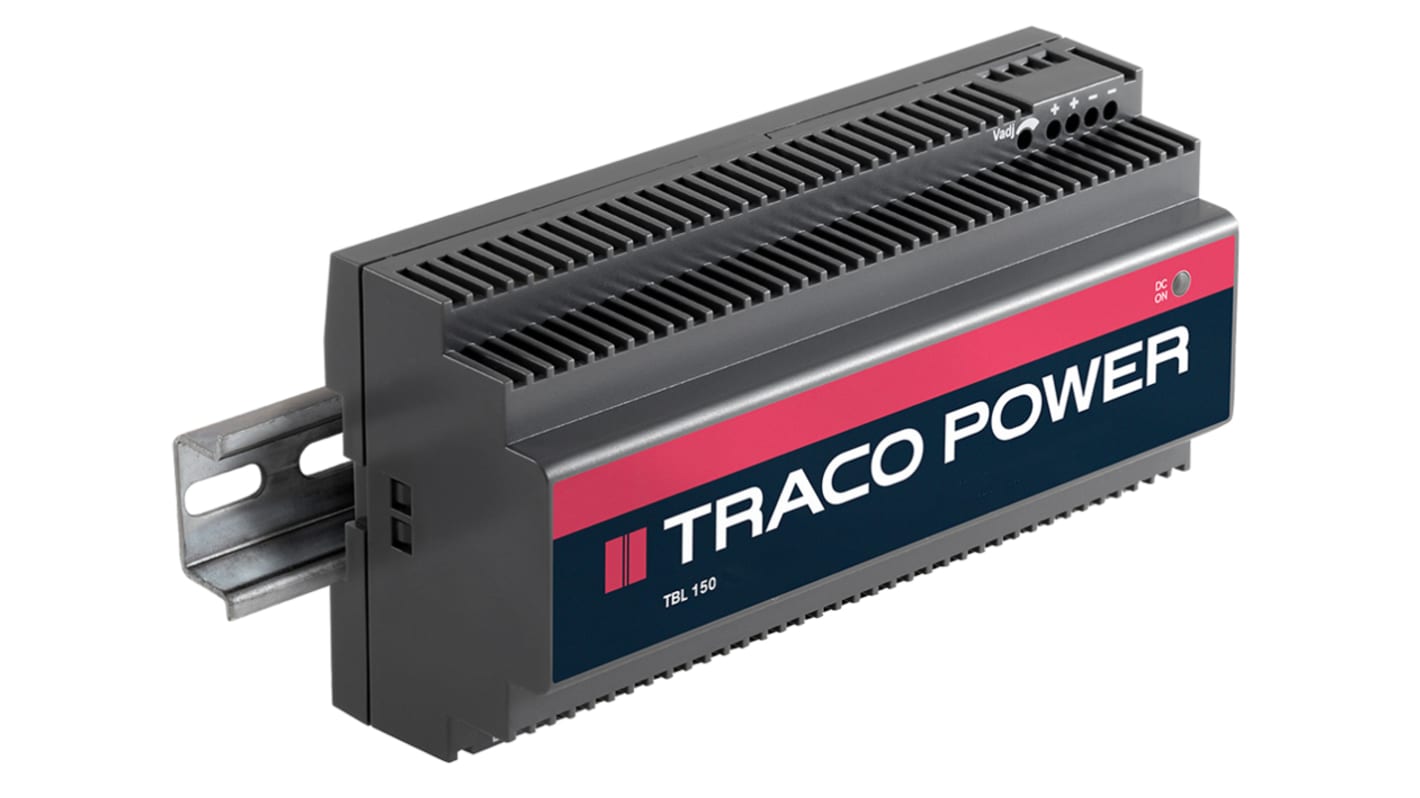

TRACOPOWER TBL Switched Mode DIN Rail Power Supply, 85 → 132V ac ac Input, 12V dc dc Output, 10A Output, 120W
- RS Stock No.:
- 667-0860
- Distrelec Article No.:
- 169-91-005
- Mfr. Part No.:
- TBL 150-112
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£140.58
(exc. VAT)
£168.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £140.58 |
*price indicative
- RS Stock No.:
- 667-0860
- Distrelec Article No.:
- 169-91-005
- Mfr. Part No.:
- TBL 150-112
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Series | TBL | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 85 → 132V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 12V dc | |
Output Current | 10A | |
Dimensions | 175 x 59.5 x 89.5mm | |
Depth | 59.5mm | |
Height | 89.5mm | |
Width | 59.5mm | |
Minimum Temperature | -25°C | |
Mounting Type | DIN Rail Mount | |
Efficiency | 84% | |
Load Regulation | ±1% | |
Standards Met | CE | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 12 → 16V | |
Ripple And Noise | 100mV Pk-Pk | |
Special Features | 3-Years Warranty | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Series TBL | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 85 → 132V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 12V dc | ||
Output Current 10A | ||
Dimensions 175 x 59.5 x 89.5mm | ||
Depth 59.5mm | ||
Height 89.5mm | ||
Width 59.5mm | ||
Minimum Temperature -25°C | ||
Mounting Type DIN Rail Mount | ||
Efficiency 84% | ||
Load Regulation ±1% | ||
Standards Met CE | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 12 → 16V | ||
Ripple And Noise 100mV Pk-Pk | ||
Special Features 3-Years Warranty | ||
- COO (Country of Origin):
- CN
Traco Power DIN Rail Power Supply, 84% Efficiency, ±1% Load Regulation - TBL Series - TBL 150-112
Boot up your system in a snap with this 120W DIN rail power supply from Traco Power. It's a heavy-duty option that brings large-scale equipment like industrial lighting, HVAC equipment and security systems to life. You can adjust the output between 12 and 16V DC to suit the needs of your setup. An 84% efficiency rating means minimal energy is wasted as heat, making this an energy-saving option. There's no need to worry about faults, as this unit stops short-circuits and overloads in their tracks to keep your network up and running.
Features & Benefits
• Operates safely at full load in demanding temperatures from -25°C to +70°C
• IP20-rated, so you can be sure it's safe to handle
• Red/green indicator lets you quickly check your equipment's status
• Screw terminal connection speeds up wiring
• IP20-rated, so you can be sure it's safe to handle
• Red/green indicator lets you quickly check your equipment's status
• Screw terminal connection speeds up wiring
Applications
• Factory automation
• Heavy engineering facilities
• Printing and binding works
• Heavy engineering facilities
• Printing and binding works
Does this power supply fit in standard wall-mounted control panels?
Yes. The unit fits like a glove in standard wall-mounted control panels commonly found in building automation settings, thanks to its module depth of just 55mm.
