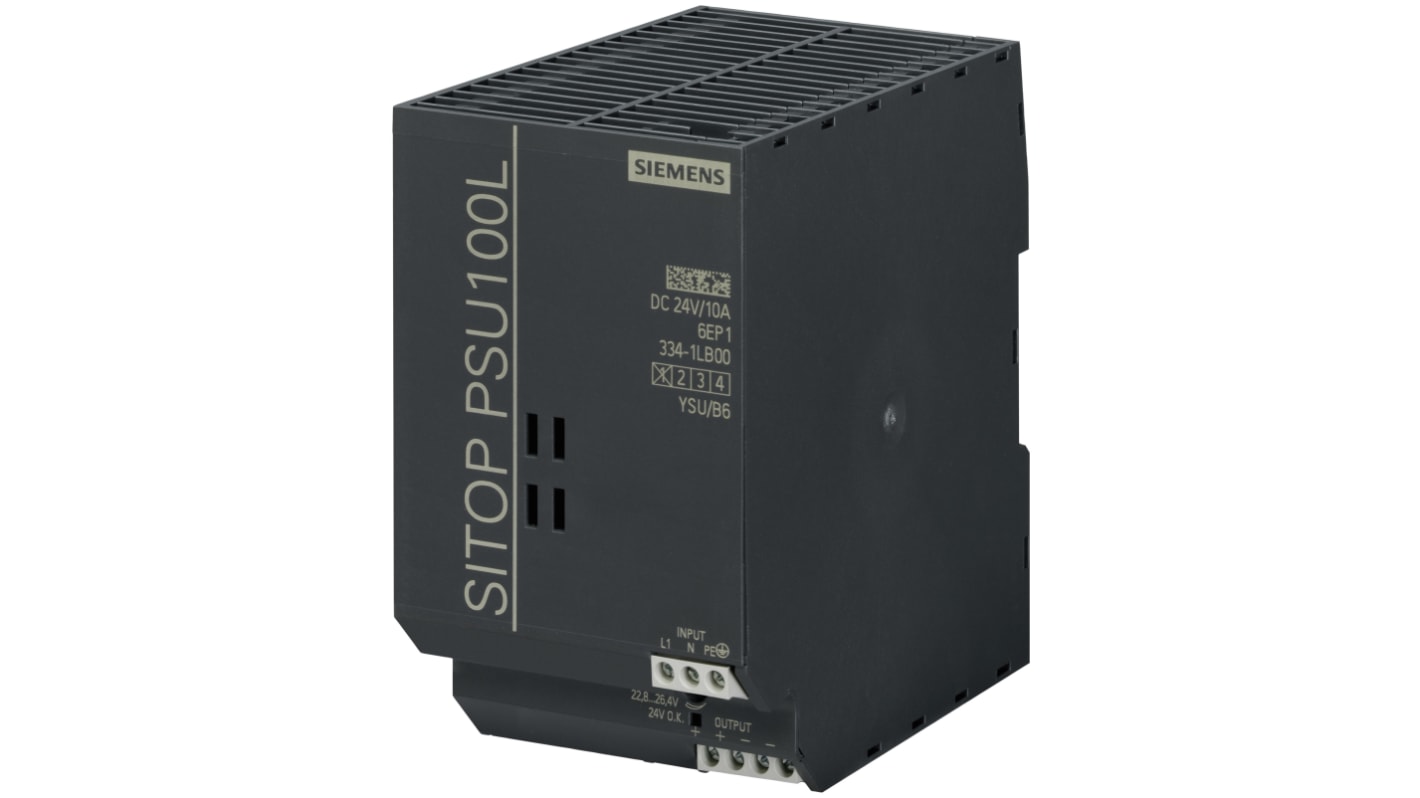

Siemens SITOP PSU100L Switched Mode DIN Rail Power Supply, 93 → 132V ac ac Input, 24V dc dc Output, 10A Output,
- RS Stock No.:
- 756-3943
- Distrelec Article No.:
- 169-88-817
- Mfr. Part No.:
- 6EP1334-1LB00
- Brand:
- Siemens
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£123.22
(exc. VAT)
£147.86
(inc. VAT)
- RS Stock No.:
- 756-3943
- Distrelec Article No.:
- 169-88-817
- Mfr. Part No.:
- 6EP1334-1LB00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Series | SITOP PSU100L | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 93 → 132V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 10A | |
Dimensions | 125 x 70 x 125mm | |
Width | 70mm | |
Depth | 120mm | |
Height | 125mm | |
Efficiency | 89% | |
Standards Met | CE, CSA Certified, UL | |
Minimum Temperature | 0°C | |
Maximum Temperature | +60°C | |
MTBF | 2333396h | |
Mounting Type | DIN Rail Mount | |
Output Voltage Adjustment Range | 22.8 → 26.4V | |
Ripple And Noise | 150mV Pk-Pk | |
Load Regulation | 0.5% | |
Select all | ||
---|---|---|
Brand Siemens | ||
Series SITOP PSU100L | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 93 → 132V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Dimensions 125 x 70 x 125mm | ||
Width 70mm | ||
Depth 120mm | ||
Height 125mm | ||
Efficiency 89% | ||
Standards Met CE, CSA Certified, UL | ||
Minimum Temperature 0°C | ||
Maximum Temperature +60°C | ||
MTBF 2333396h | ||
Mounting Type DIN Rail Mount | ||
Output Voltage Adjustment Range 22.8 → 26.4V | ||
Ripple And Noise 150mV Pk-Pk | ||
Load Regulation 0.5% | ||
- COO (Country of Origin):
- RO
Siemens DIN Rail Power Supply, 50/60Hz Frequency, Single Output - SITOP PSU100L Series - 6EP1334-1LB00
Use this reliable DIN rail power supply from Siemens to energise devices in your system. It's a single-phase unit that converts AC to DC, which is essential for delivering steady current to industrial equipment. The unit handles a maximum voltage of 230V AC, meaning you can directly connect it to your mains supply without the need for a step-down transformer. An IP20 rating indicates this device is touch-proof and resistant to dust or objects that are over 12mm in size, so can withstand demanding conditions. You'll find it used in the automotive and telecommunication industries.
• Operating temperature range between 0°C and +60°C for use in demanding conditions
• 24V DC output voltage for use in light-duty to medium-duty applications
• DIN rail mounting for easy and tool-free installation
• 89% efficiency means this unit will supply the rated output voltage without failure
• LED display for visual indication of operating status
• 24V DC output voltage for use in light-duty to medium-duty applications
• DIN rail mounting for easy and tool-free installation
• 89% efficiency means this unit will supply the rated output voltage without failure
• LED display for visual indication of operating status
What's the meaning of 'switch mode' in power supply units?
Switch mode means the power supply unit uses a switching regulator to efficiently convert DC or AC sources to DC loads.
