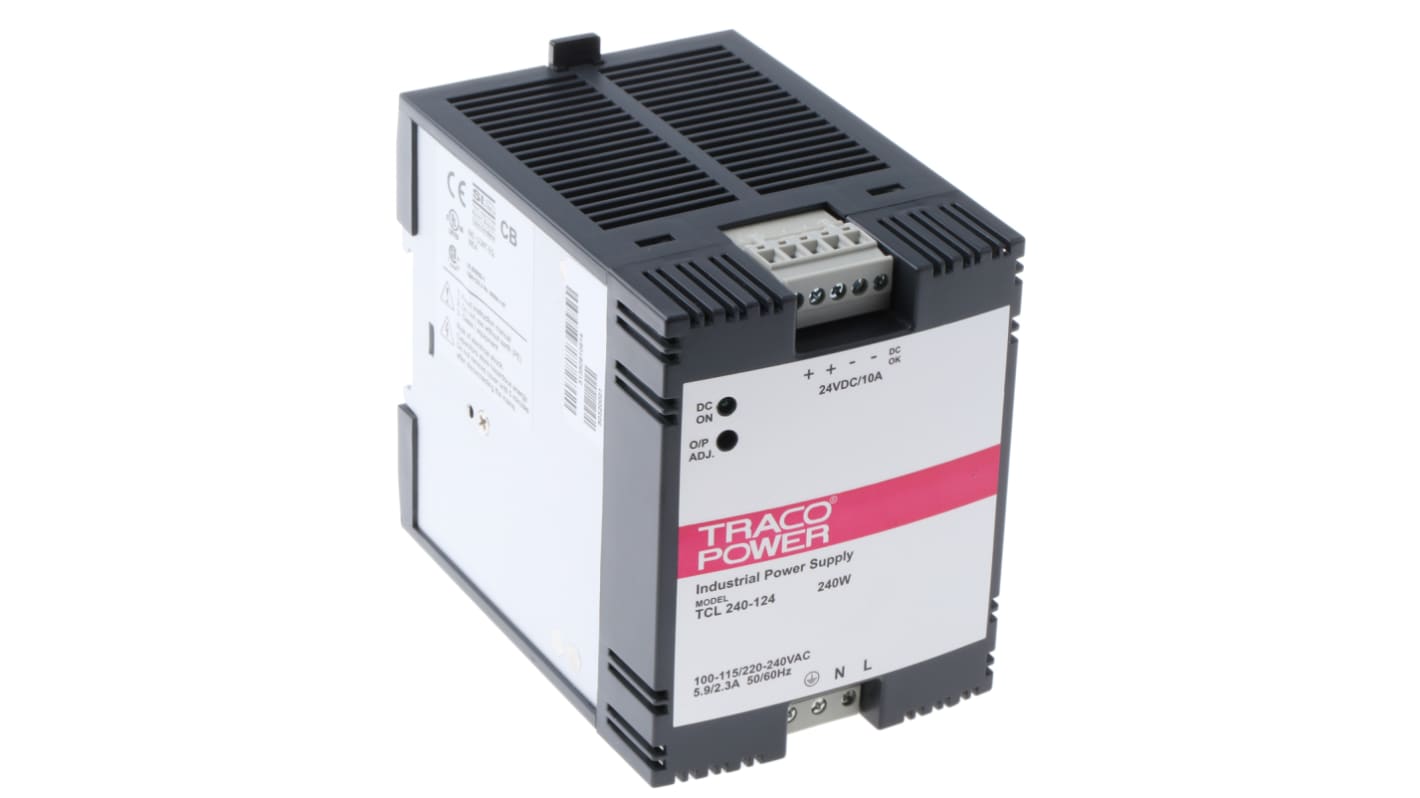

TRACOPOWER TCL Switched Mode DIN Rail Power Supply, 85 → 132V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS Stock No.:
- 667-0838
- Distrelec Article No.:
- 169-98-696
- Mfr. Part No.:
- TCL 240-124
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£200.34
(exc. VAT)
£240.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £200.34 |
*price indicative
- RS Stock No.:
- 667-0838
- Distrelec Article No.:
- 169-98-696
- Mfr. Part No.:
- TCL 240-124
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Series | TCL | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 85 → 132V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 10A | |
Dimensions | 125 x 85 x 110mm | |
Height | 110mm | |
Width | 85mm | |
Depth | 125mm | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 24 → 28V | |
Ripple And Noise | 50mV Pk-Pk | |
Mounting Type | DIN Rail Mount | |
Load Regulation | ±2.5% | |
Efficiency | 88% | |
Minimum Temperature | -10°C | |
Standards Met | EN 60950-1 | |
MTBF | > 1.38Mh | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Series TCL | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 132V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Dimensions 125 x 85 x 110mm | ||
Height 110mm | ||
Width 85mm | ||
Depth 125mm | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 24 → 28V | ||
Ripple And Noise 50mV Pk-Pk | ||
Mounting Type DIN Rail Mount | ||
Load Regulation ±2.5% | ||
Efficiency 88% | ||
Minimum Temperature -10°C | ||
Standards Met EN 60950-1 | ||
MTBF > 1.38Mh | ||
- COO (Country of Origin):
- CN
Traco Power DIN Rail Power Supply, Single Electrical Phase, 10A Output Current - TCL Series - TCL 240-124
Choose this DIN rail power supply from Traco Power to give your setup a boost. Its 240W power rating delivers super-charged performance to get your industrial job done and dusted. Inbuilt overload and short-circuit protection stops hazardous surges from getting the better of your equipment. This is an ideal option for use with low-power applications, thanks to its 24V DC output. Compact dimensions of 110 (H) x 85 (W) x 125mm (D) mean it slots neatly into a small enclosure.
Features and Benefits
• IP20 rating indicates it's touch-proof and resistant to dust or particles greater than 12mm
• Self-extinguishing housing means burning subsides within 10 seconds
• Mean time between failures of more than 20 million hours for long-term reliability
• 86% efficiency means it's an energy-conscious choice
• Light 950g weight doesn't add excess load to your setup
• Self-extinguishing housing means burning subsides within 10 seconds
• Mean time between failures of more than 20 million hours for long-term reliability
• 86% efficiency means it's an energy-conscious choice
• Light 950g weight doesn't add excess load to your setup
Applications
• Industrial automation
• Construction industry
• Power supplies
• Medical equipment
• Construction industry
• Power supplies
• Medical equipment
Can I use this power supply in harsh industrial conditions?
EN
IEC
IP20 rated
SELV
UL approved
IEC
IP20 rated
SELV
UL approved
As it operates safely in a broad temperature range between -10°C and +70°C, it's ideal for harsh industrial conditions.
Does this unit tolerate humid settings?
Yes. This product functions in relative humidity up to 95%, so it's suitable for use in damp conditions.
