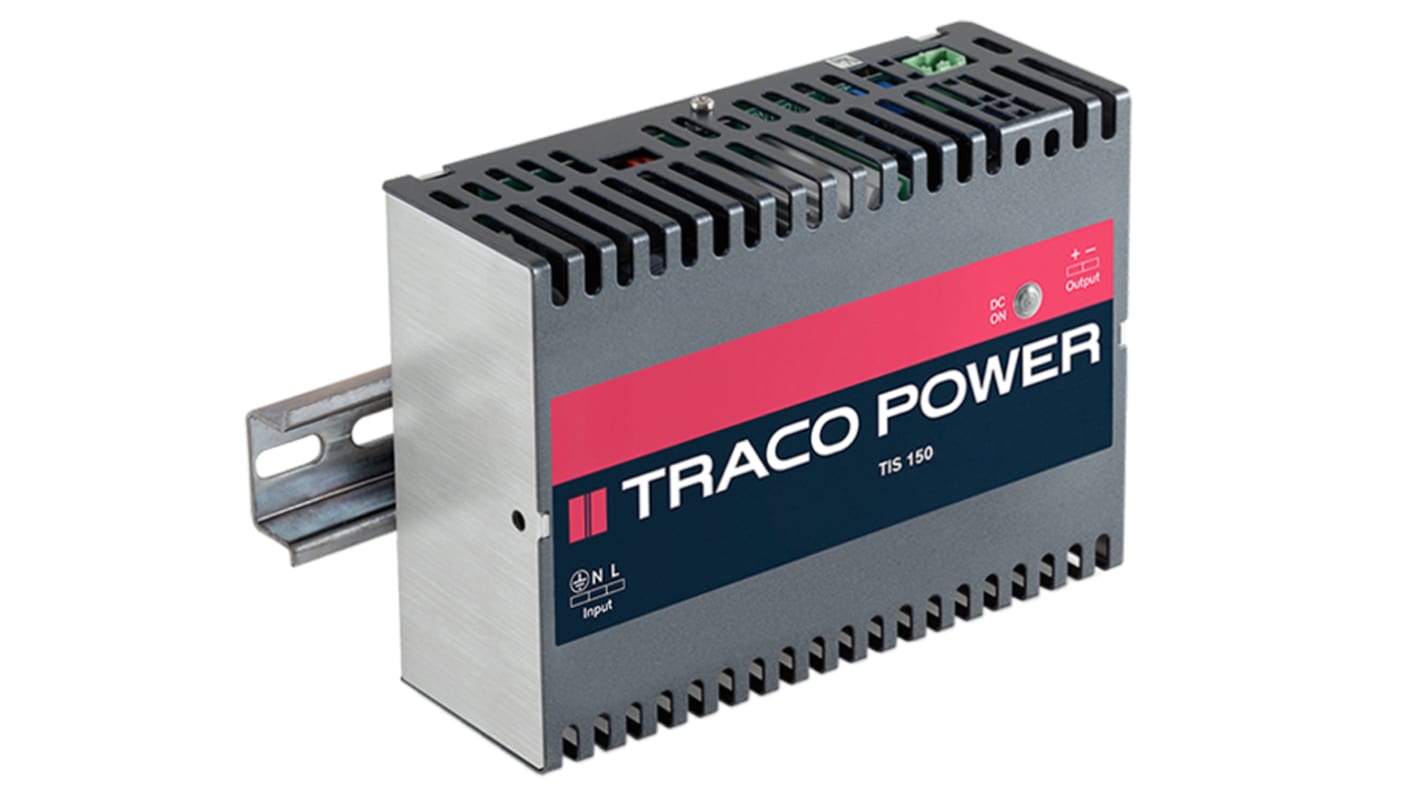

TRACOPOWER TIS Switched Mode DIN Rail Power Supply, 93 → 132V ac ac Input, 48V dc dc Output, 3A Output, 150W
- RS Stock No.:
- 252-8724
- Mfr. Part No.:
- TIS 150-148
- Brand:
- TRACOPOWER
16 In stock - FREE next working day delivery available
5 available from Europe for delivery within 2 working day(s).
Price Each
£238.04
(exc. VAT)
£285.65
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £238.04 |
| 10 - 14 | £226.14 |
| 15 + | £214.24 |
- RS Stock No.:
- 252-8724
- Mfr. Part No.:
- TIS 150-148
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
Product Details
50 to 600W TIS Series
High quality metal cased switch mode power supplies
Designed for symmetrical 35mm DIN-rail
Ideal for process control & machine tool applications
EMC immunity to EN50082-2
EMI to EN55011 Class B, FCC level B
Low profile
Adjustable output voltage
Fully regulated output, short circuit protection/current limit
Over-voltage protection
Very low ripple and noise
DC output OK LED indicator
Plugable screw terminals (included). Note: DIN-rail clip extends 7mm beyond depth of unit
Designed for symmetrical 35mm DIN-rail
Ideal for process control & machine tool applications
EMC immunity to EN50082-2
EMI to EN55011 Class B, FCC level B
Low profile
Adjustable output voltage
Fully regulated output, short circuit protection/current limit
Over-voltage protection
Very low ripple and noise
DC output OK LED indicator
Plugable screw terminals (included). Note: DIN-rail clip extends 7mm beyond depth of unit
Note
Derating 2% per °C above 50°C
Standards
IEC60950, EN60950, UL60950, UL508C
Approvals
UL listed
Approvals
UL Recognised
Standards
IEC, EN, SELV, UL
Specifications
Attribute | Value |
|---|---|
| Series | TIS |
| Type | Switched Mode |
| Electrical Phase | 1 |
| AC or DC Input Voltage | ac |
| Input Voltage | 93 → 132V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 48V dc |
| Output Current | 3A |
| Power Rating | 150W |
| Number of Outputs | 1 |
| Dimensions | 157 x 56.7 x 114.6mm |
| Width | 56.7mm |
| Depth | 56.7mm |
| Height | 114.6mm |
| Ripple And Noise | 50mV Pk-Pk |
| MTBF | 420000h |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Load Regulation | ±1% |
